Thermistor and Breaker

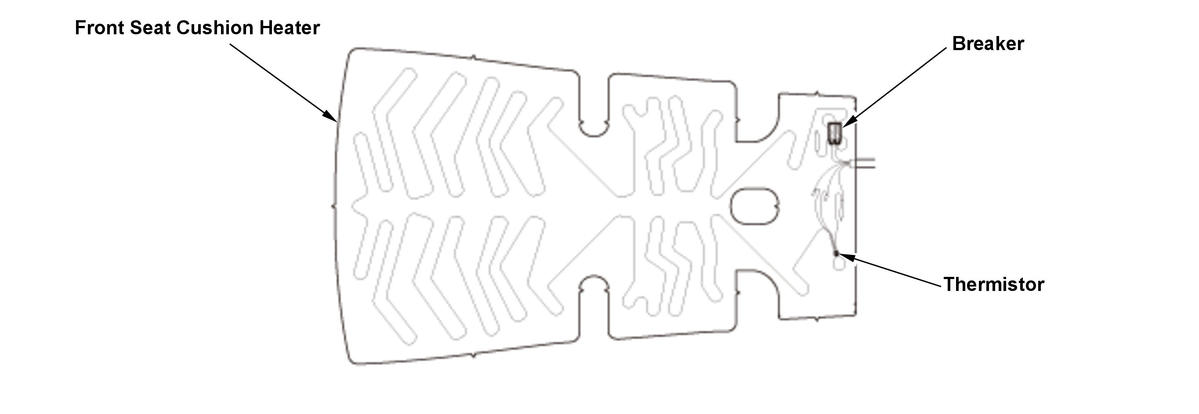

Seat cushion heater has a thermistor and breaker. The thermistor and breaker are protecting an overheat and seat heater circuit. Value of the thermistor is input to the control unit.
The seat heater temperature is controlled by breaker ON and OFF condition.
| ON | OFF | |
|---|---|---|
| Front Seat Cushion Breaker | 104 - 131 °F (40 - 55 °C) | 167 - 185 °F (75 - 85 °C) |
