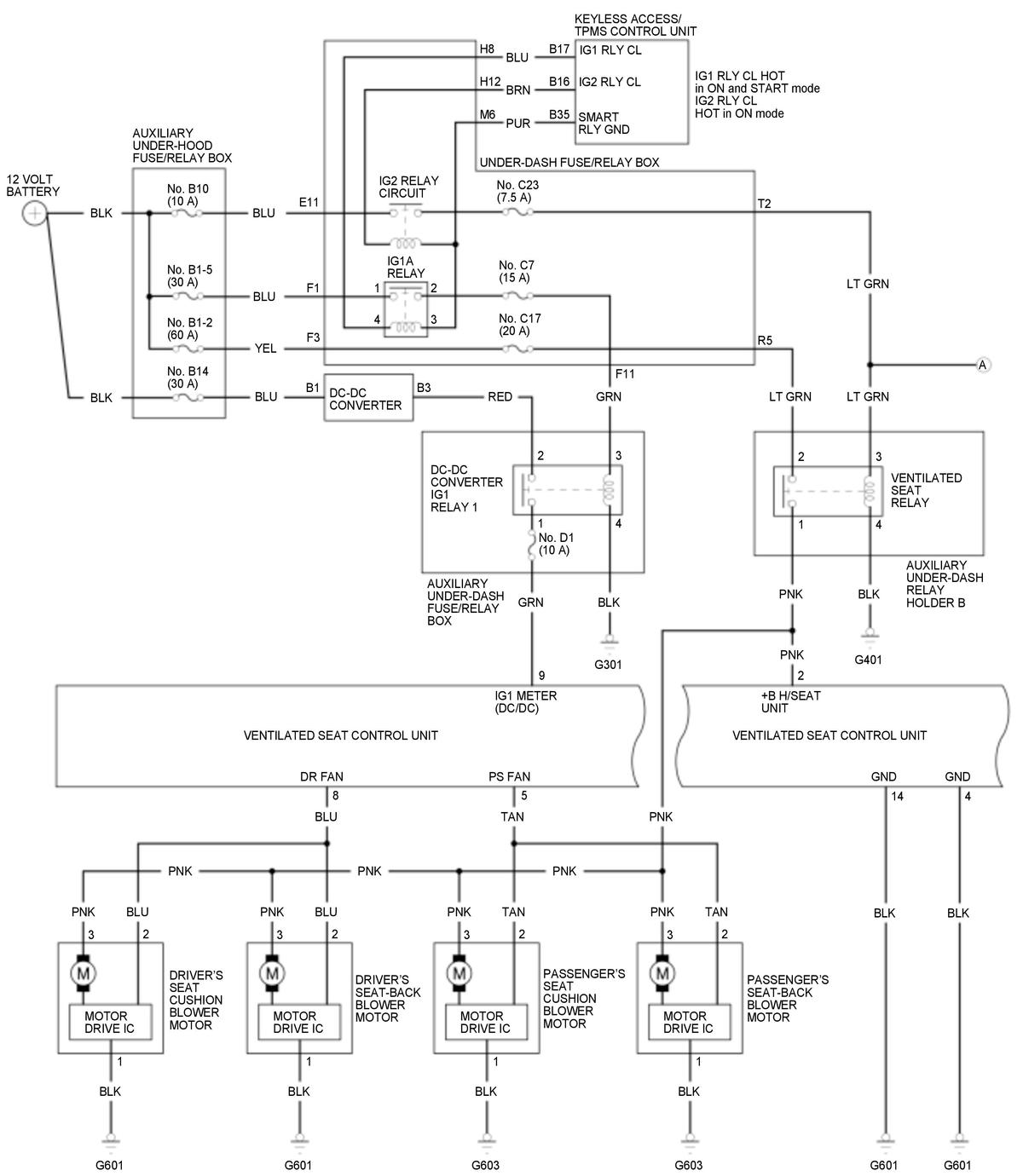

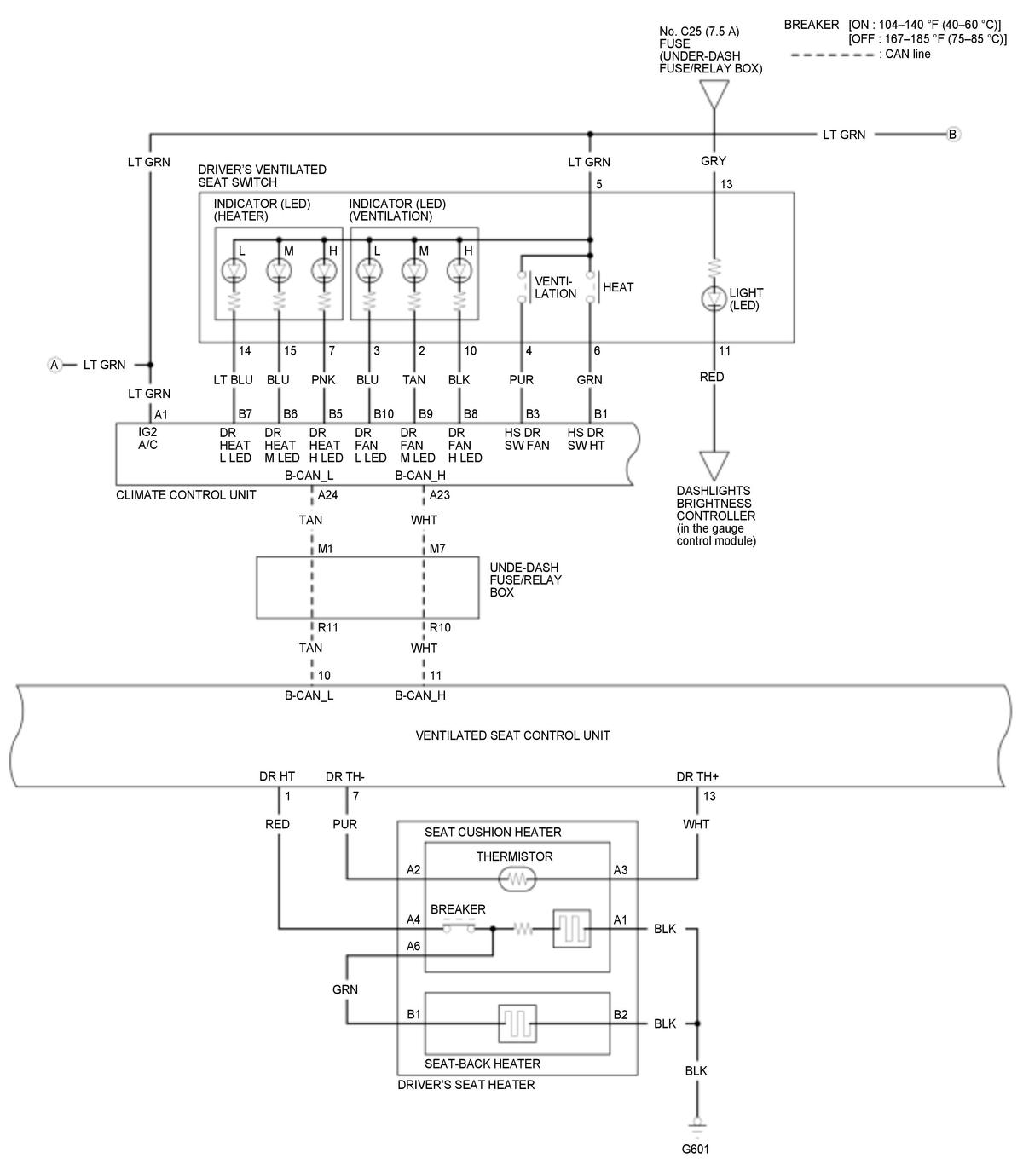

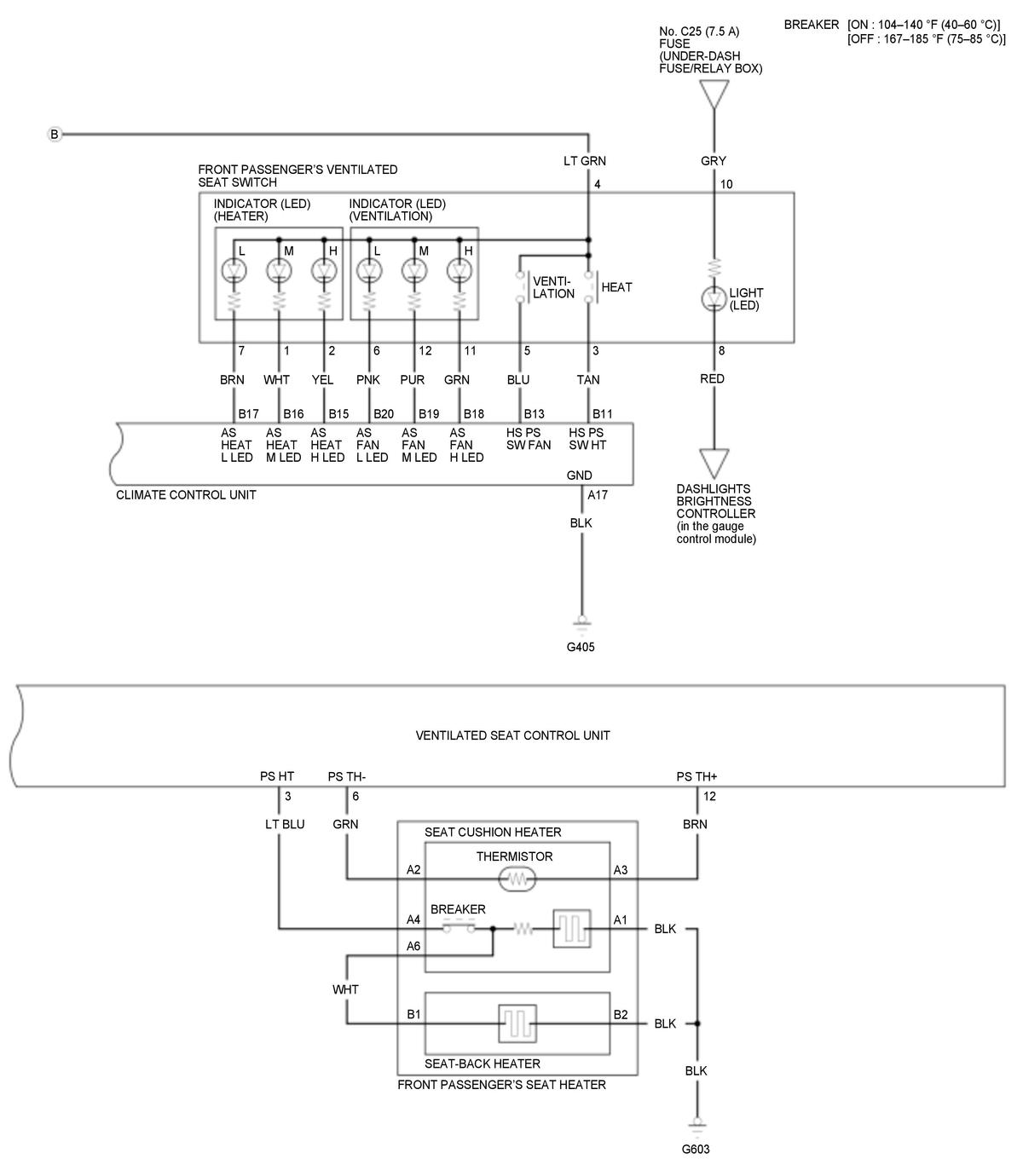

Home >> Honda >> 2021 >> Pilot Special Edition, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Seats >> Seats - Testing & Troubleshooting >> Circuit Diagram >> Ventilated Seats (2019 2020 2021)
