LEMON Manuals
: Even more car manuals for everyone
Home
>>
Honda
>>
2021
>>
Pilot Special Edition, AWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Seats
>>
Seats - Testing & Troubleshooting
>>

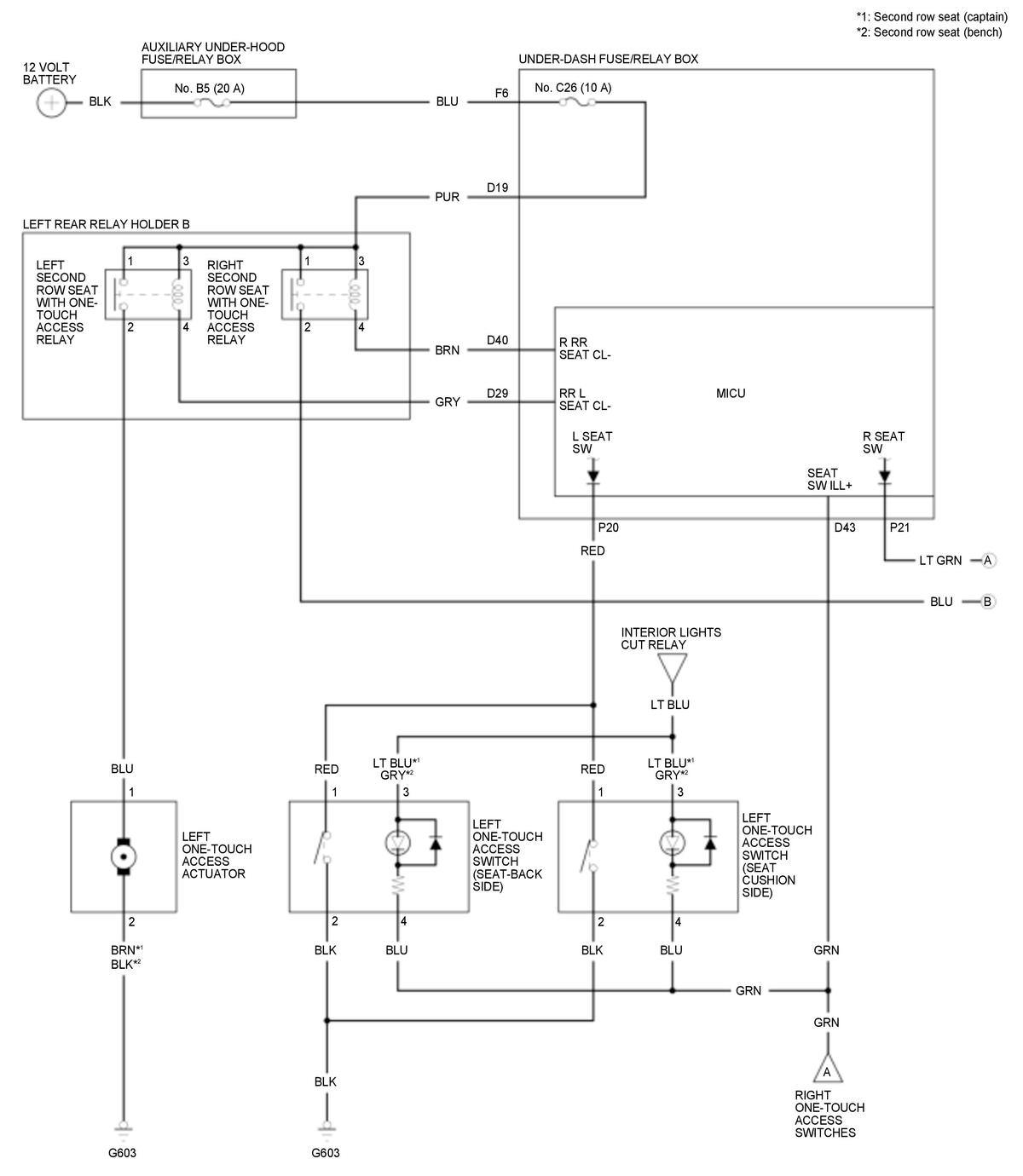

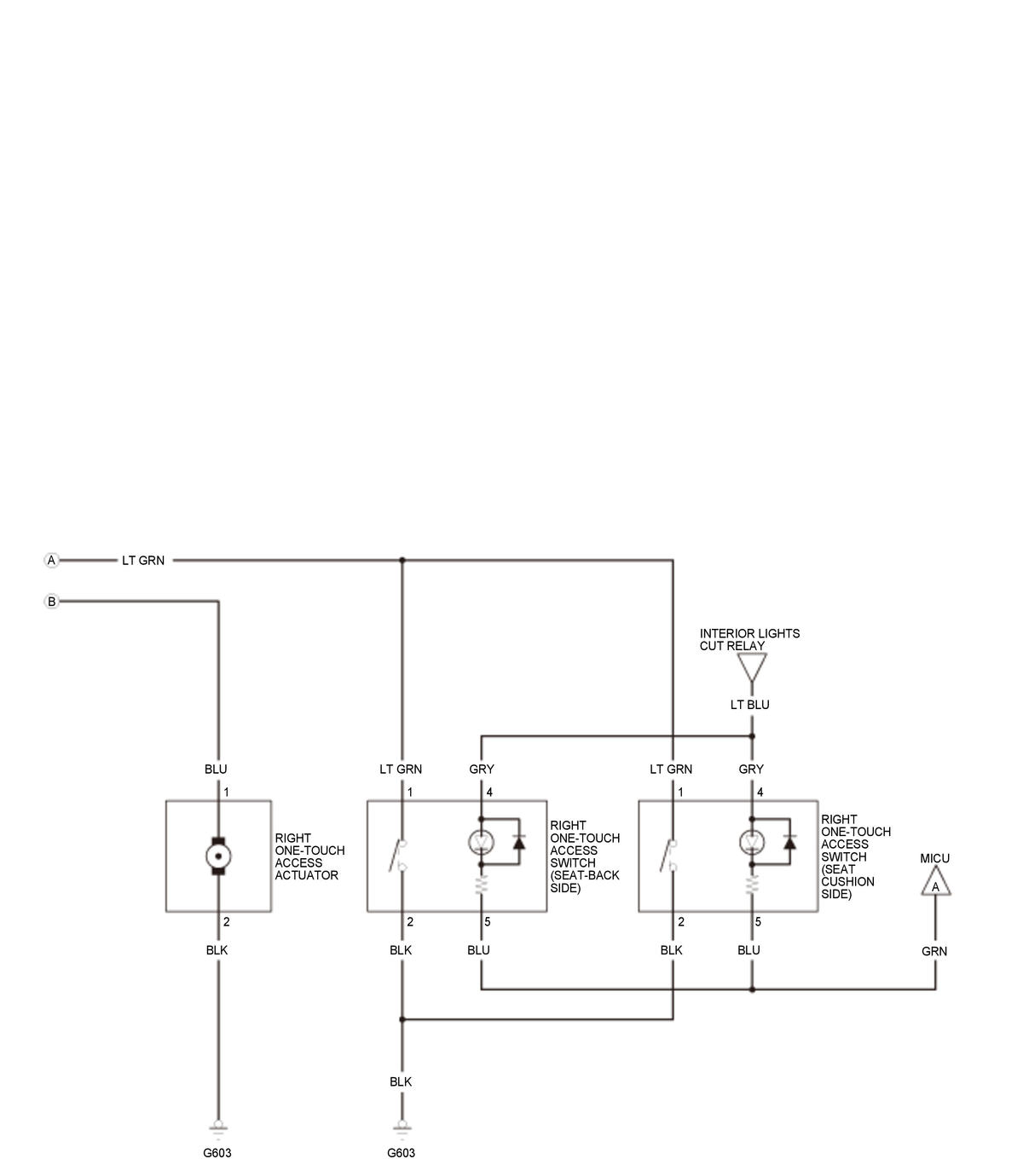

Circuit Diagram
>>
Second Row Seat With One-Touch Access (2019 2020 2021)
Second Row Seat With One-Touch Access (2019 2020 2021)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
