Pilot Special Edition, AWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Seats
>>
Seats - Testing & Troubleshooting
>>

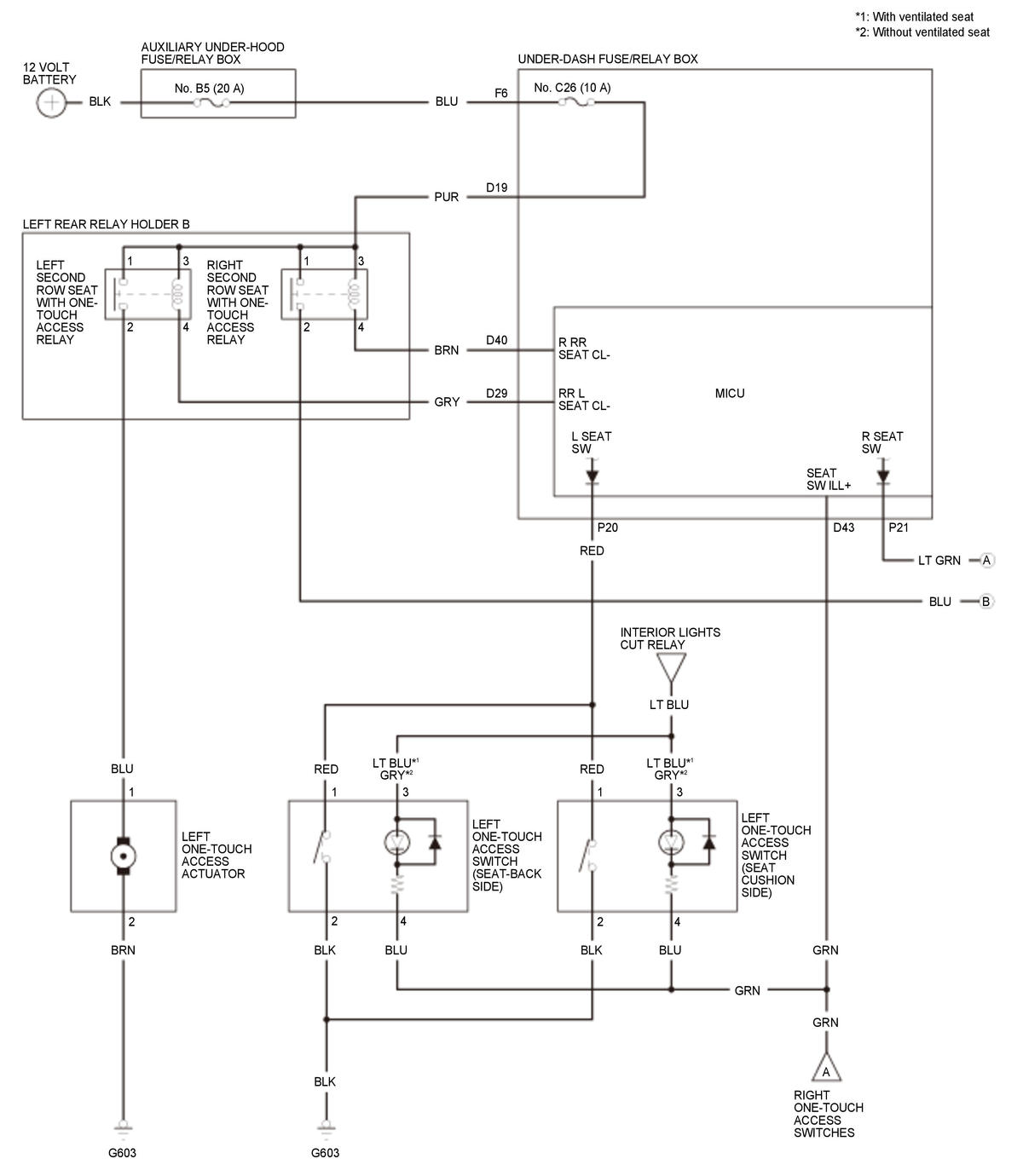

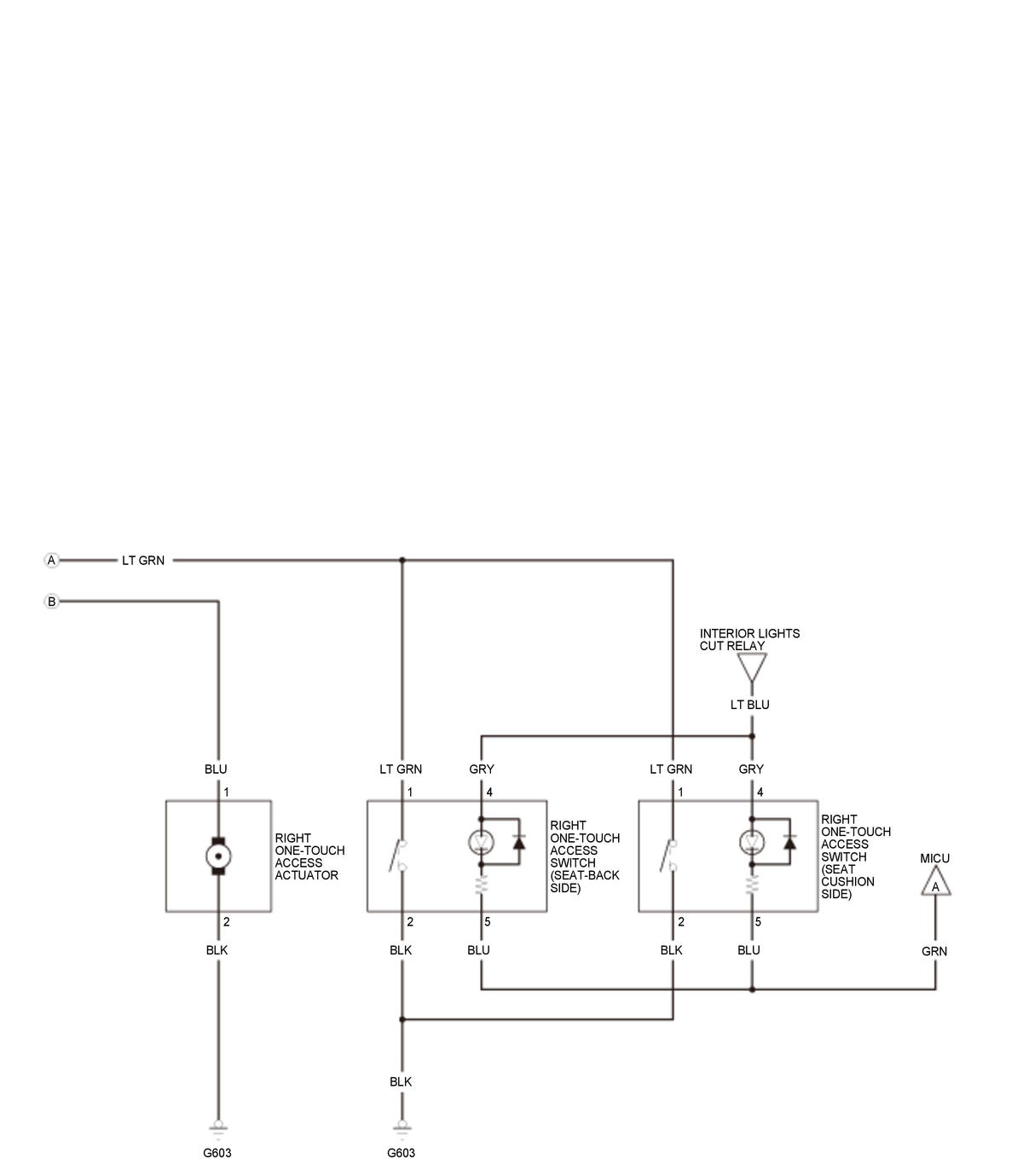

Circuit Diagram
>>
Second Row Seat With One-Touch Access (2016 2017 2018)
Second Row Seat With One-Touch Access (2016 2017 2018)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
