Removal and Installation

  1. Second Row Seat - Remove - Go to: Second Row Seat Removal and Installation (Captain)
  2. Second Row Seat Recline Cover - Remove - Go to: Second Row Seat Recline Cover Removal and Installation (Captain)
  3. Second Row Seat Armrest - Remove - Go to: Second Row Seat Armrest Removal and Installation (Captain)
  4. Second Row Seat-Back Cover - Remove - Go to: Second Row Seat-Back Cover Removal and Installation (Captain)
  5. Second Row Seat Cushion Cover - Remove - Go to: Second Row Seat Cushion Cover Removal and Installation (Captain)
  6. Third Row Seat Access Cable - Remove
    GHH312156Courtesy of HONDA, U.S.A., INC.

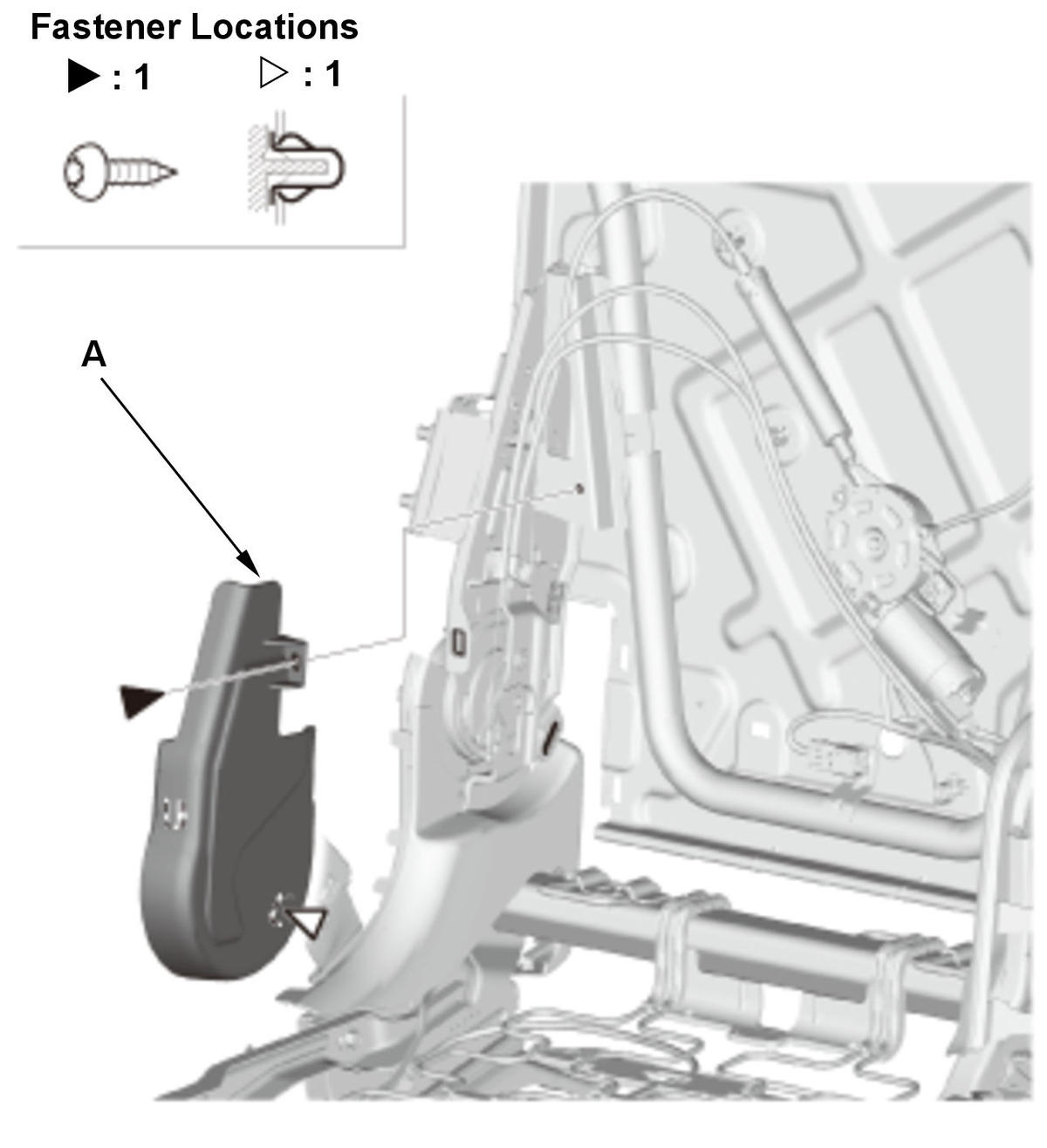

    		 1. Remove the screw, using a TORX T20 bit.

    2. Remove the recline upper inner cover (A).
    GHH312157Courtesy of HONDA, U.S.A., INC.

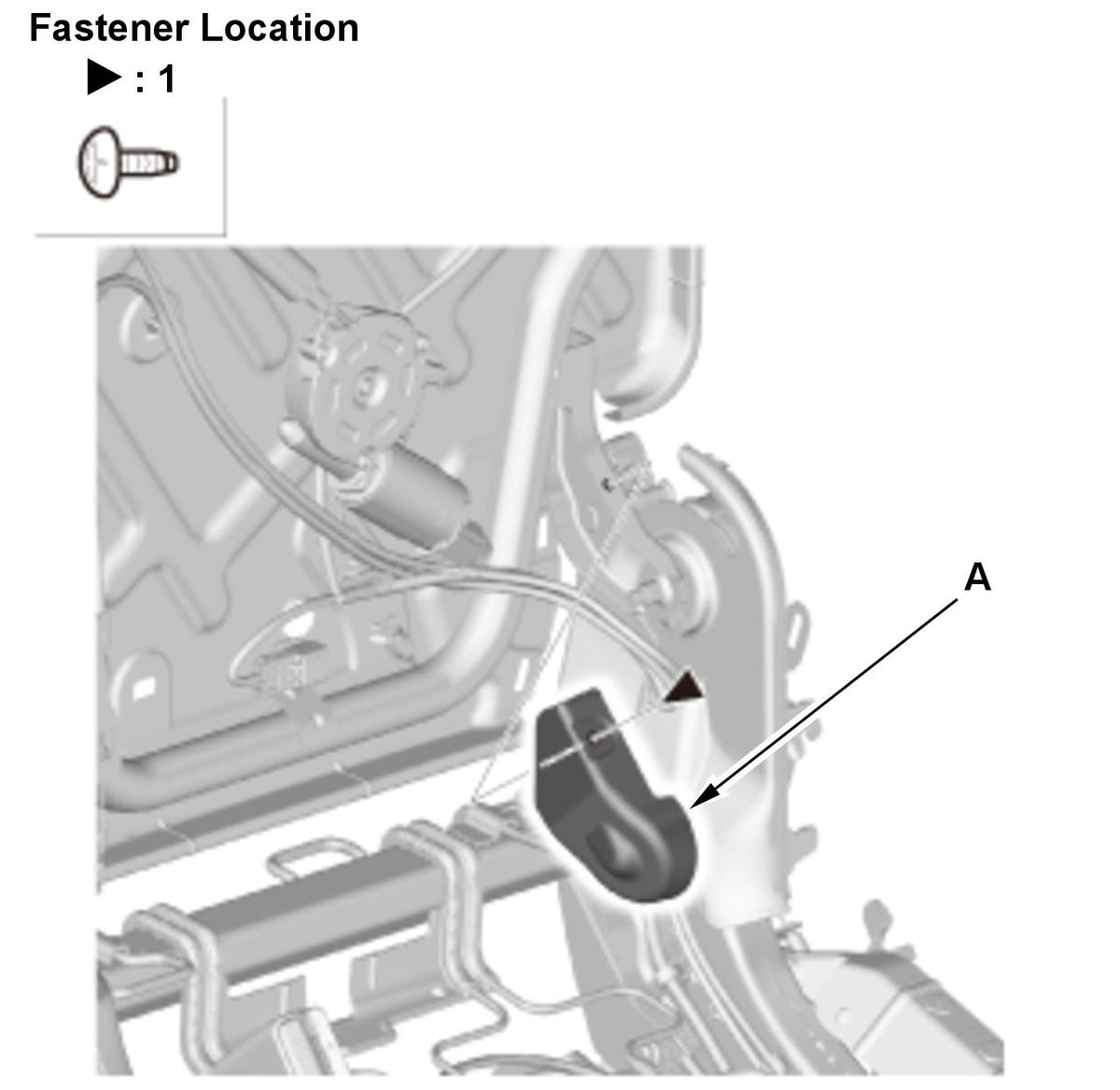

    		 3. Remove the pivot cover (A).
    GHH312158Courtesy of HONDA, U.S.A., INC.

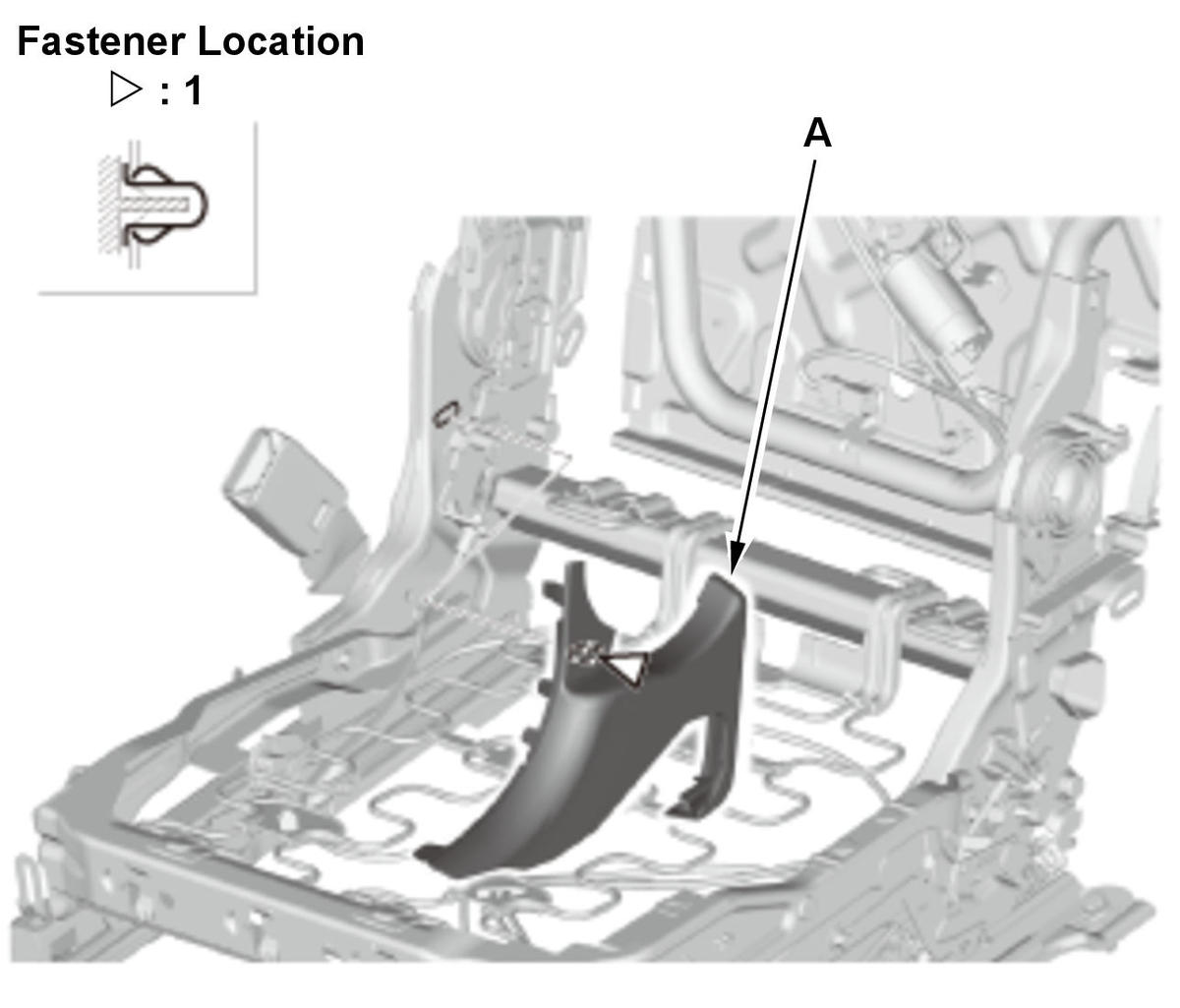

    		 4. Remove the recline inner cover (A).
    GHH312159Courtesy of HONDA, U.S.A., INC.

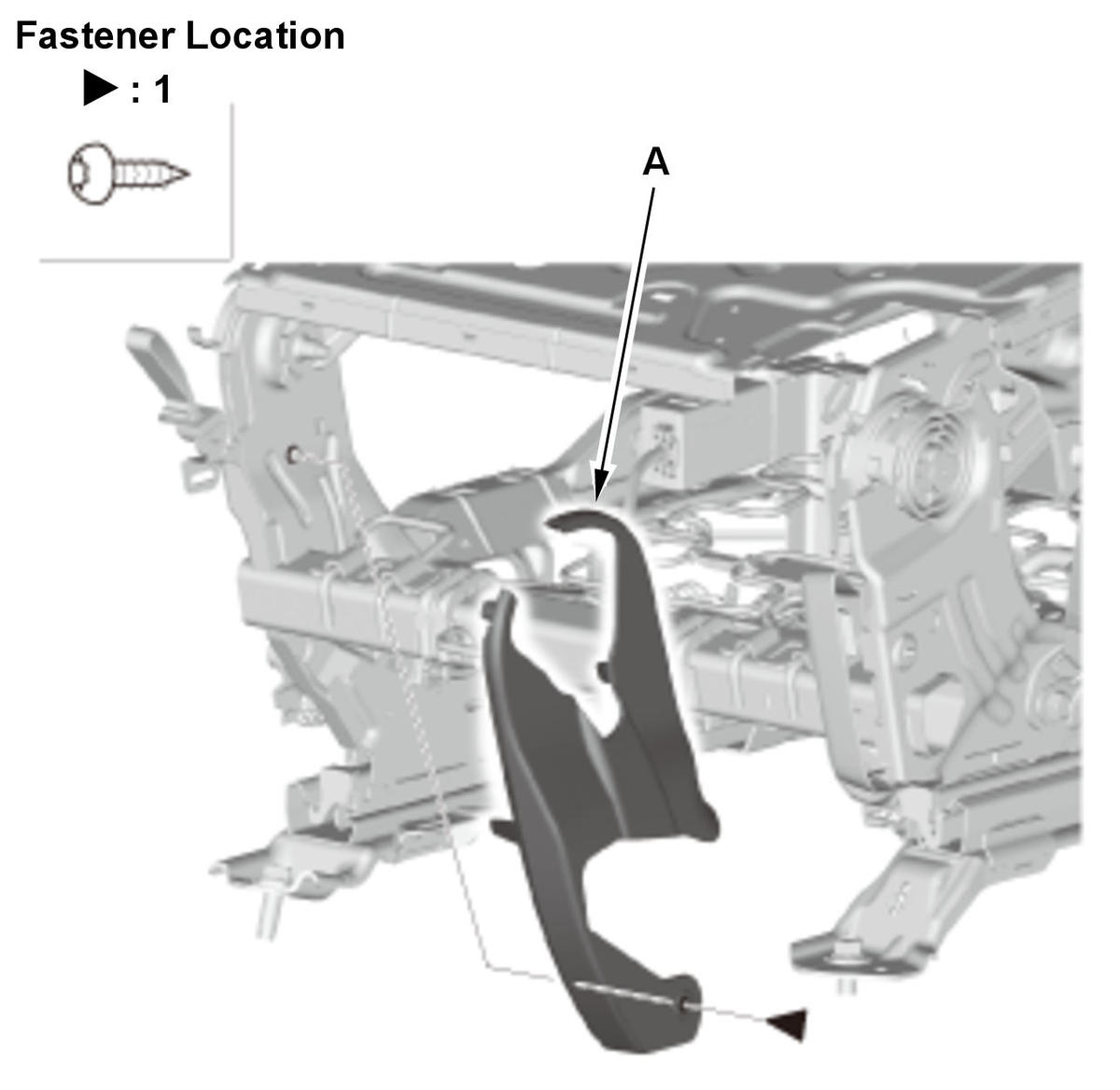

    		 5. Fold down the second seat-back to the front side.

    6. Remove the screw, using a TORX T20 bit.

    7. Remove the recline outer inner cover (A).
    GHH312160GHH312161Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH312160GHH312161Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

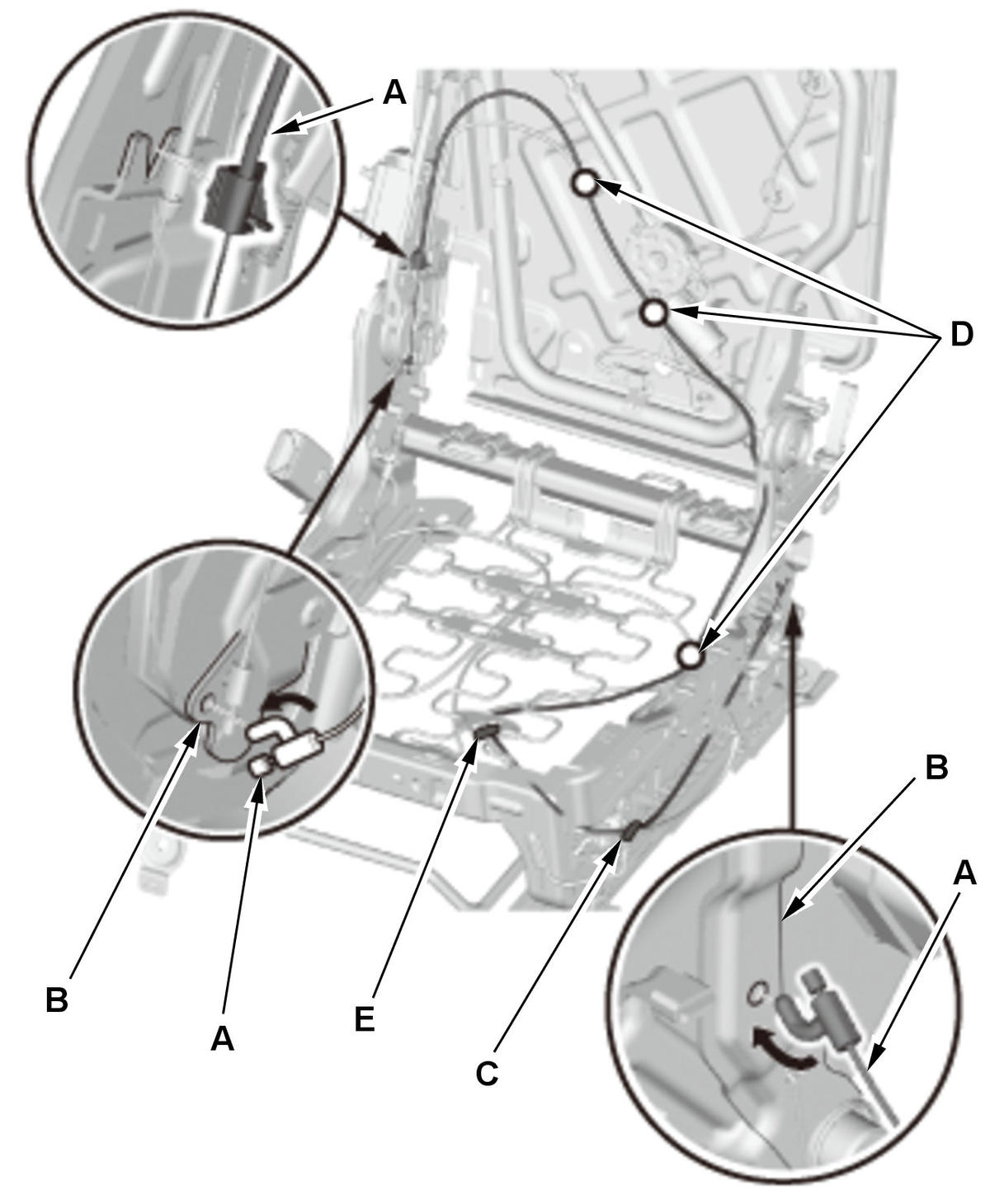

    		 8. Disconnect the third row seat access cable (A) from the cable brackets (B).

    9. Release the wire tie (C), the clips (D), and the hooks (E), and then remove the access cable.
  7. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
