Removal and Installation

Second Row Seat - Remove - Go to: Second Row Seat Removal and Installation (Bench)

Second Row Seat Recline Inner Cover - Remove

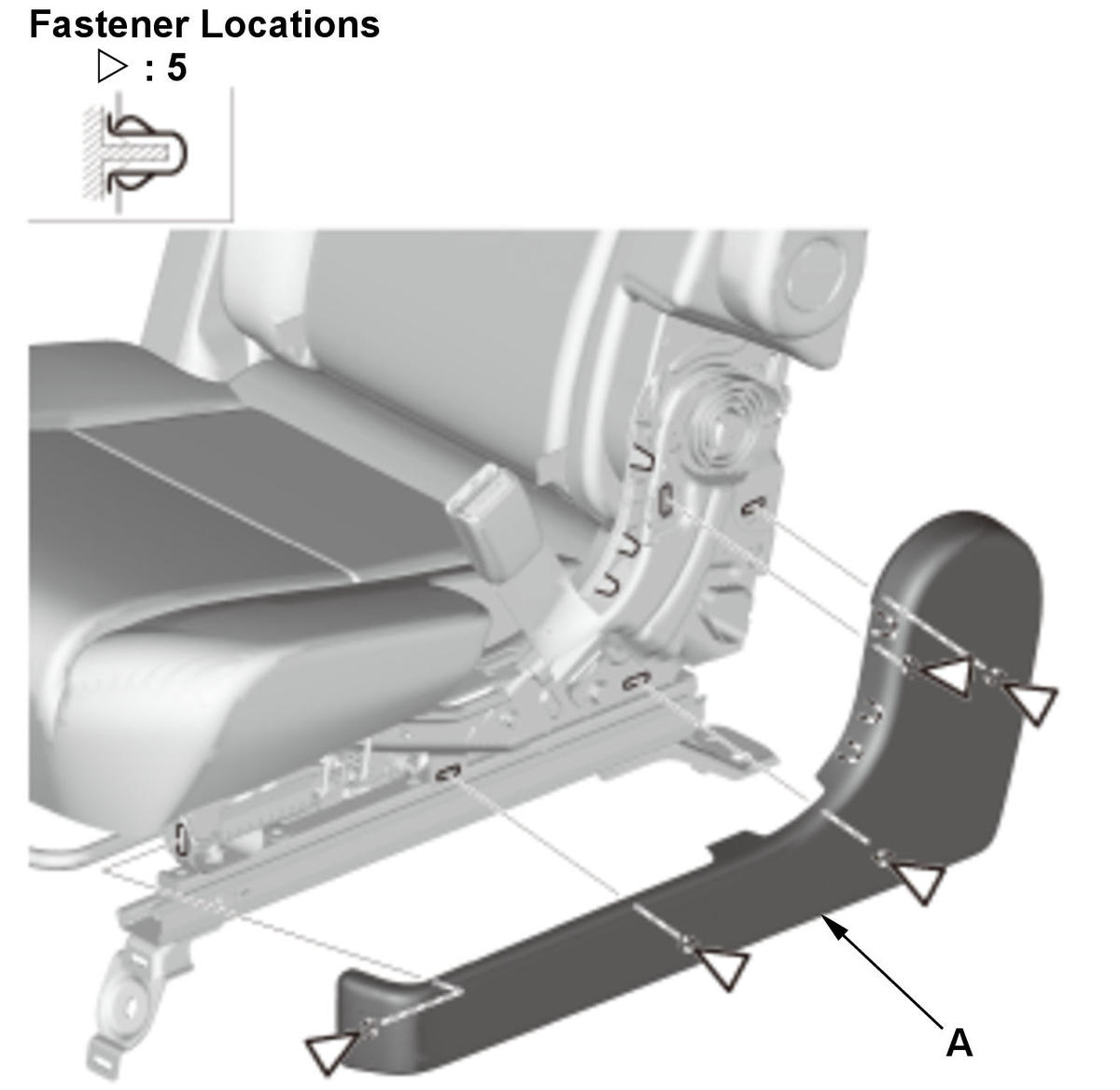

Left seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

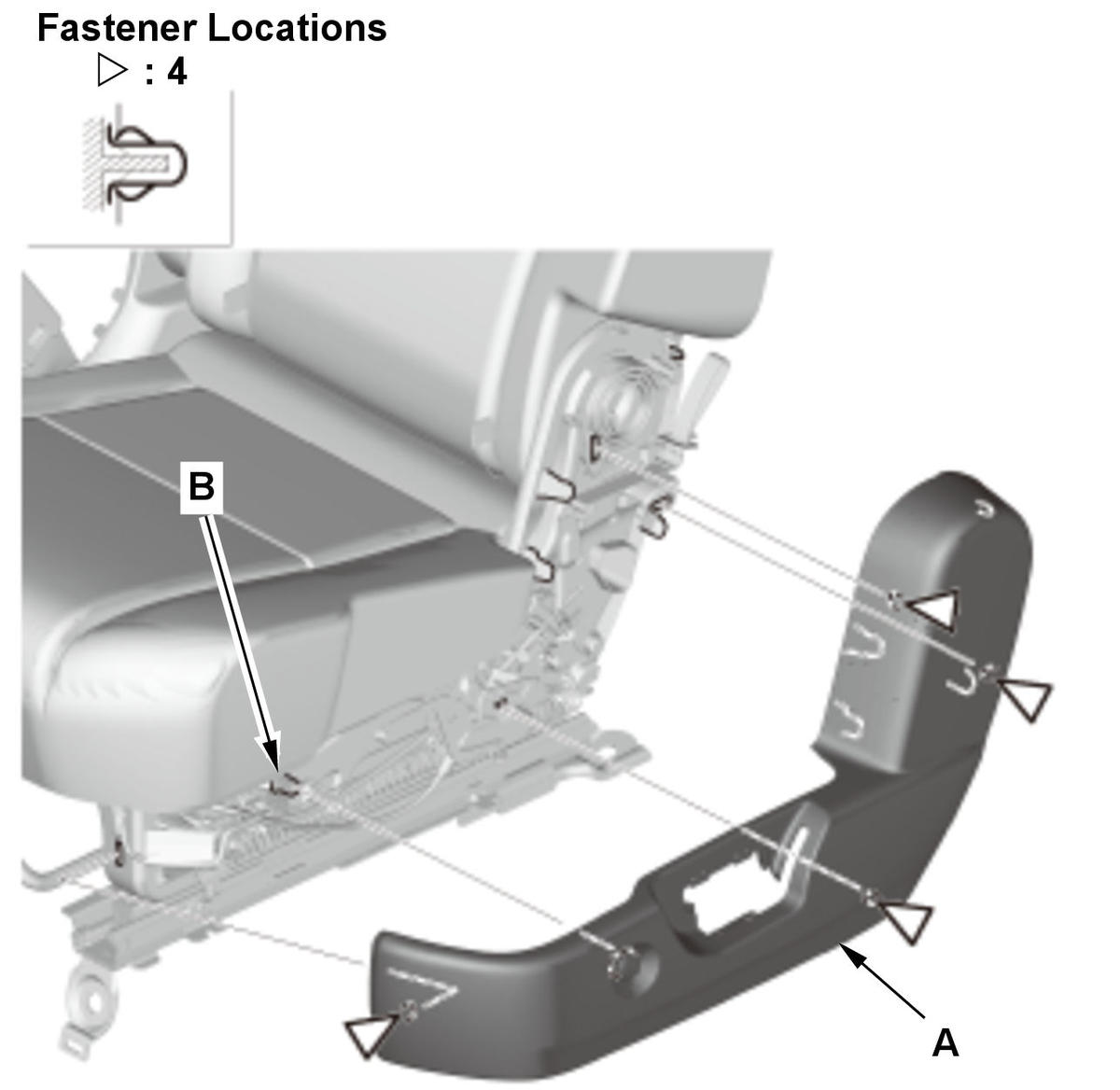

Right seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Remove the second row seat recline inner cover (A).

Second Row Seat Recline Outer Cover - Remove

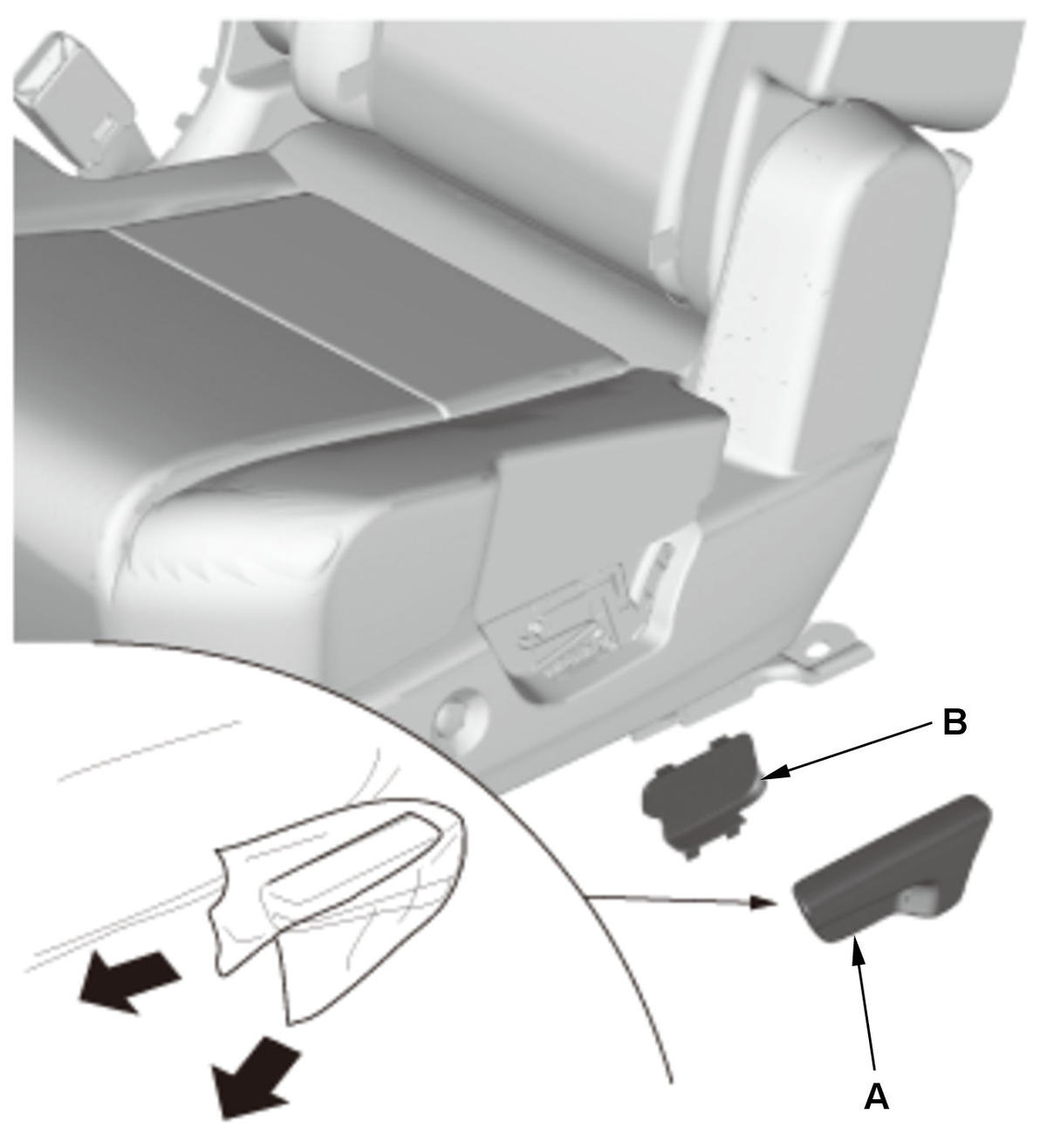

Courtesy of HONDA, U.S.A., INC.

1. Remove the recline knob (A).

2. Remove the cap (B).

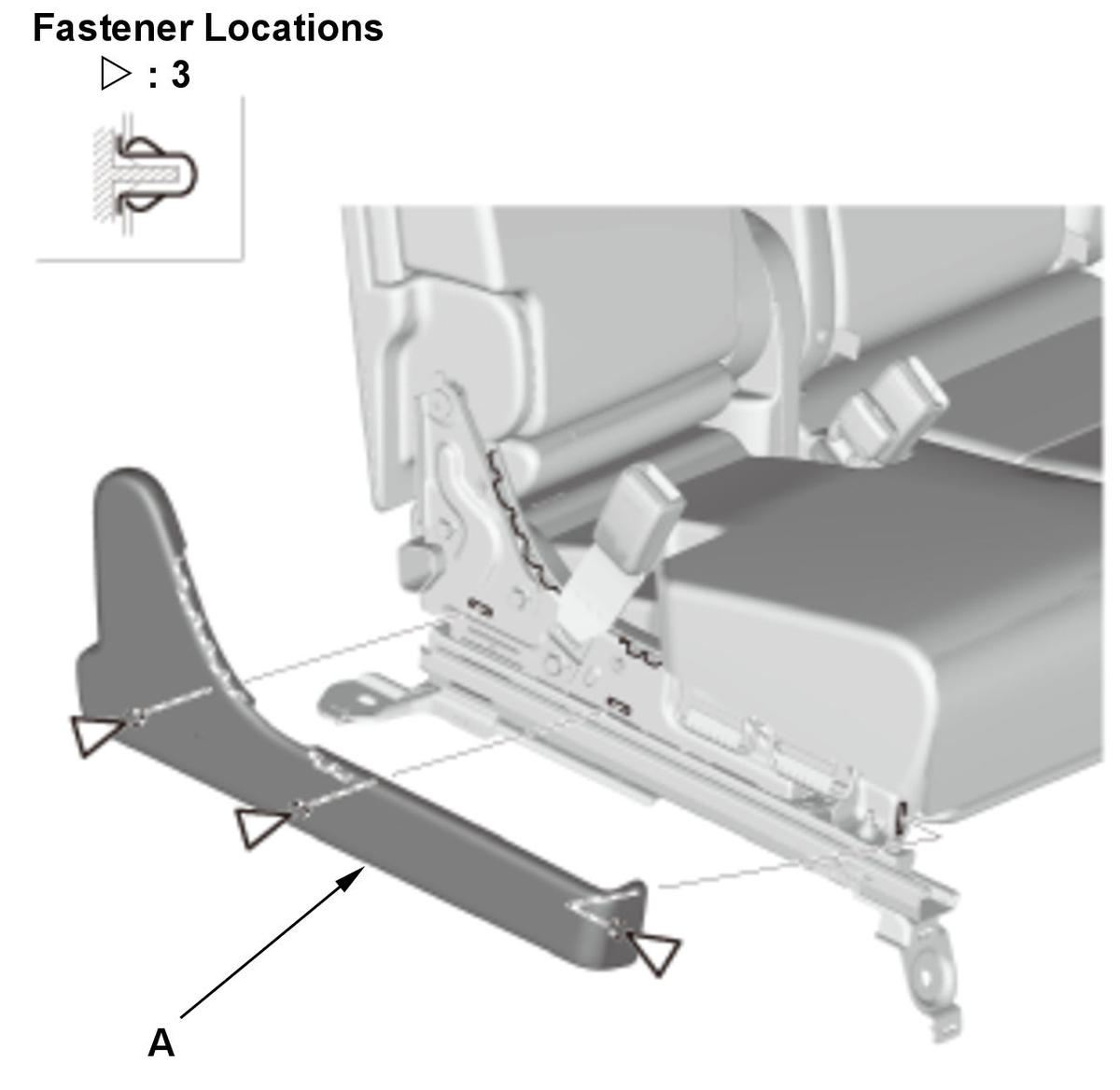

Courtesy of HONDA, U.S.A., INC.

3. Remove the second row seat recline outer cover (A).

4. Disconnect the connector (B). (for some models)

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
