Removal and Installation

  1. Second Row Seat - Remove (Left Side) - Go to: Second Row Seat Removal and Installation (Bench)
  2. Second Row Seat Recline Inner Cover - Remove (Left Side) - Go to: Second Row Seat Recline Cover Removal and Installation (Bench)
  3. Second Row Seat Armrest - Remove - Go to: Second Row Seat Armrest Removal and Installation (Bench)
  4. Second Row Seat Armrest Panel - Remove

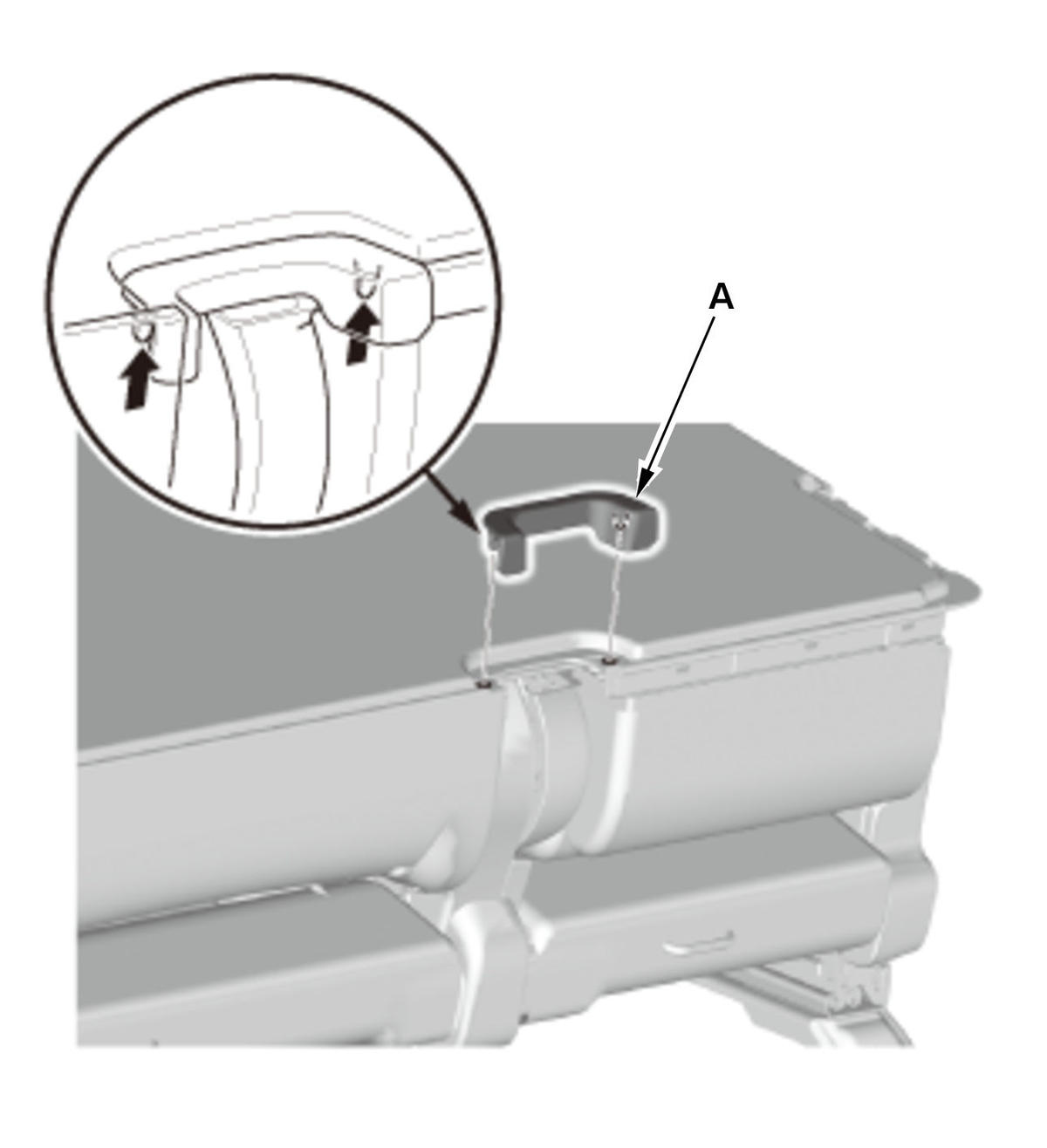

    GHH312050Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the seat-back board cover (A).

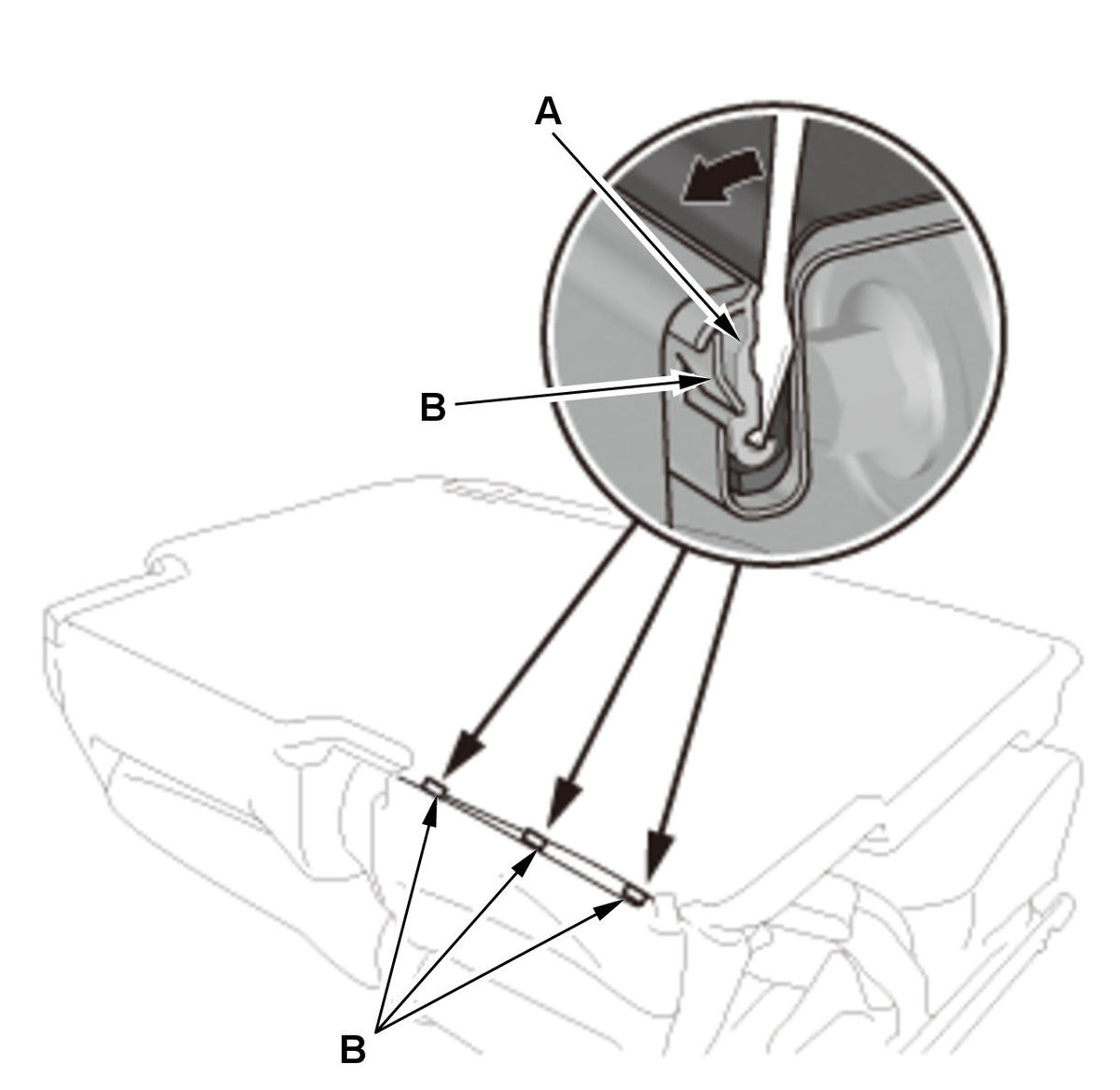

    GHH312051Courtesy of HONDA, U.S.A., INC.
    		 2. Remove the retainer (A) from the lance tabs (B).

    NOTE:

    • Use the appropriate tool from trim tool or flat-tip screw driver.
    • Take care to prevent lance tab damage when disengaging the retainer.
    • Lance tabs are at the edge of the seat-back.

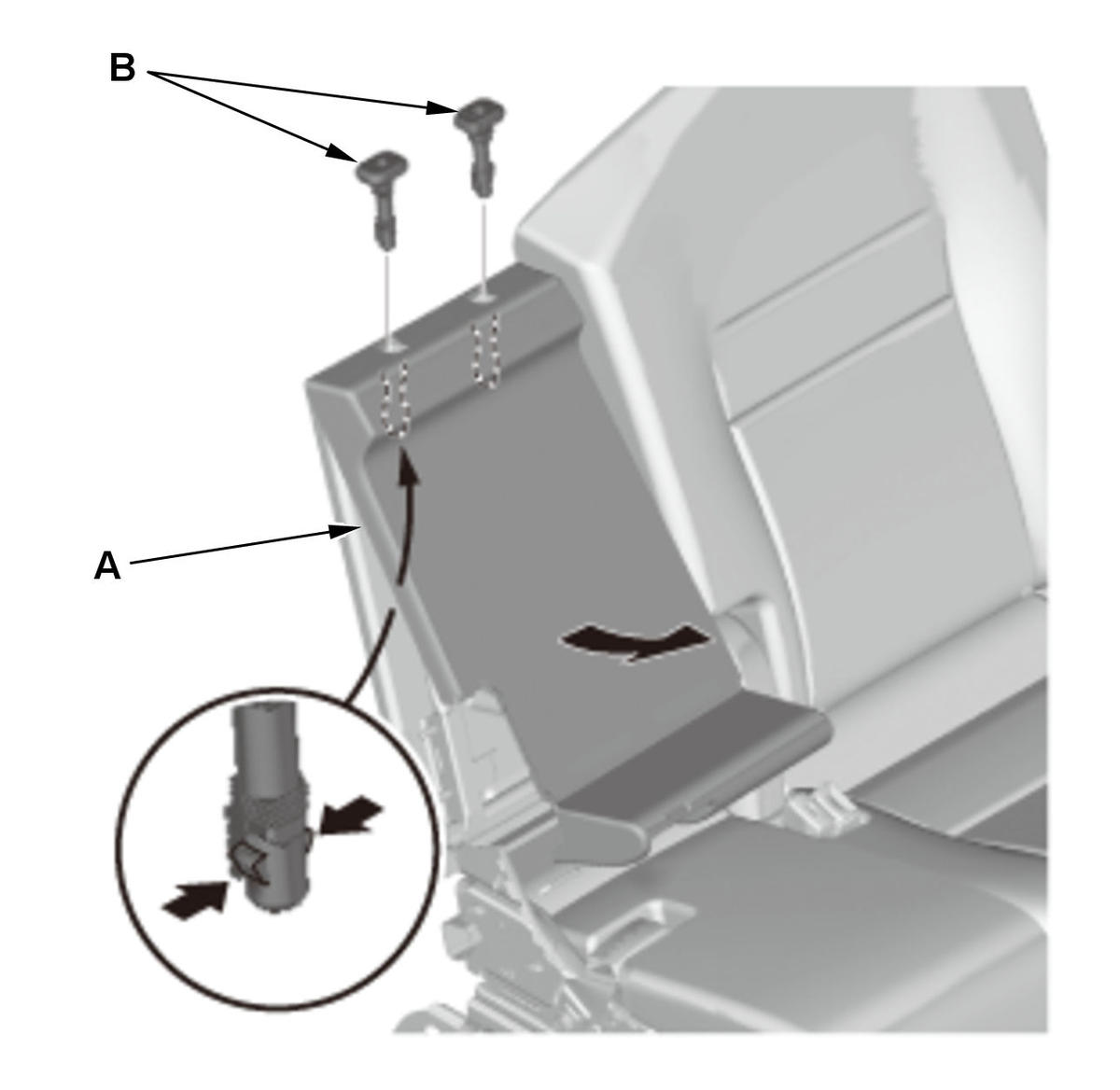

    GHH312052Courtesy of HONDA, U.S.A., INC.
    		 3. Remove the lower area of the second row seat armrest panel (A), and remove the headrest guides (B).

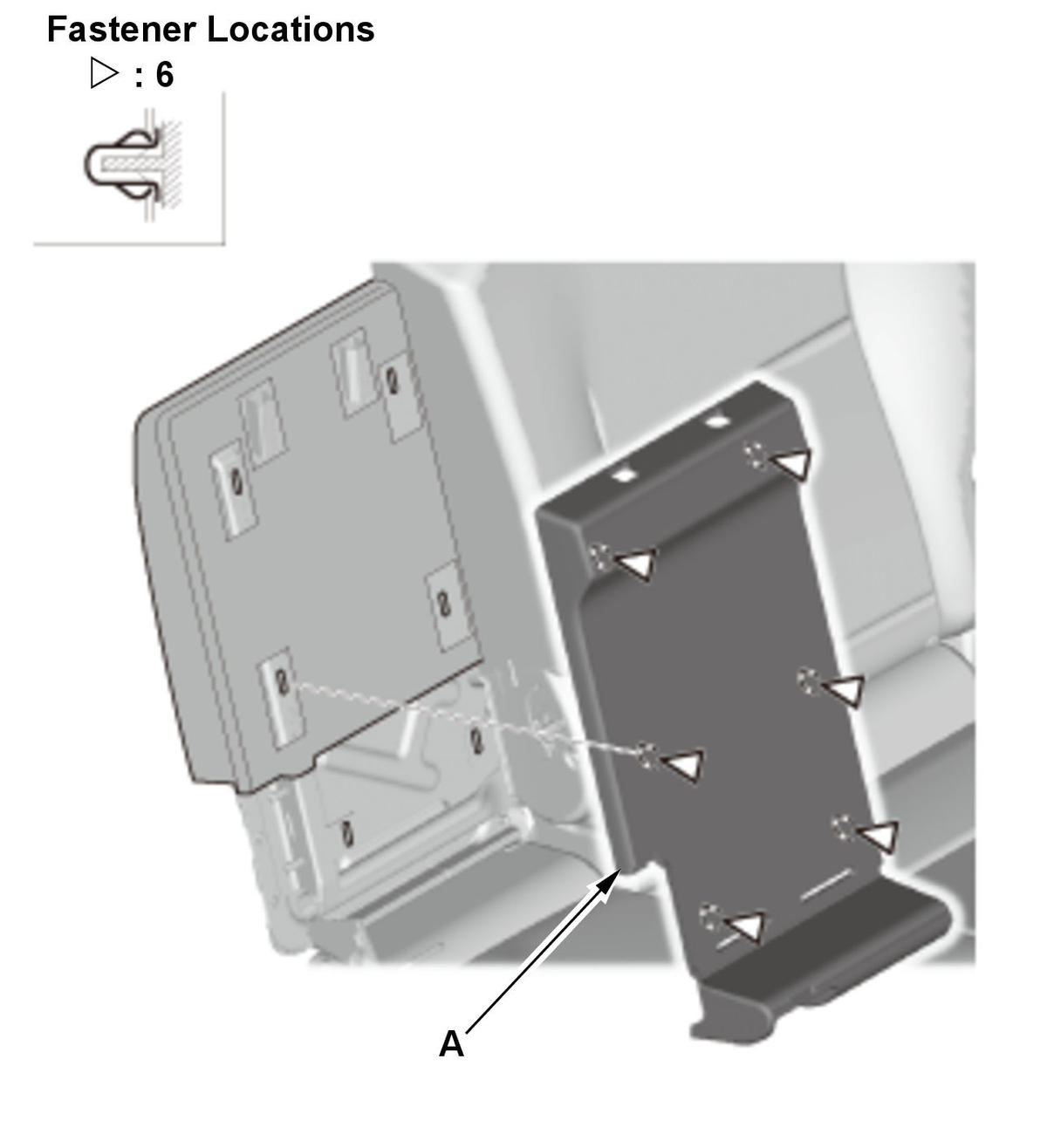

    GHH312053Courtesy of HONDA, U.S.A., INC.
    		 4. Remove the second row seat armrest panel (A).

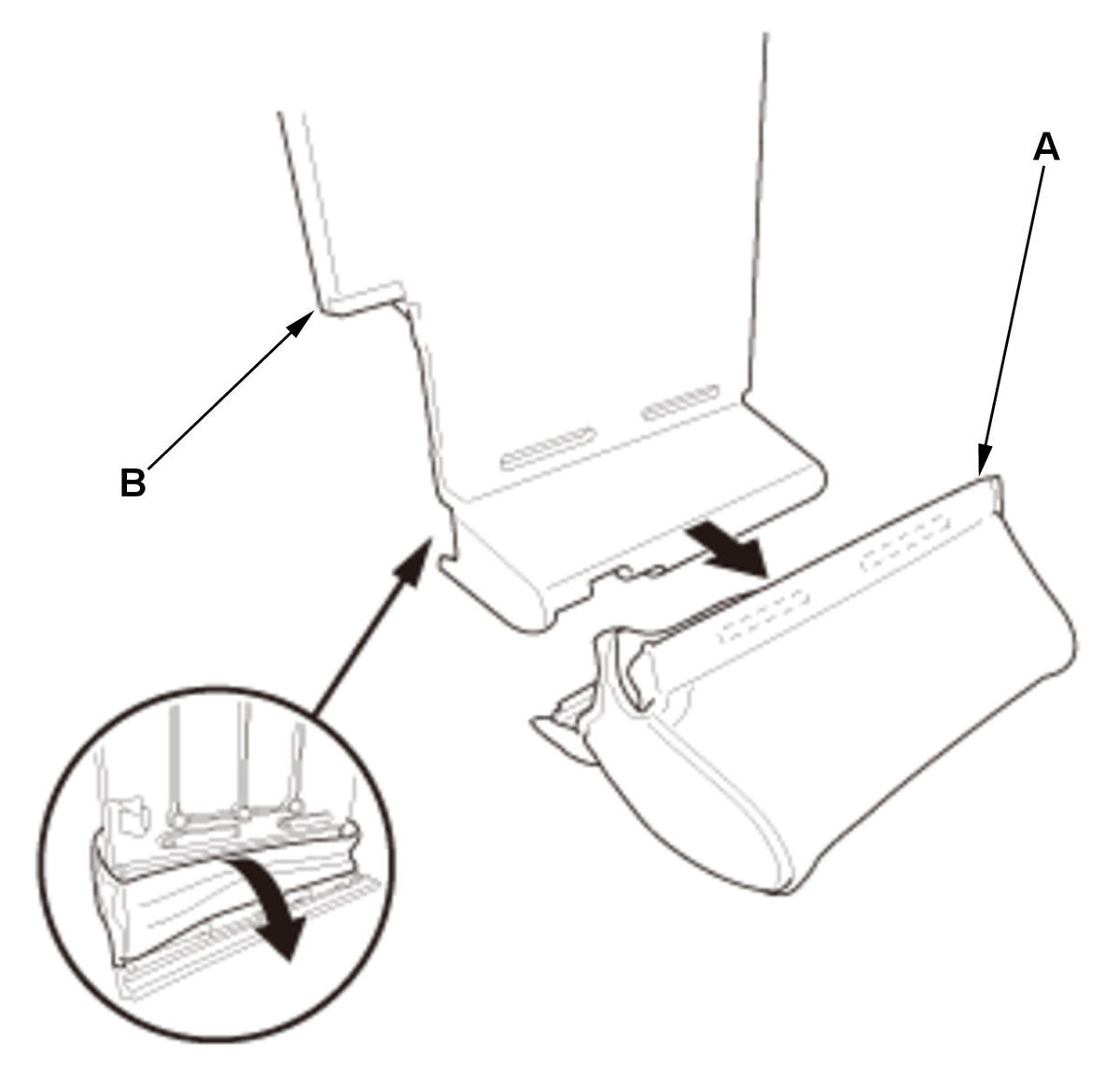

    GHH312054Courtesy of HONDA, U.S.A., INC.
    		 5. Remove the armrest panel cover (A) from the second row seat armrest panel (B).
  5. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
