Removal and Installation

Second Row Seat Armrest Cover - Remove

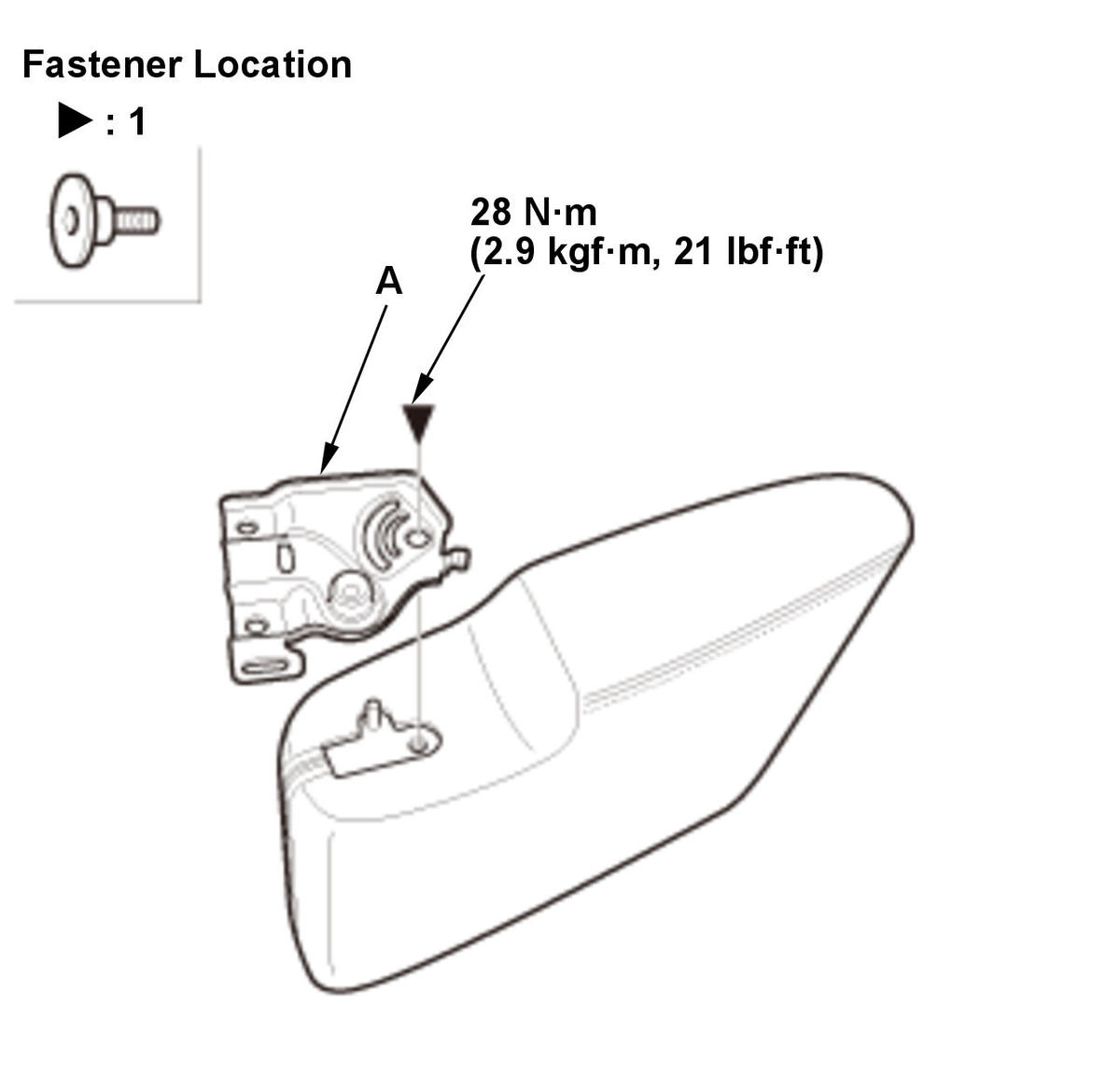

Fig 1: Second Row Seat Armrest Cover Bracket With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Using a TORX T50 bit, remove the bolt and remove the bracket (A).

Courtesy of HONDA, U.S.A., INC.

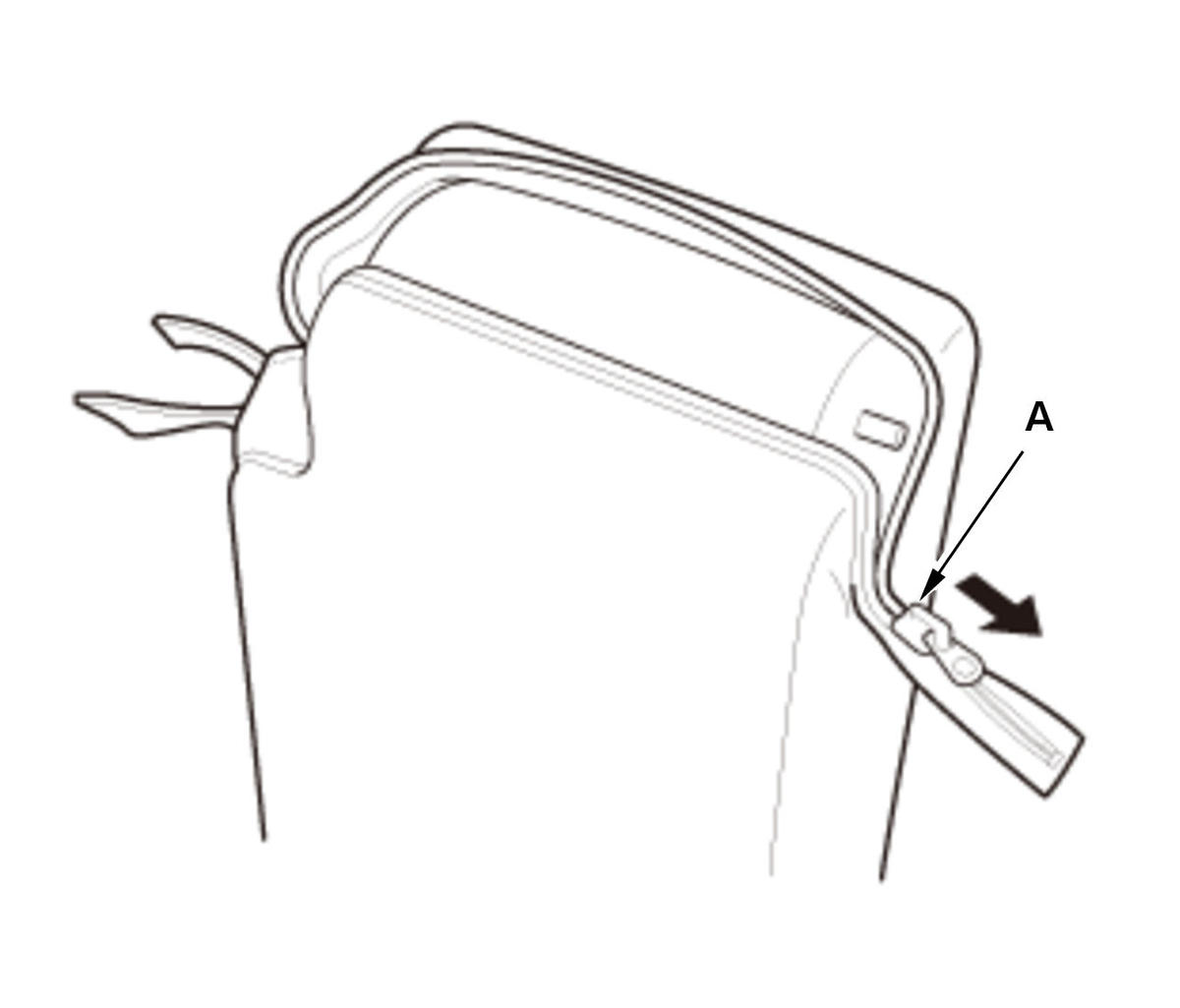

2. Unzip the armrest cover (A).

Courtesy of HONDA, U.S.A., INC.

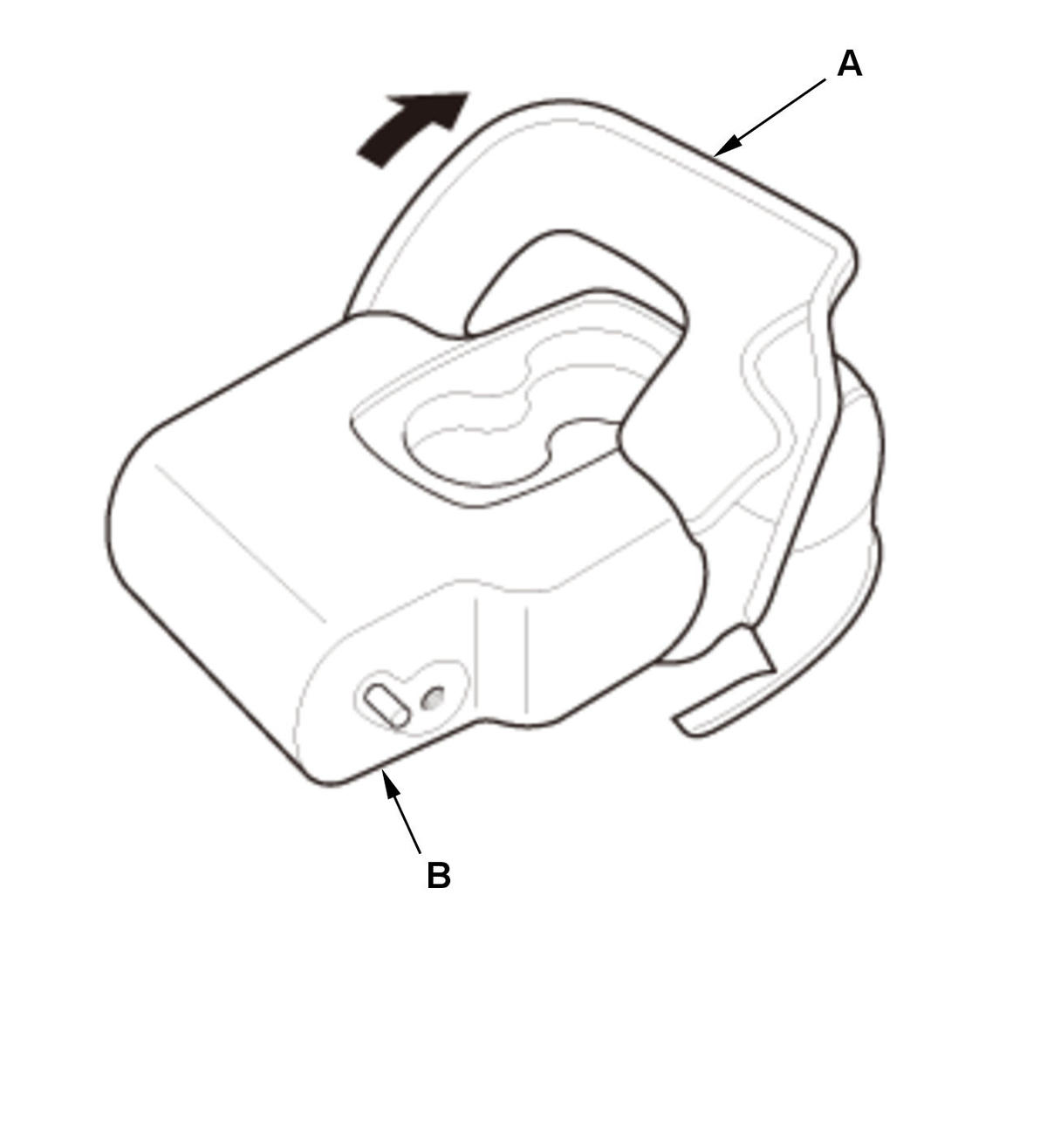

3. Pull back the armrest cover (A), all the way around, and then separate the armrest cover and pad (B).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
