Removal and Installation

Second Row Seat Armrest - Remove

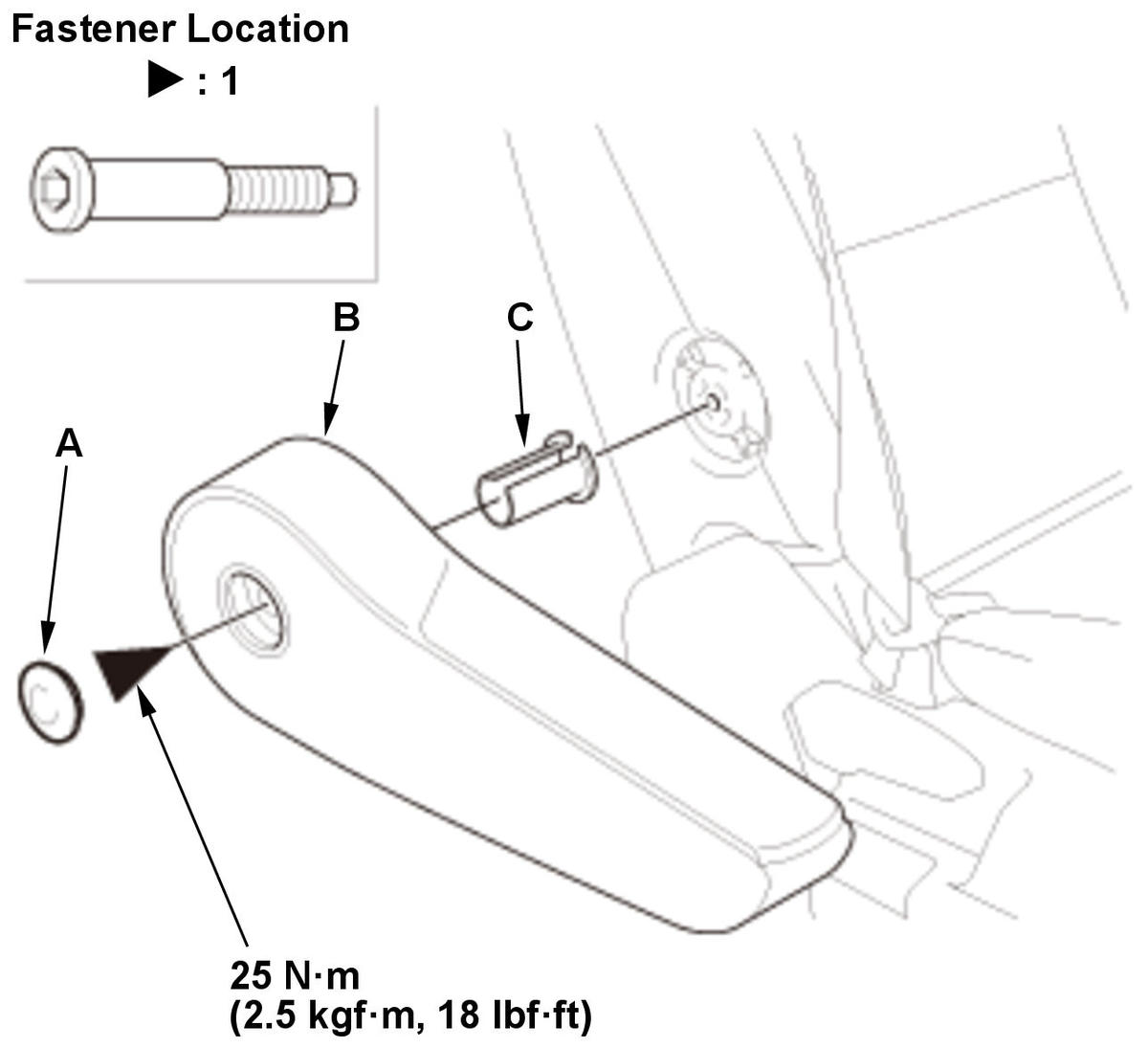

Fig 1: Second Row Seat Armrest With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Remove the bolt cap (A).

2. Remove the bolt with a TORX T45 bit, and then remove the armrest (B) and the plastic bushing (C).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
