Removal and Installation

Second Row Seat Front Foot Cover - Remove - Refer to:
Interior Trim Removal and Installation - Door Areas

Interior Trim Removal and Installation - Pillar Areas
Rear Door Sill Upper Trim - Remove - Refer to:
Interior Trim Removal and Installation - Door Areas

Interior Trim Removal and Installation - Pillar Areas
Rear Door Sill Lower Trim - Remove - Refer to:
Interior Trim Removal and Installation - Door Areas

Interior Trim Removal and Installation - Pillar Areas

Second Row Seat - Remove

Courtesy of HONDA, U.S.A., INC.

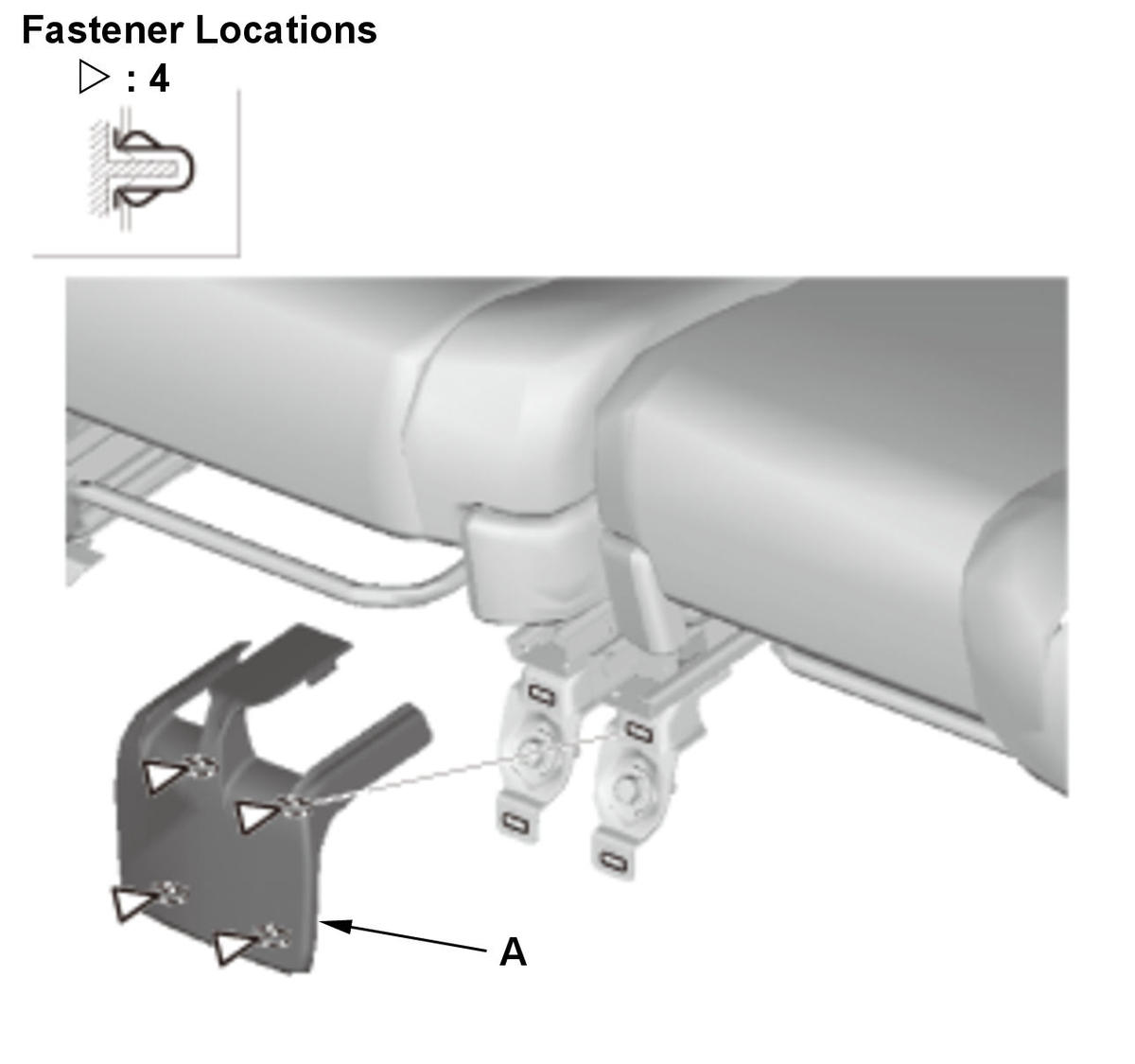

1. Remove the front foot cover (A).

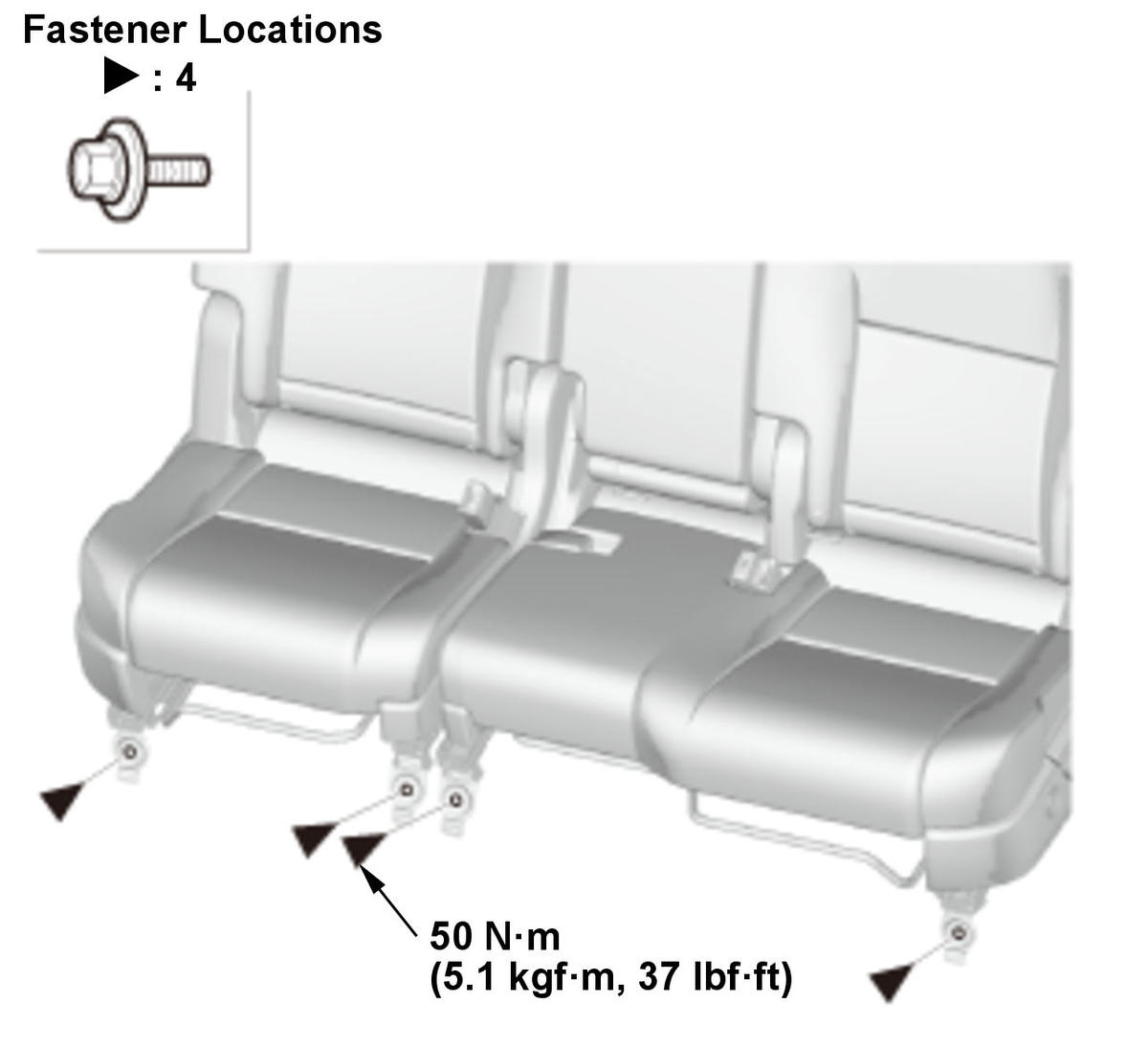

Fig 1: Second Row Seat Bolts (Front) With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

2. Remove the bolts.

Courtesy of HONDA, U.S.A., INC.

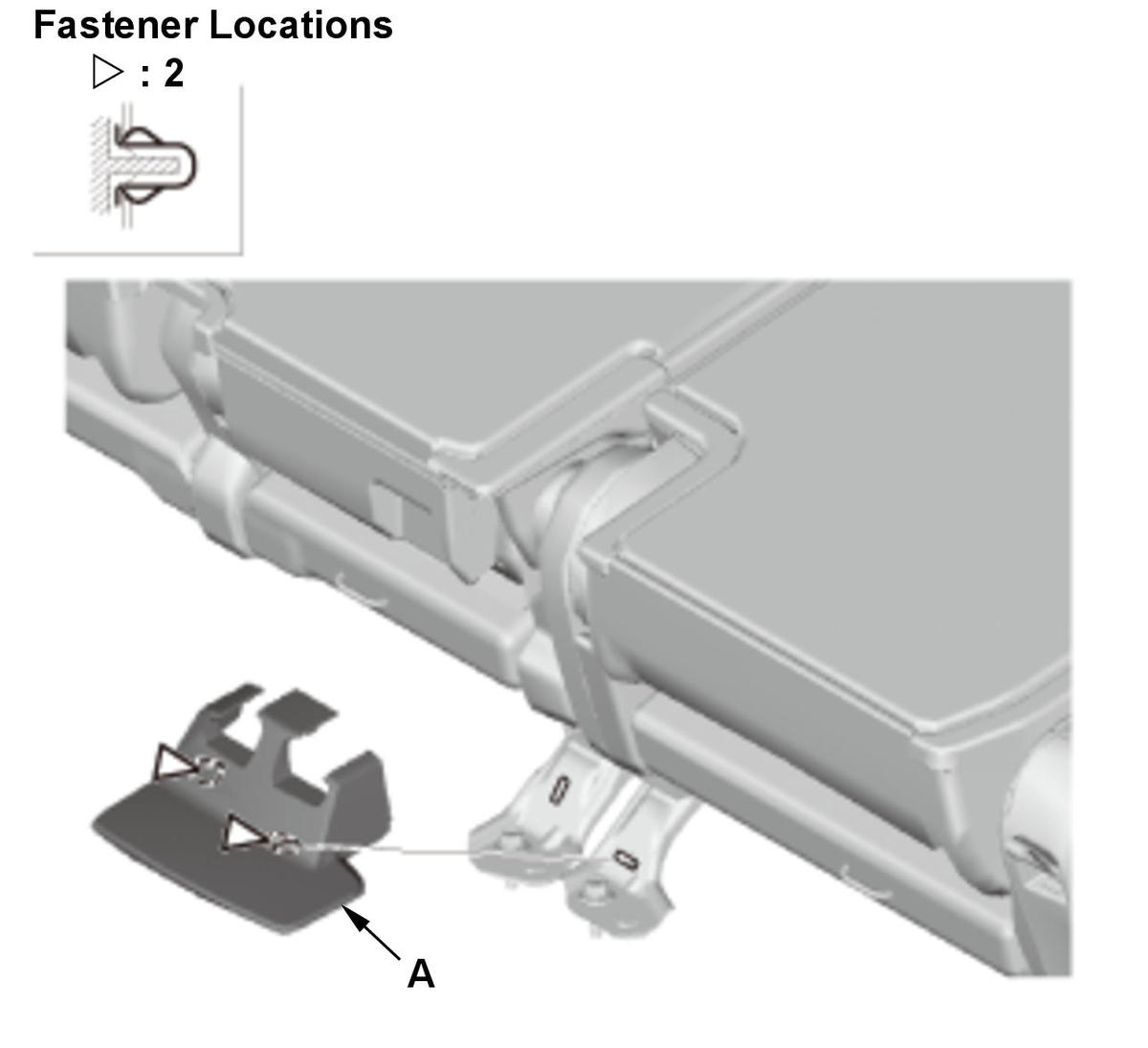

3. Remove the rear foot cover (A).

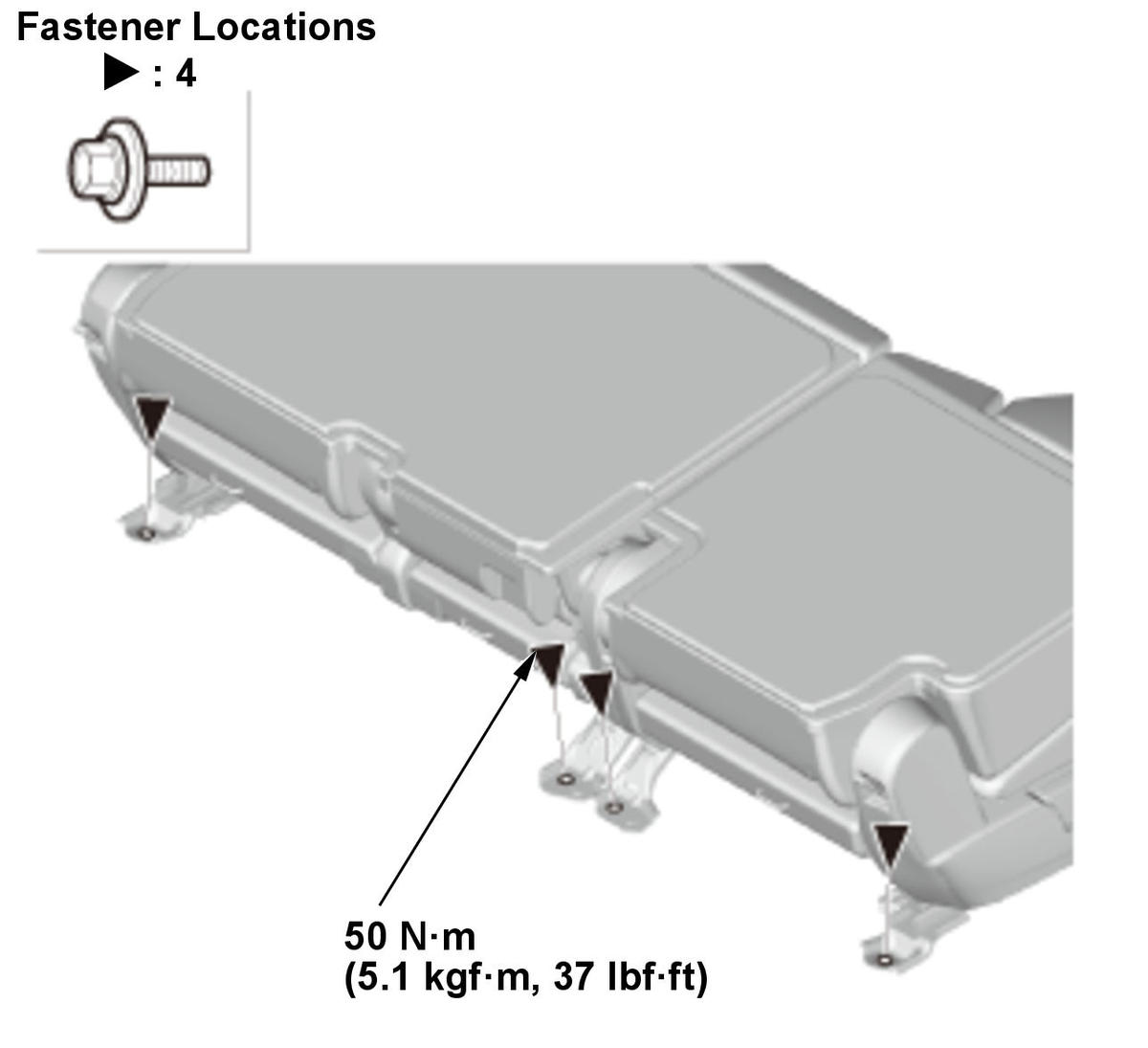

Fig 2: Second Row Seat Bolts (Rear) With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

4. Remove the bolts.

Courtesy of HONDA, U.S.A., INC.

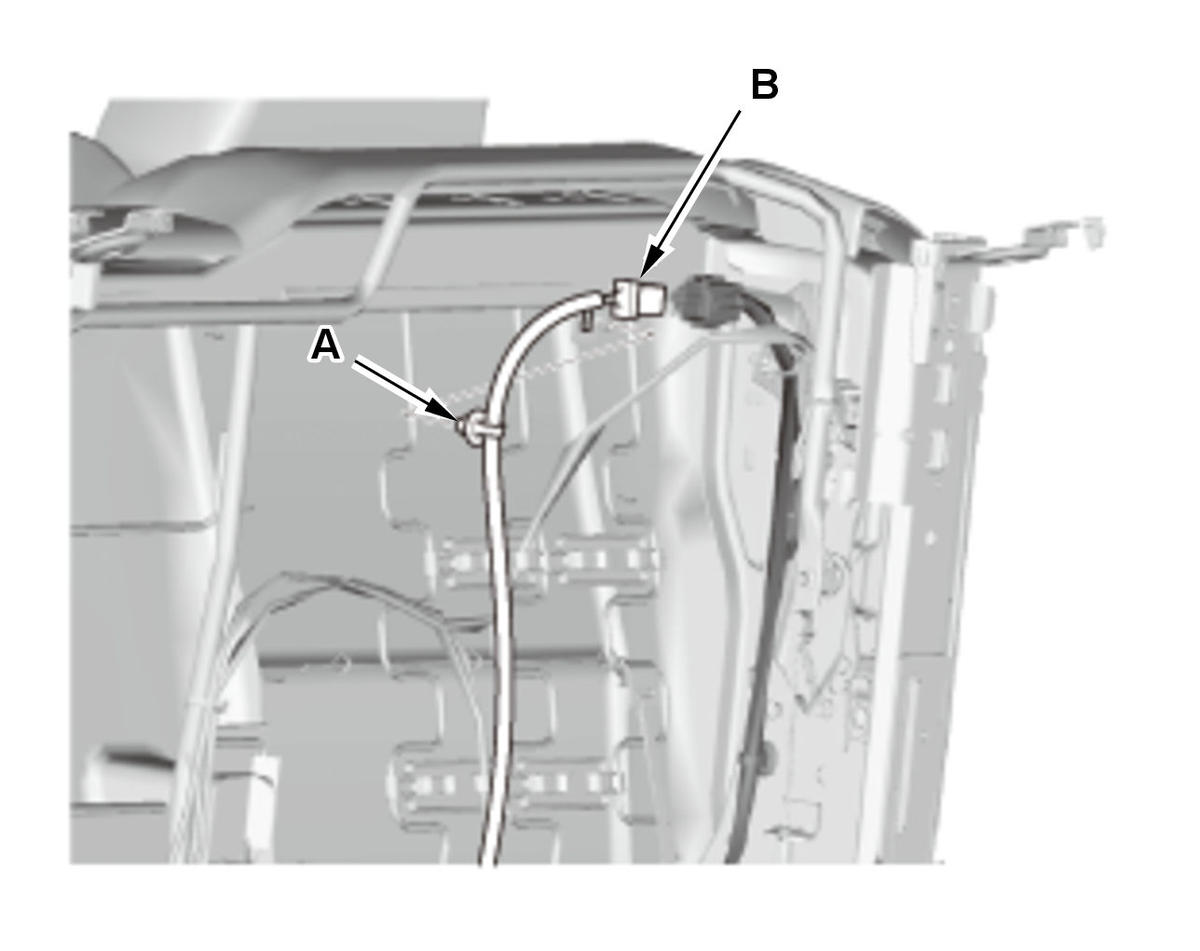

5. Lift up the second row seat, and then remove the harness clip (A) and disconnect the connector (B). (if equipped)

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
