Home >> Honda >> 2021 >> Pilot Special Edition, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Mirrors >> Mirrors - Testing & Troubleshooting >> Circuit Diagram >> Automatic Dimming Mirrors (2016 2017 2018)

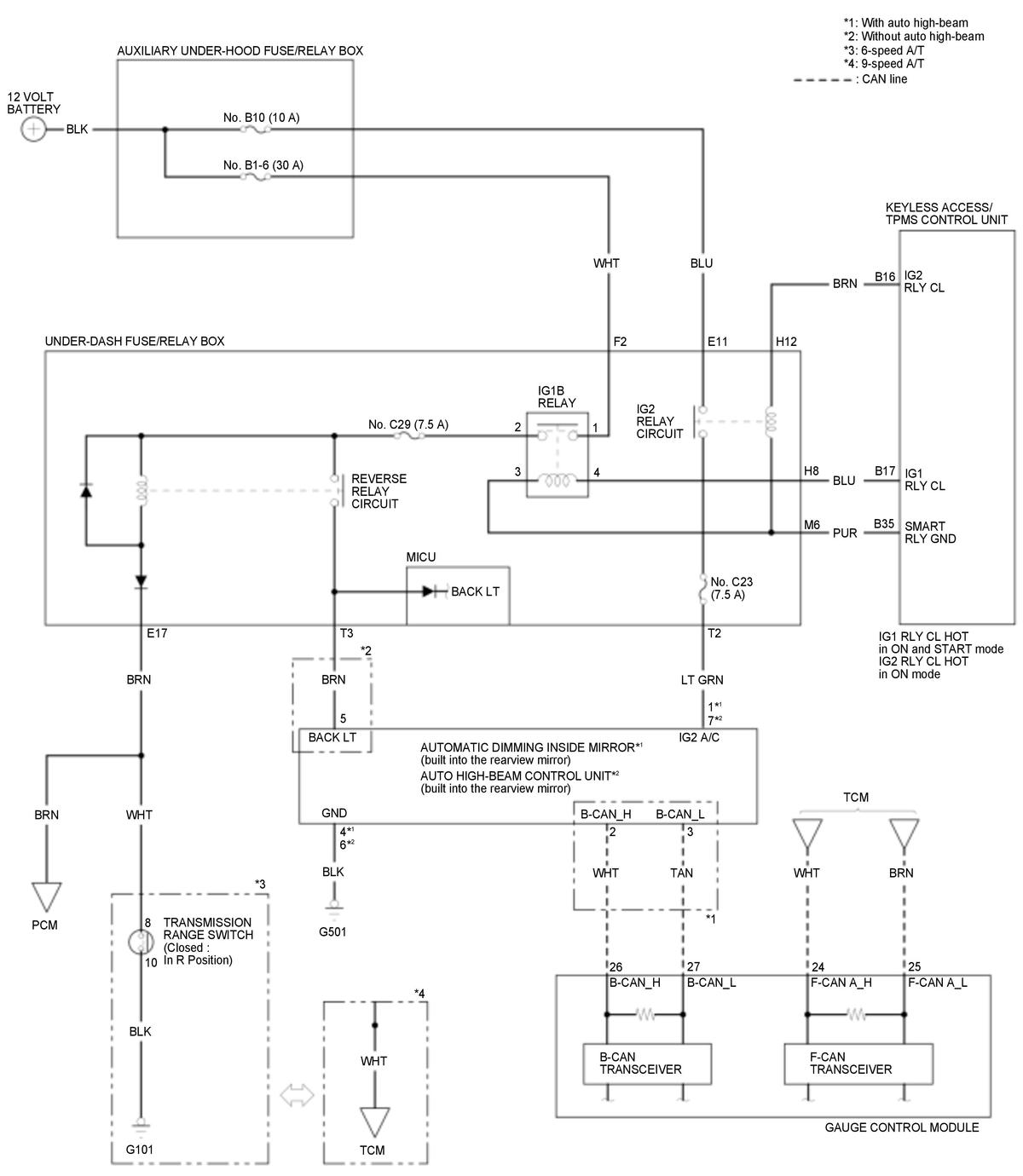

Automatic Dimming Mirrors (2016 2017 2018)

GHH310800

Courtesy of HONDA, U.S.A., INC.
