Interior Lighting - Testing & Troubleshooting
>>
Circuit Diagram
>>

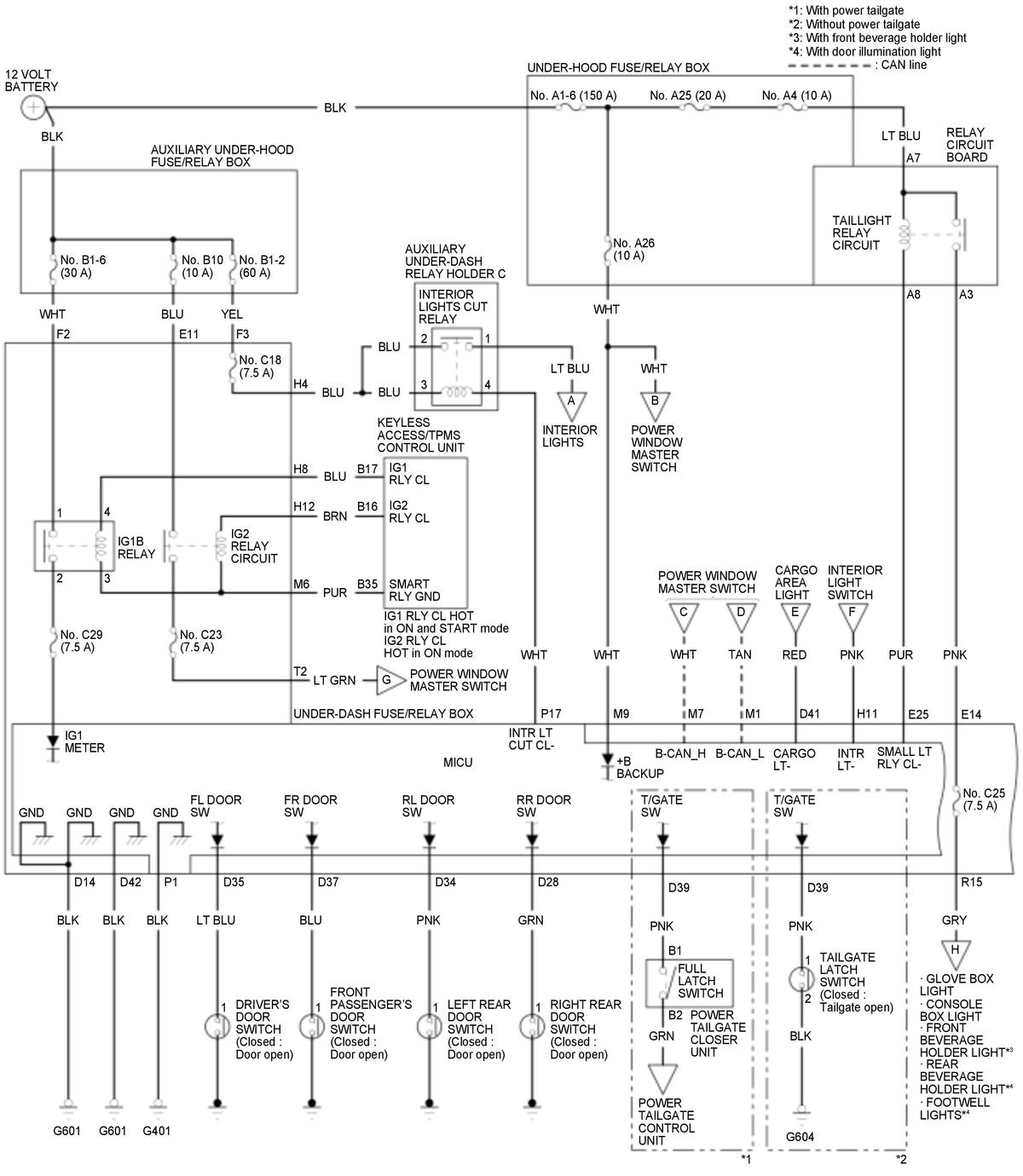

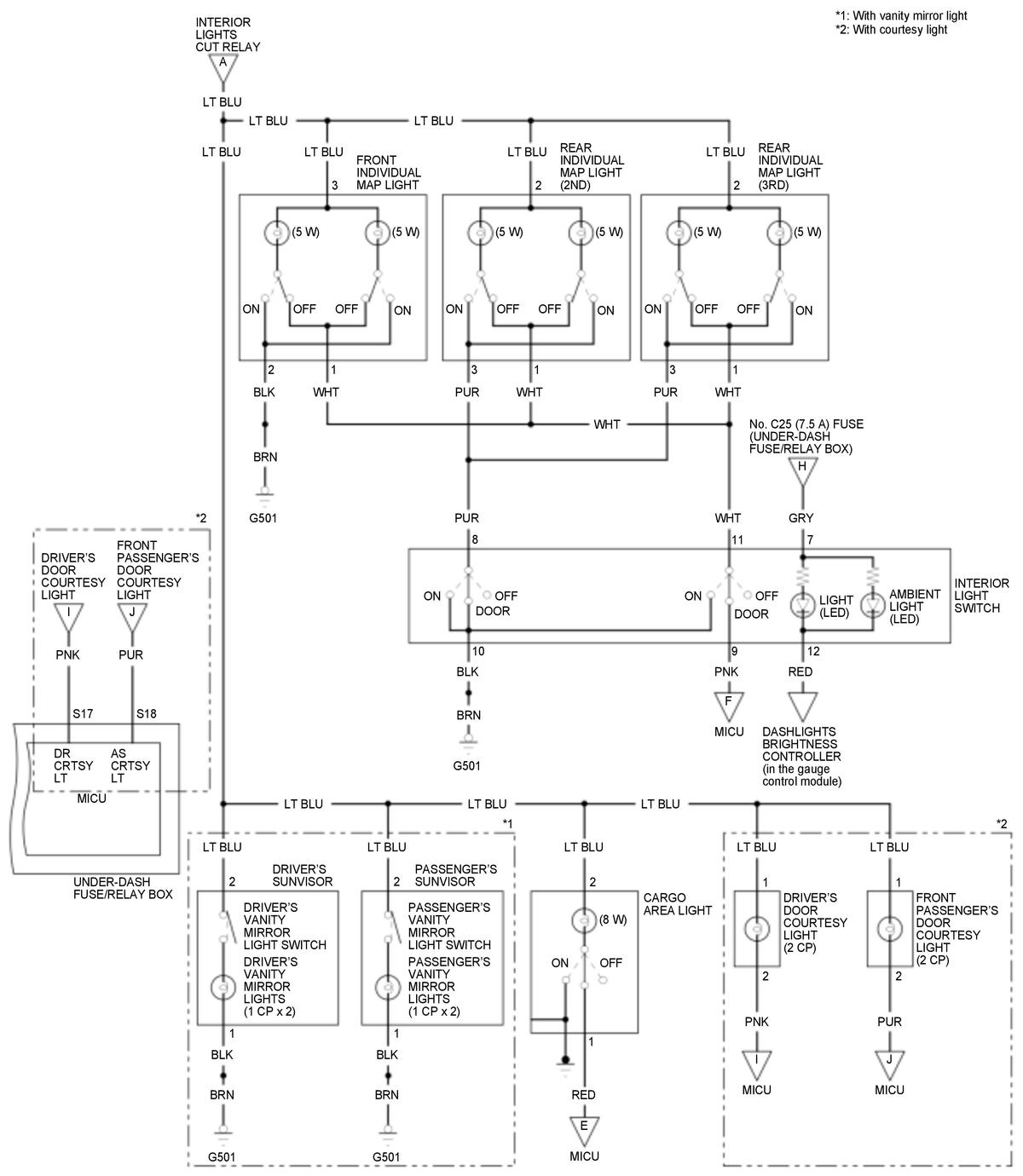

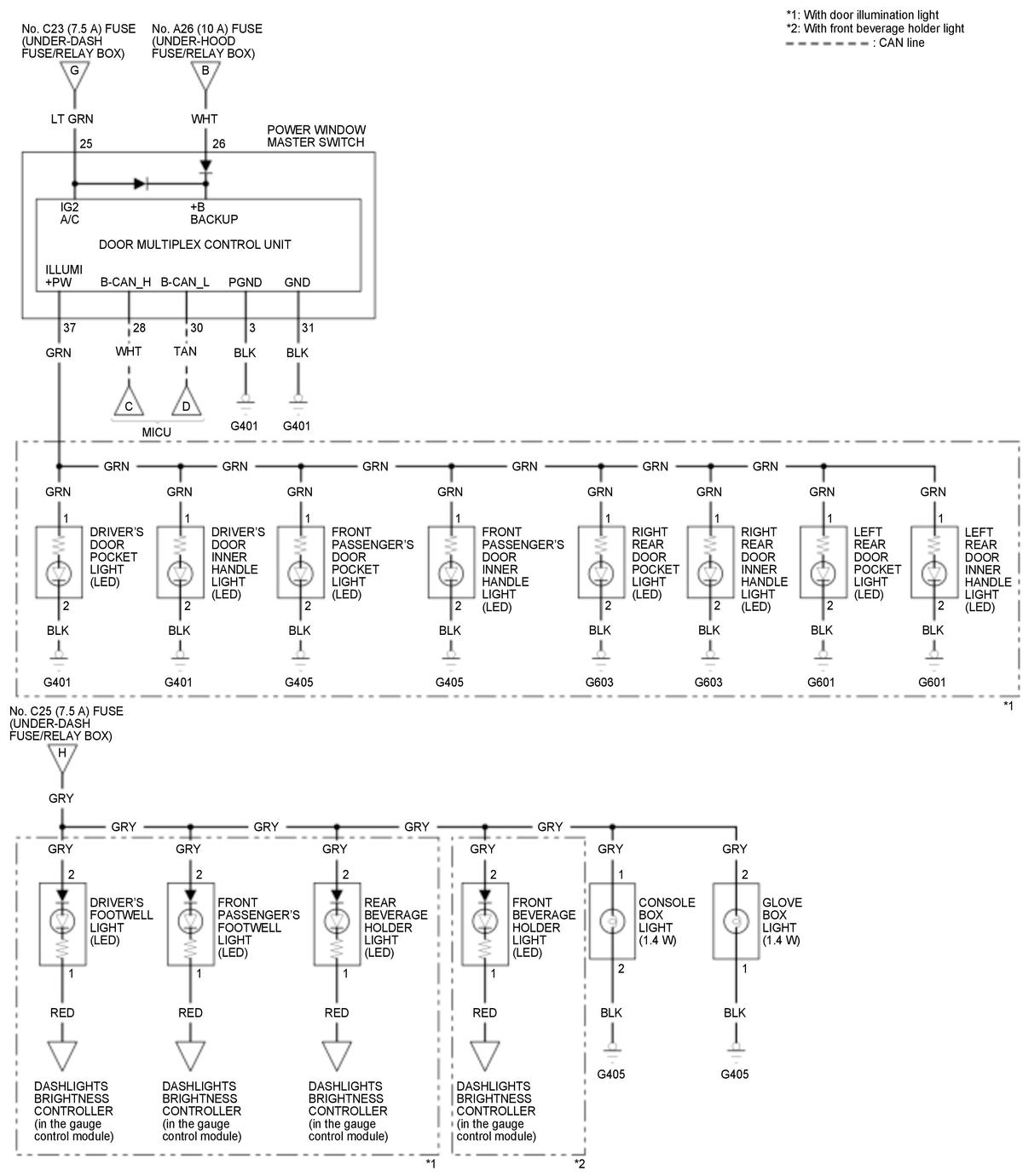

INTERIOR LIGHTS (WITHOUT Panoramic Glass Roof) (2019 2020 2021)
INTERIOR LIGHTS (WITHOUT Panoramic Glass Roof) (2019 2020 2021)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
