INTERIOR LIGHTS (WITHOUT Panoramic Glass Roof) (2016 2017 2018)

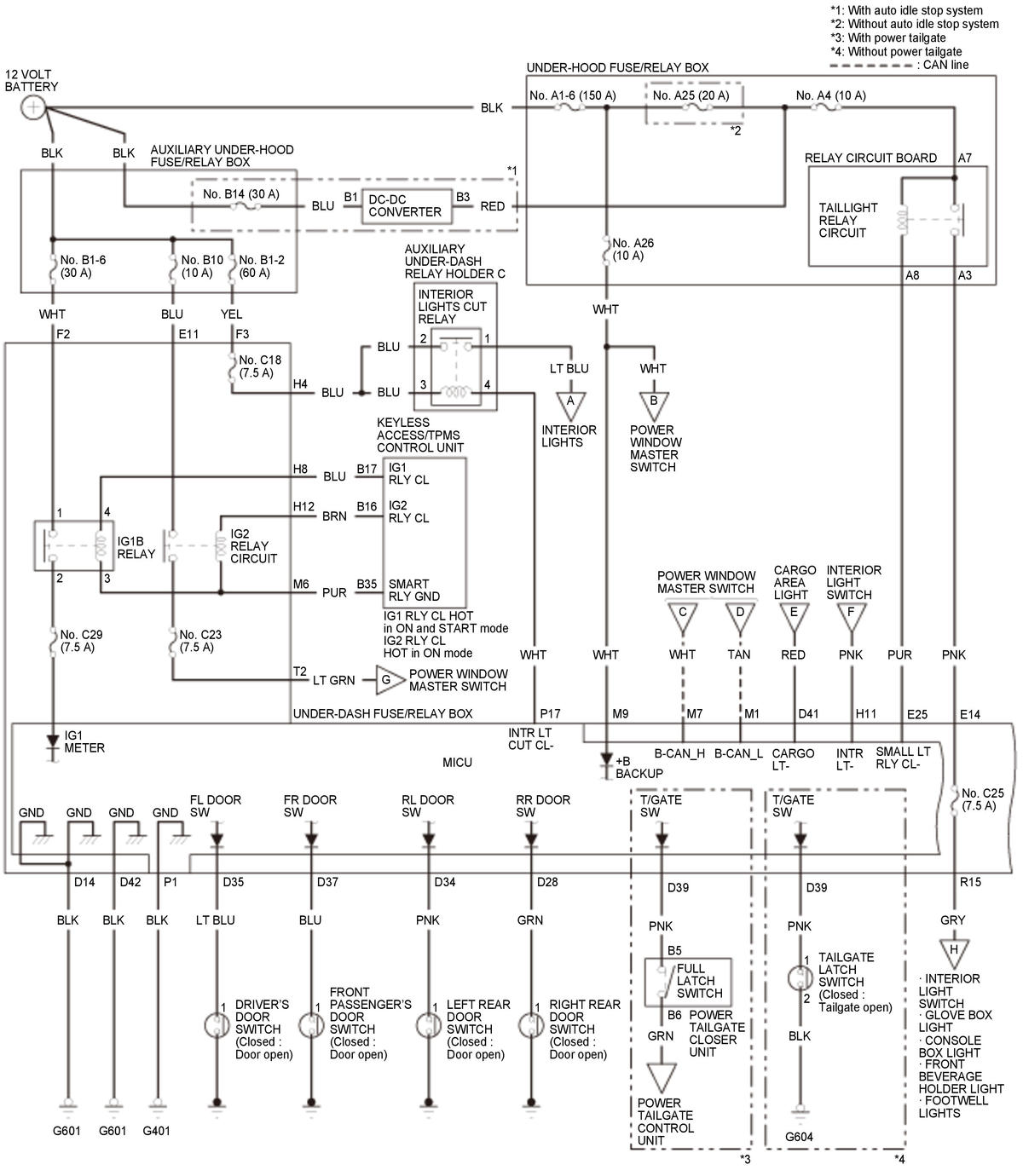

GHH310405

Courtesy of HONDA, U.S.A., INC.

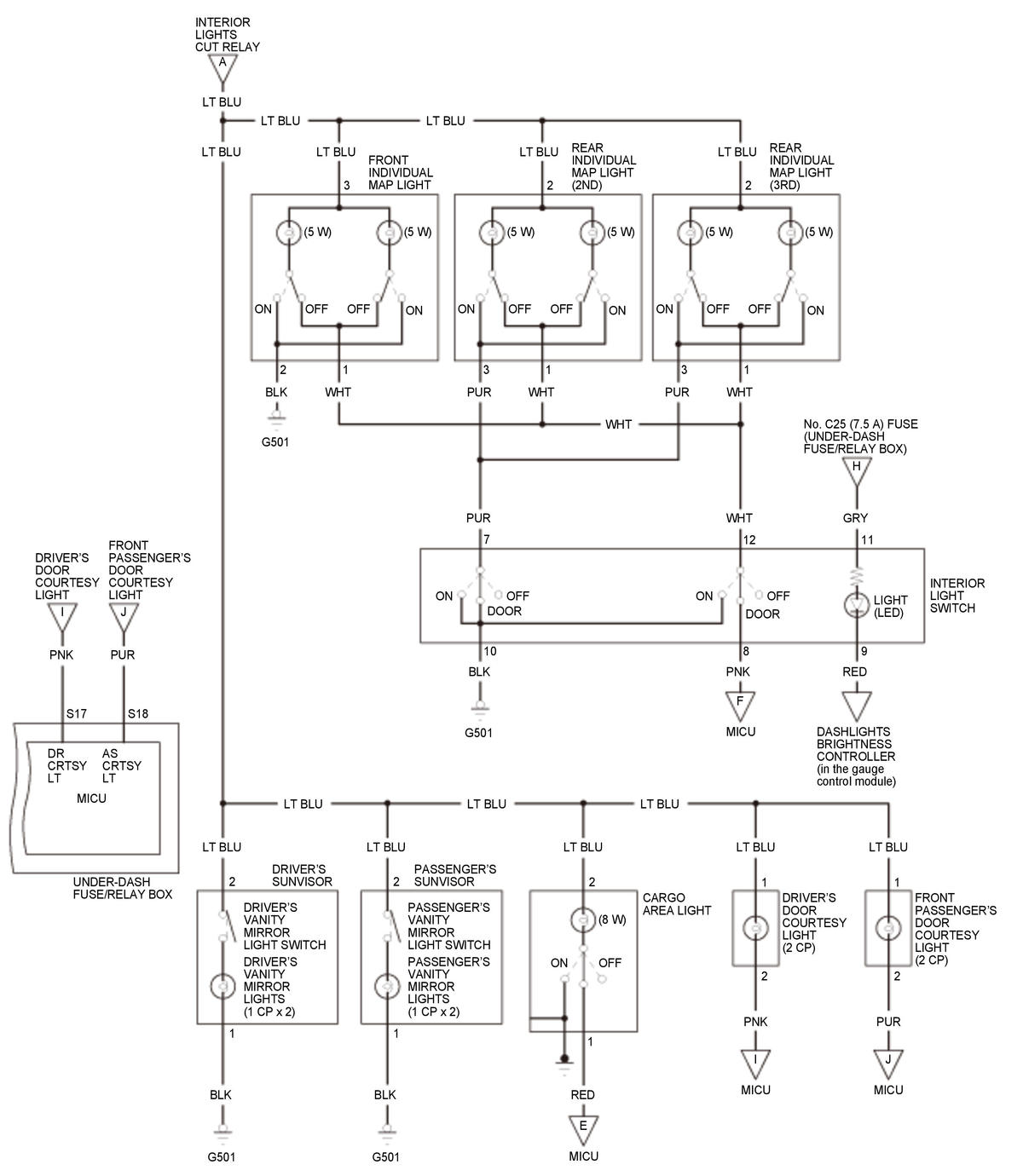

GHH310406

Courtesy of HONDA, U.S.A., INC.

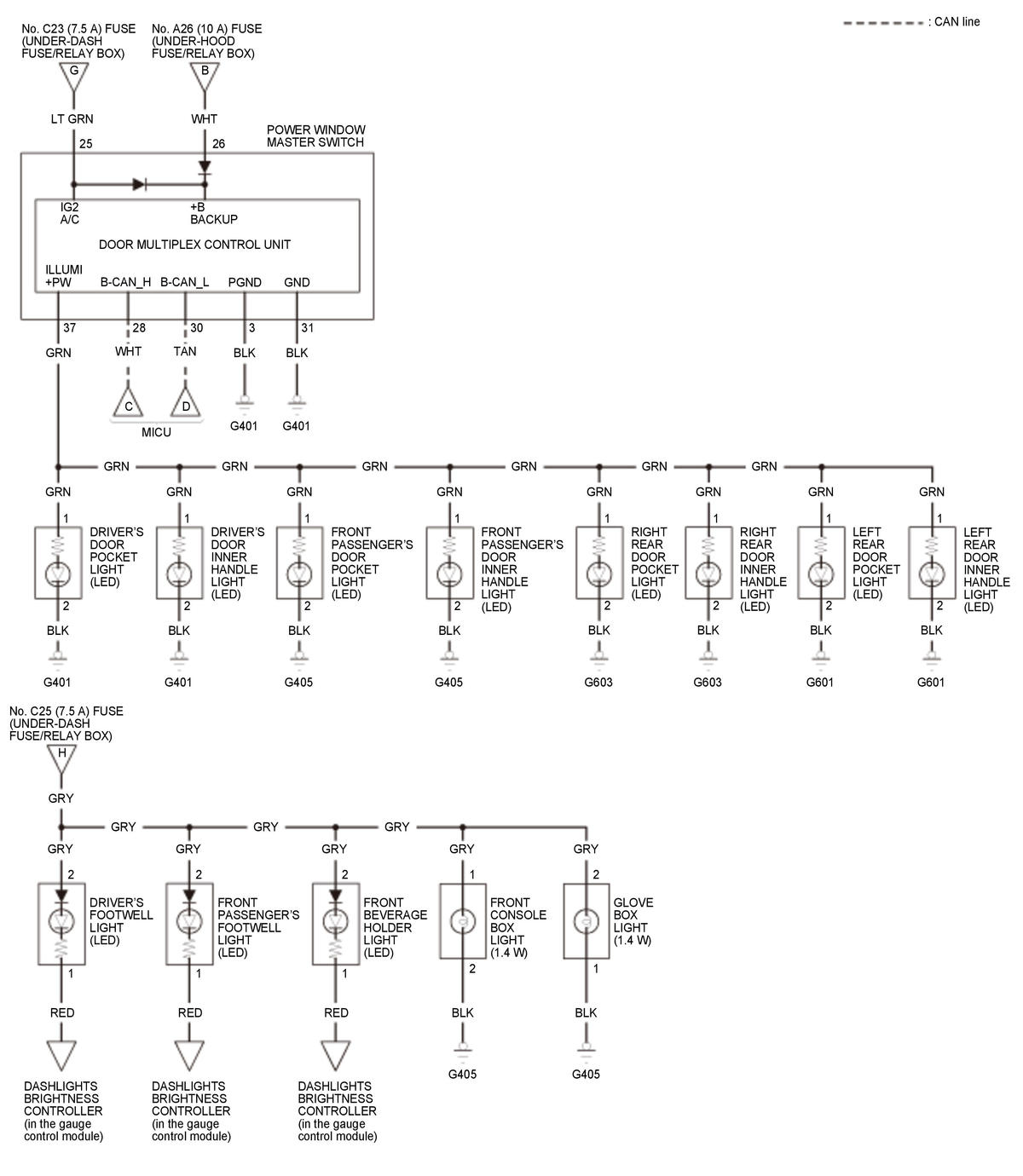

GHH310407

Courtesy of HONDA, U.S.A., INC.
