INTERIOR LIGHTS (WITH Panoramic Glass Roof) (2019 2020 2021)

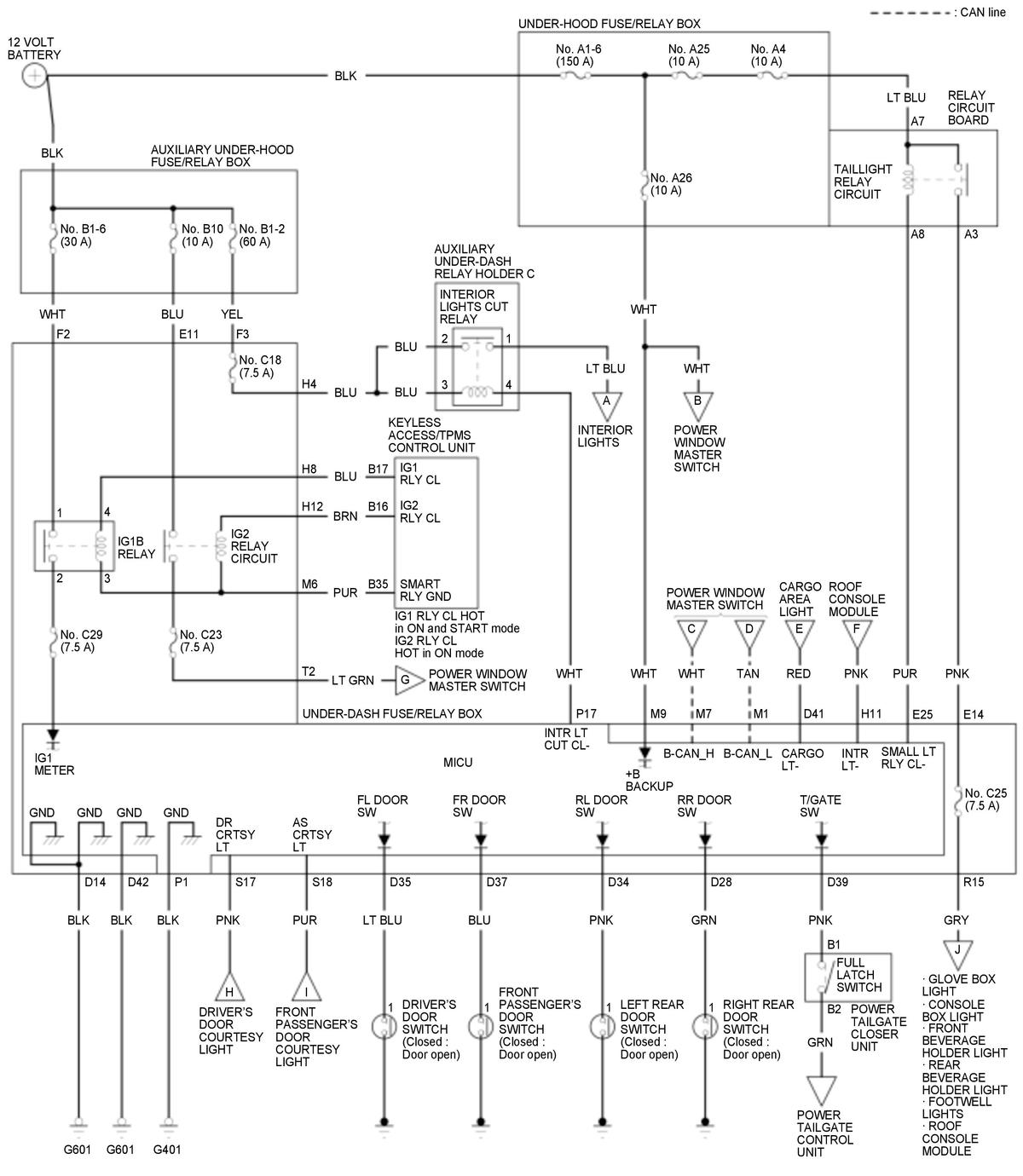

GHH310414

Courtesy of HONDA, U.S.A., INC.

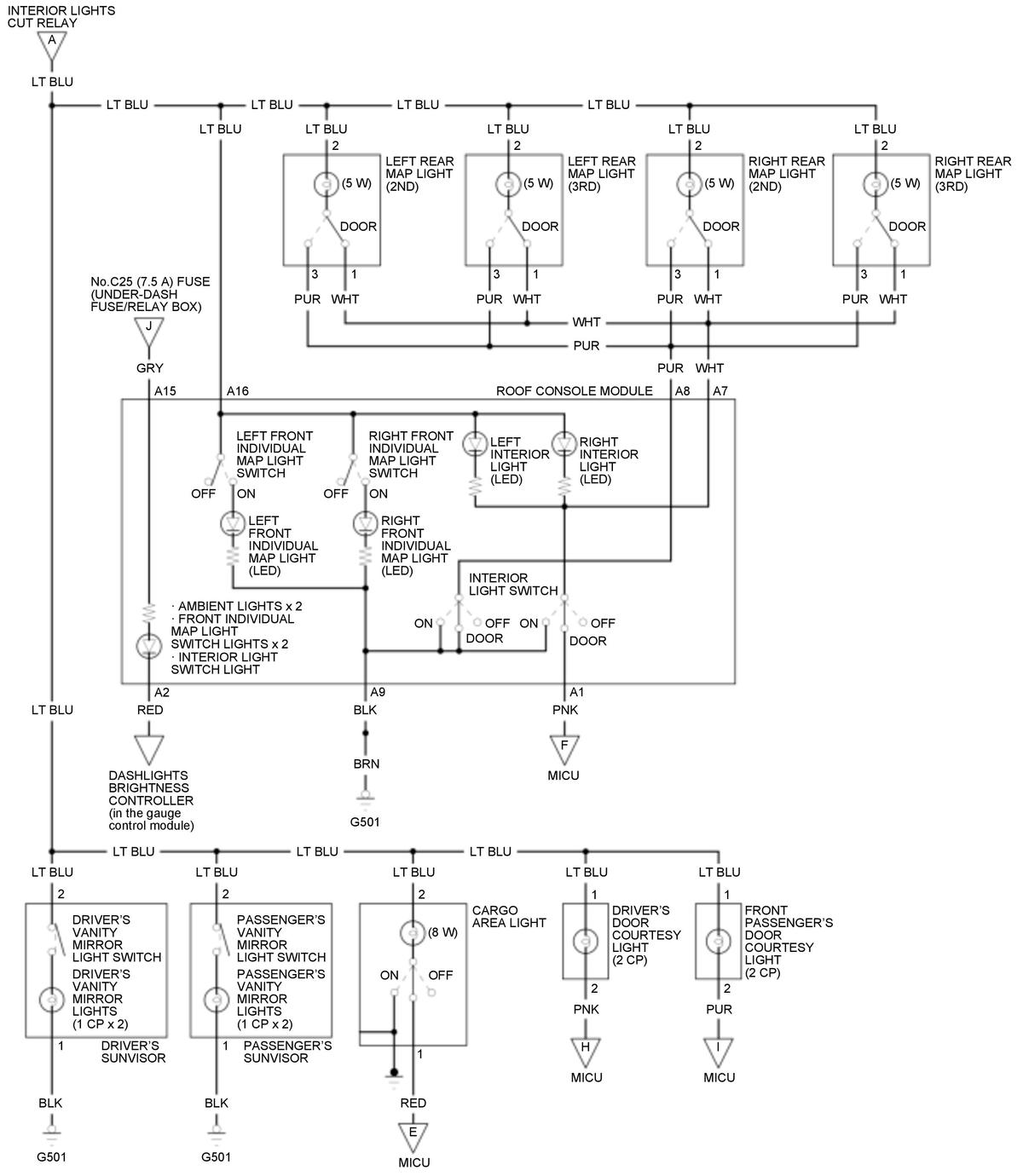

GHH310415

Courtesy of HONDA, U.S.A., INC.

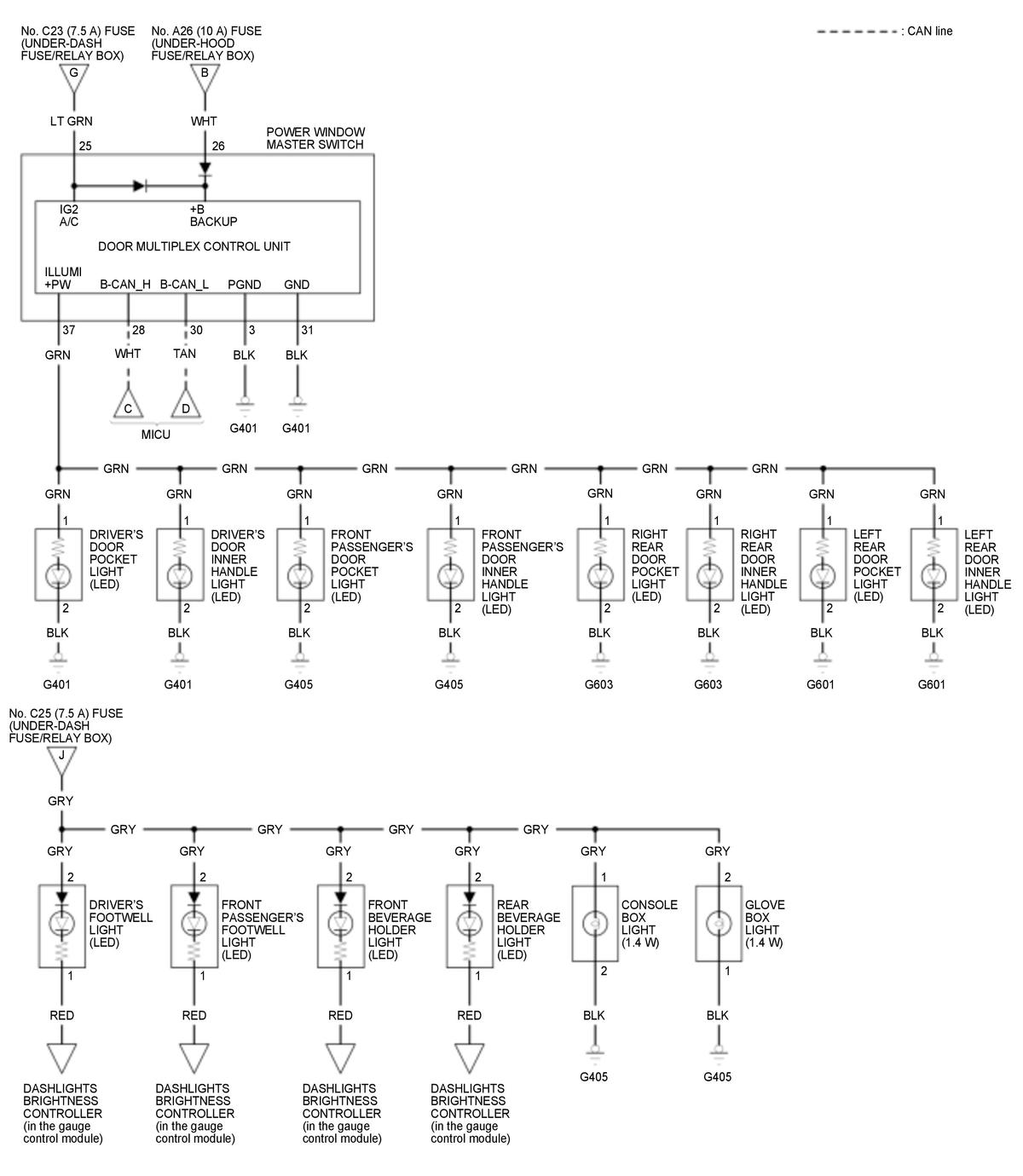

GHH310416

Courtesy of HONDA, U.S.A., INC.
