INTERIOR LIGHTS (WITH Panoramic Glass Roof) (2016 2017 2018)

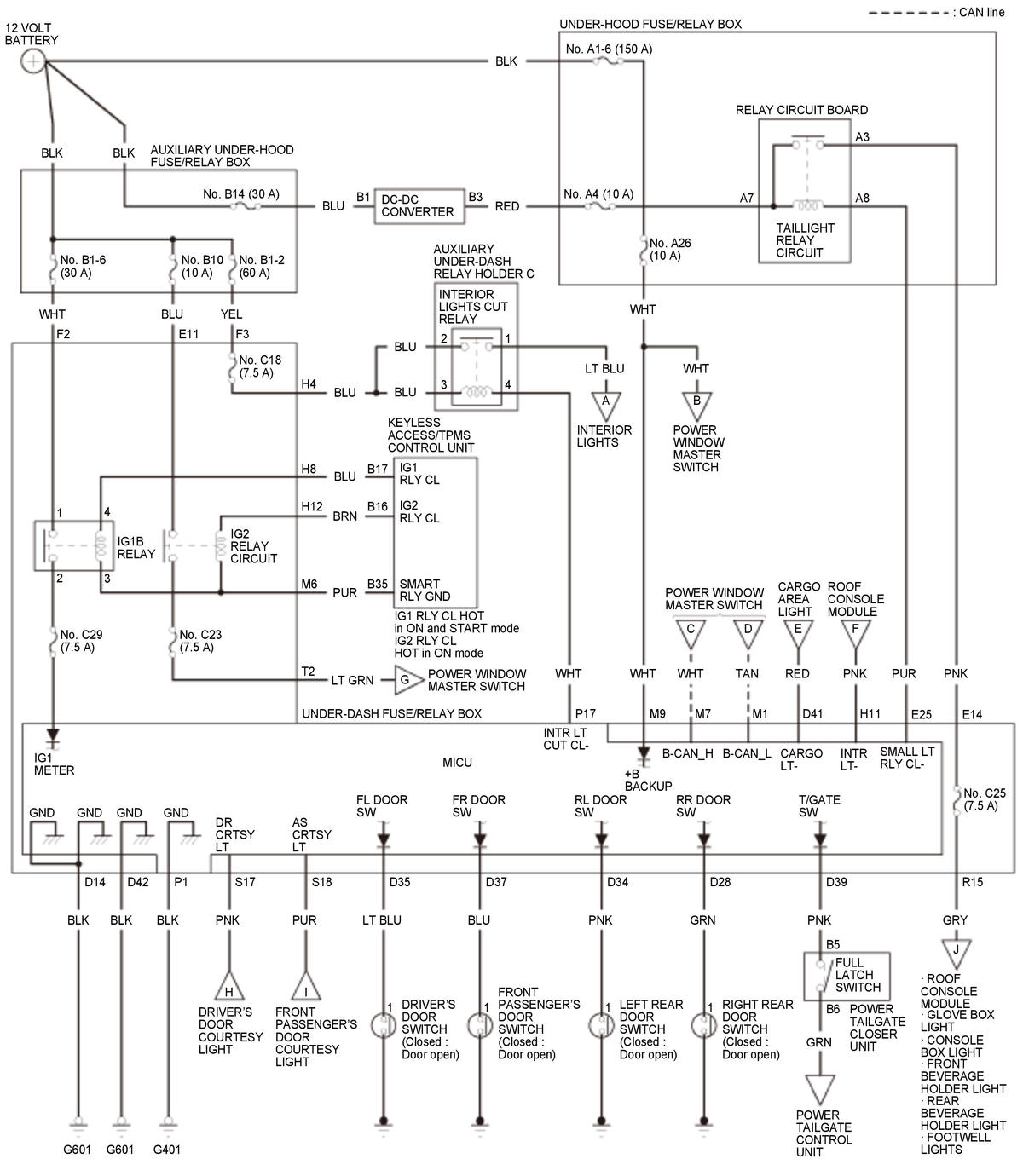

GHH310408

Courtesy of HONDA, U.S.A., INC.

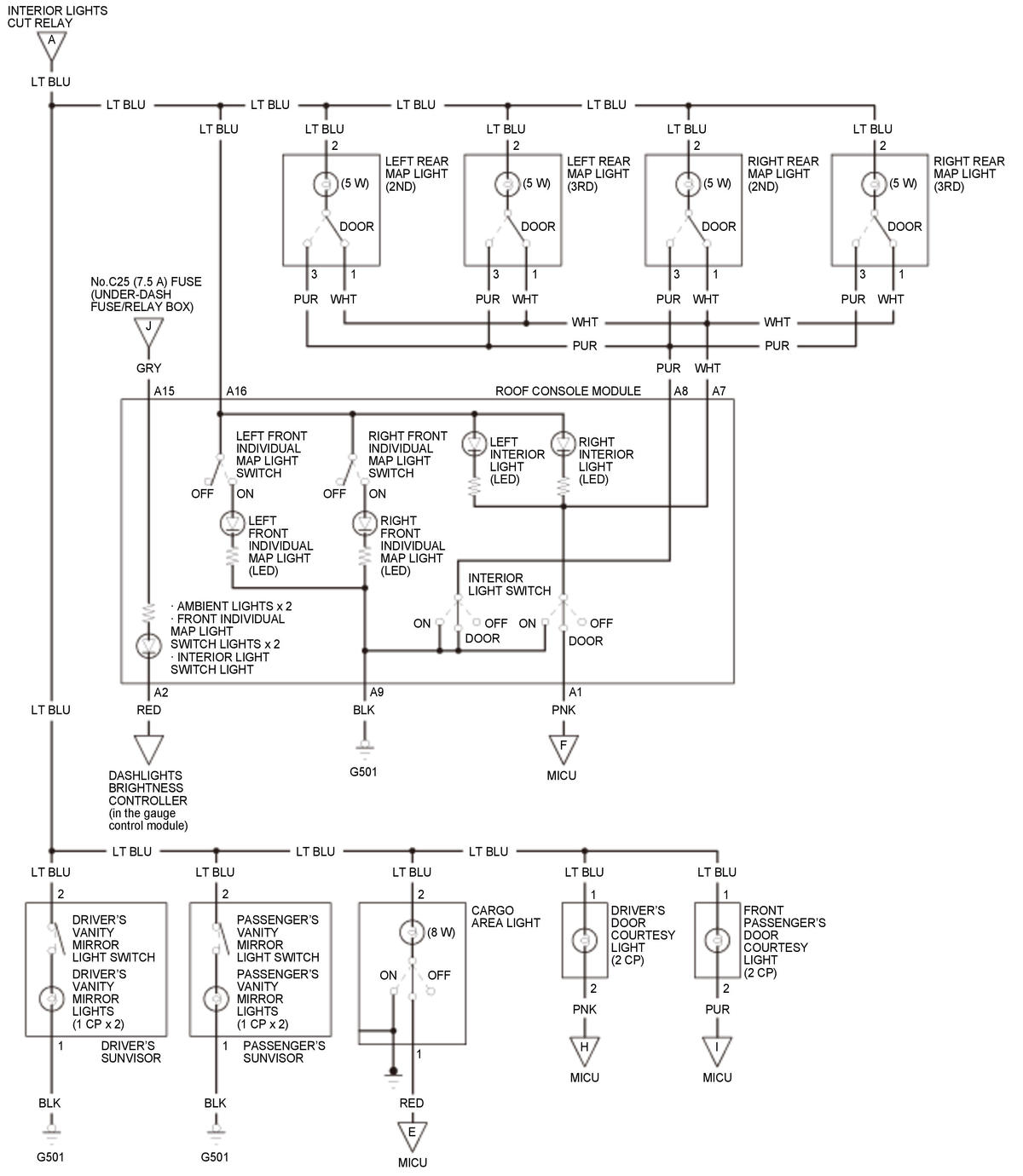

GHH310409

Courtesy of HONDA, U.S.A., INC.

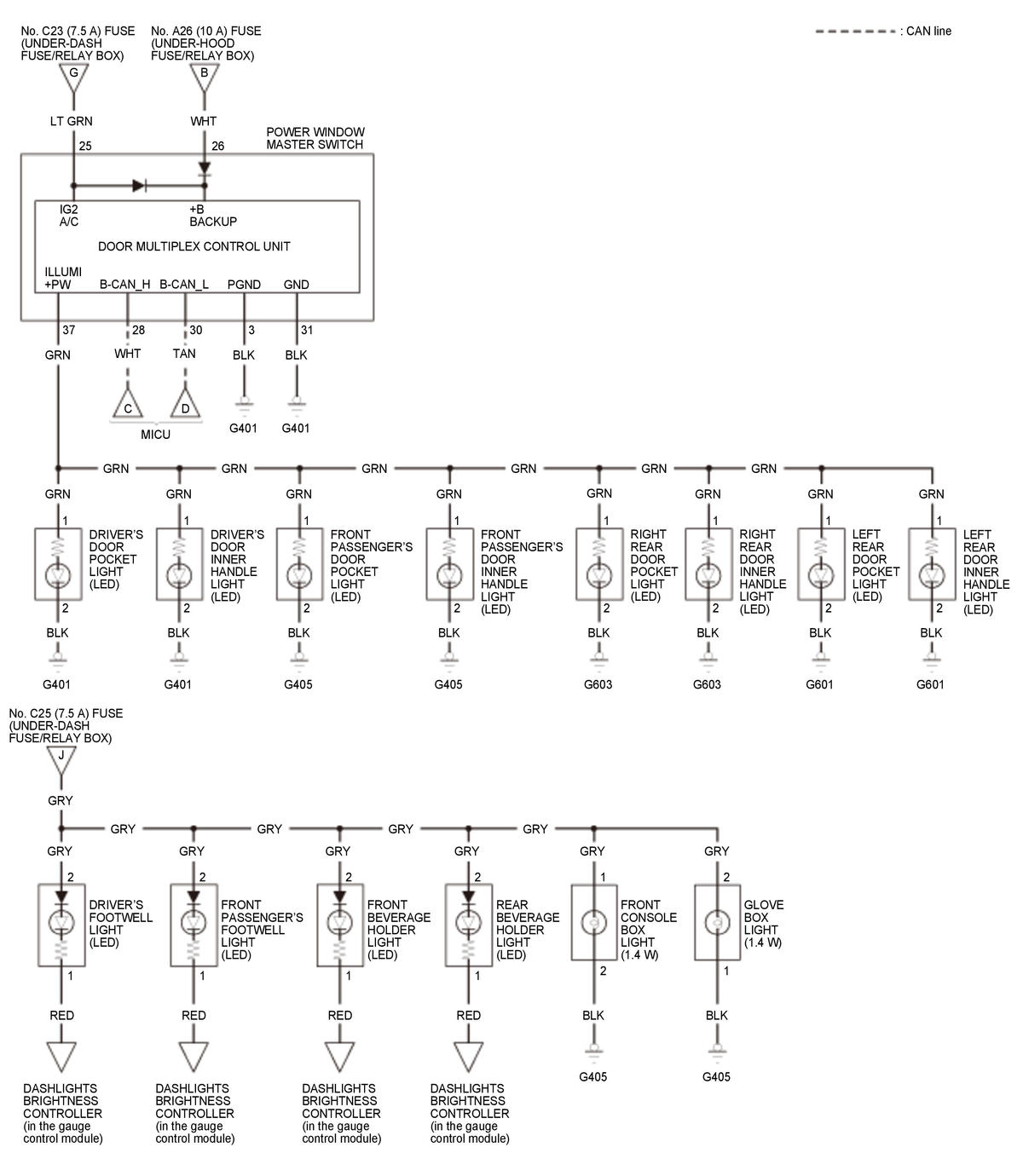

GHH310410

Courtesy of HONDA, U.S.A., INC.
