Interior Lighting - Testing & Troubleshooting
>>
Circuit Diagram
>>

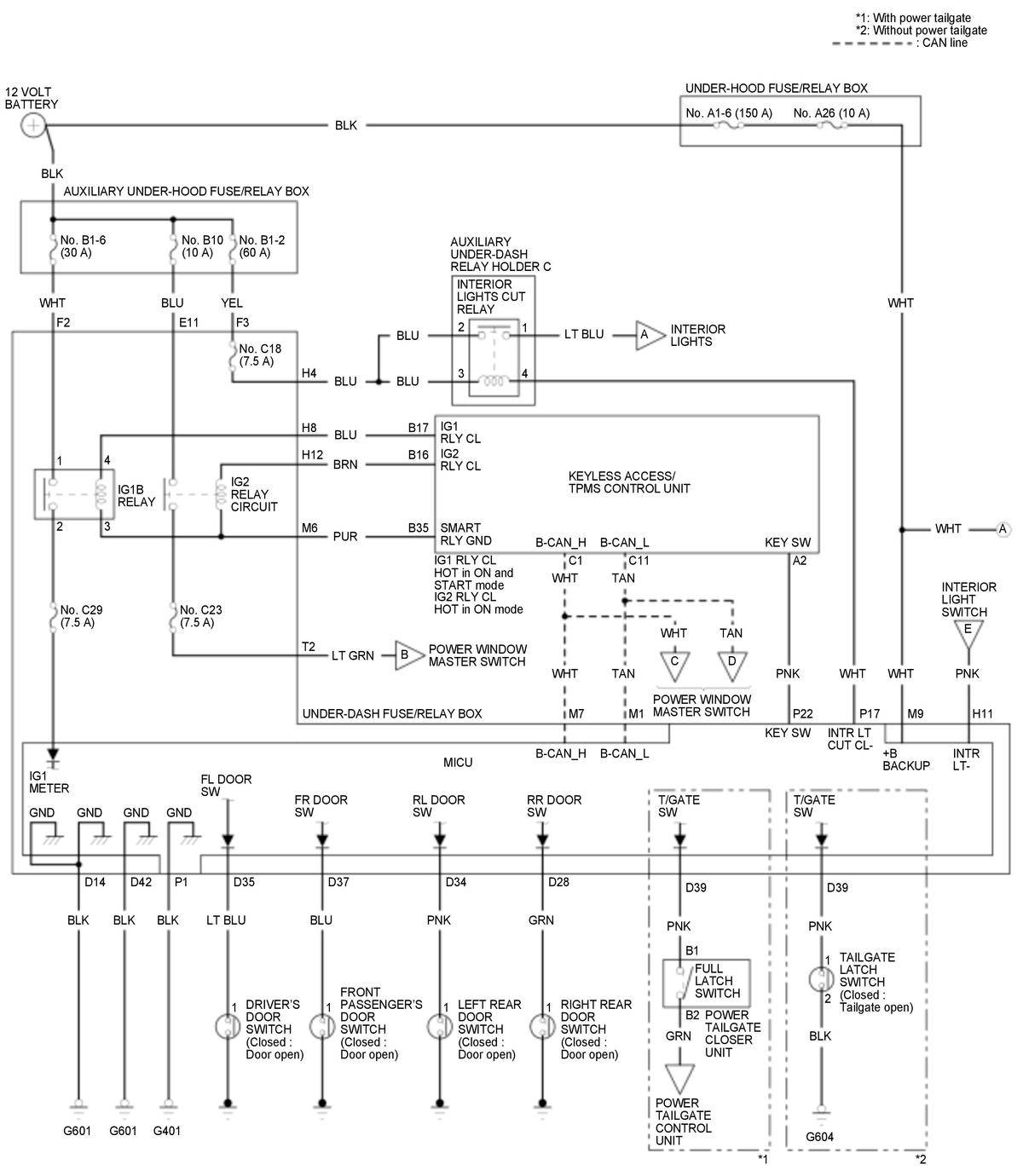

ENTRY LIGHTS CONTROL SYSTEM (WITHOUT Panoramic Glass Roof) (2019 2020 2021)

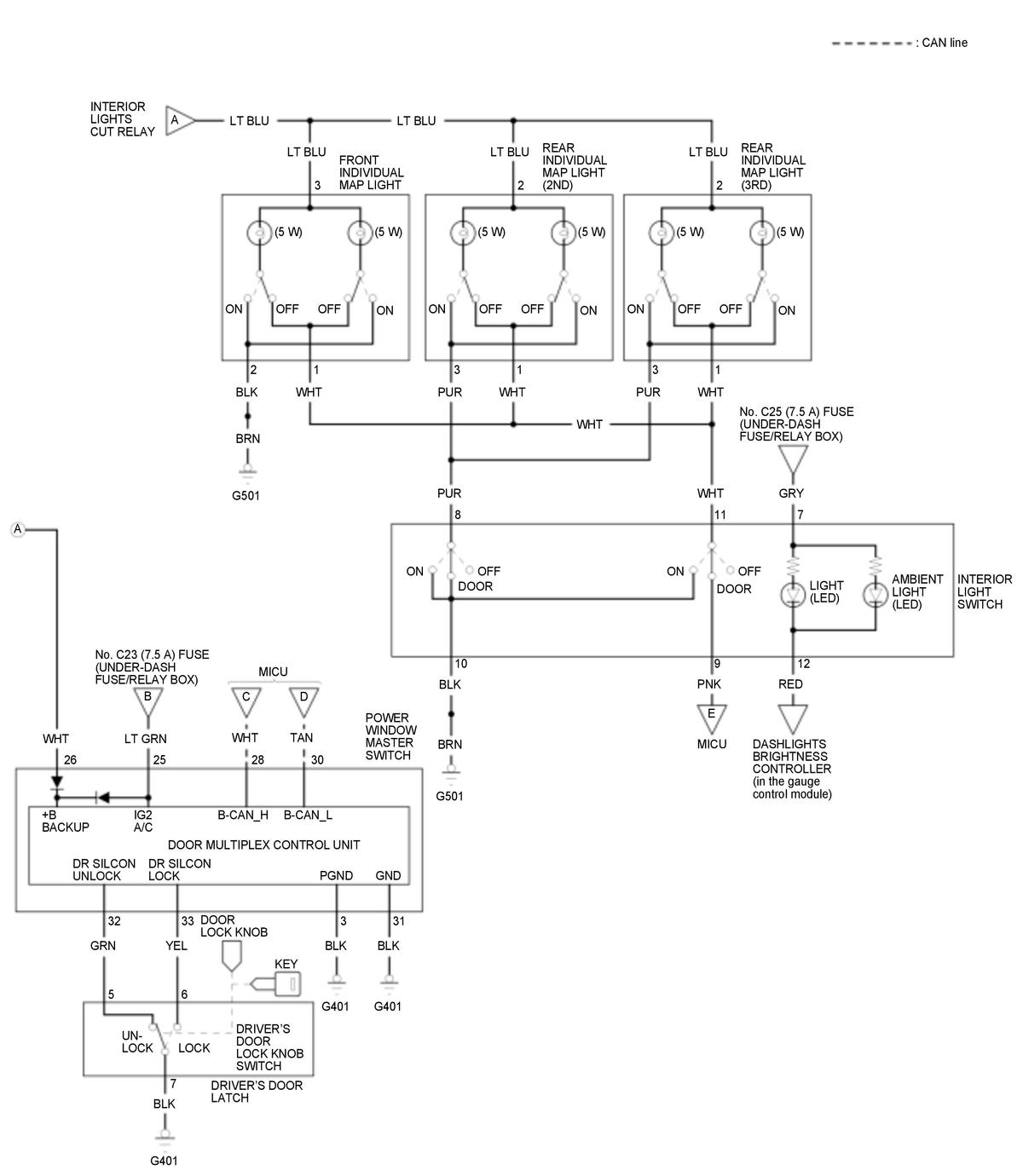

ENTRY LIGHTS CONTROL SYSTEM (WITHOUT Panoramic Glass Roof) (2019 2020 2021)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
