Interior Lighting - Testing & Troubleshooting
>>
Circuit Diagram
>>

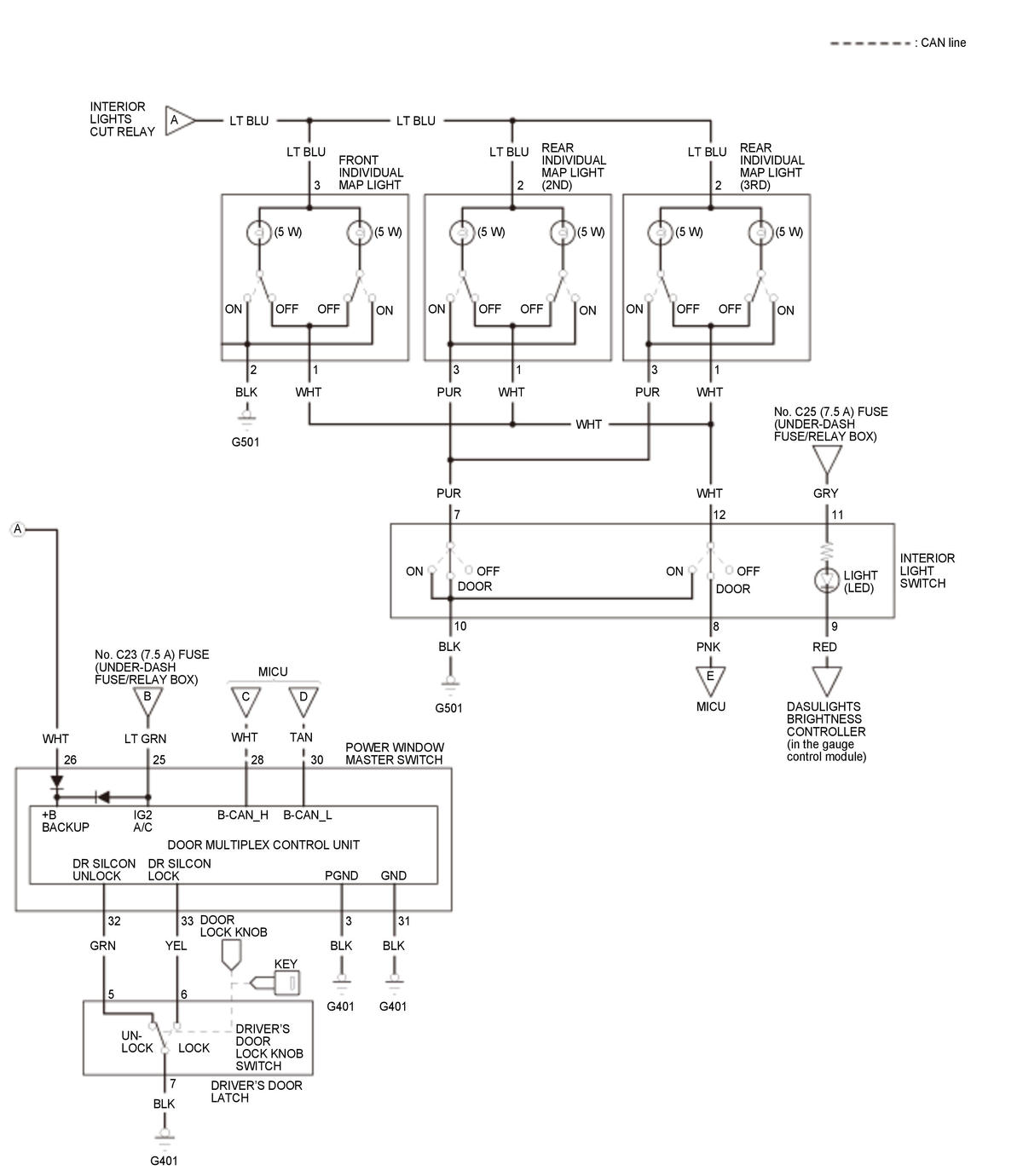

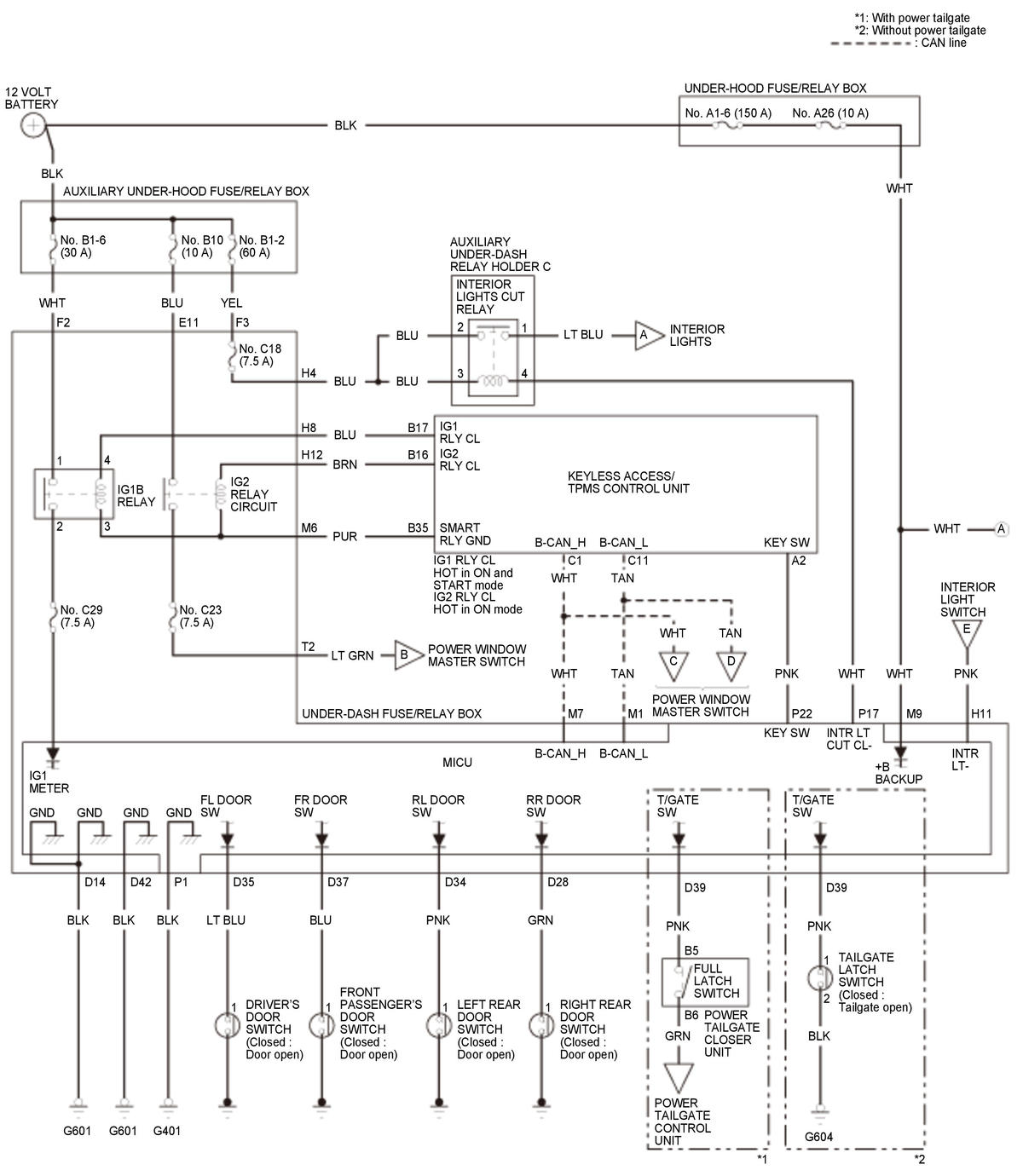

ENTRY LIGHTS CONTROL SYSTEM (WITHOUT Panoramic Glass Roof) (2016 2017 2018)
ENTRY LIGHTS CONTROL SYSTEM (WITHOUT Panoramic Glass Roof) (2016 2017 2018)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
