WIPERS/WASHERS (WITHOUT Auto Idle Stop System) (2019 2020 2021)

Windshield

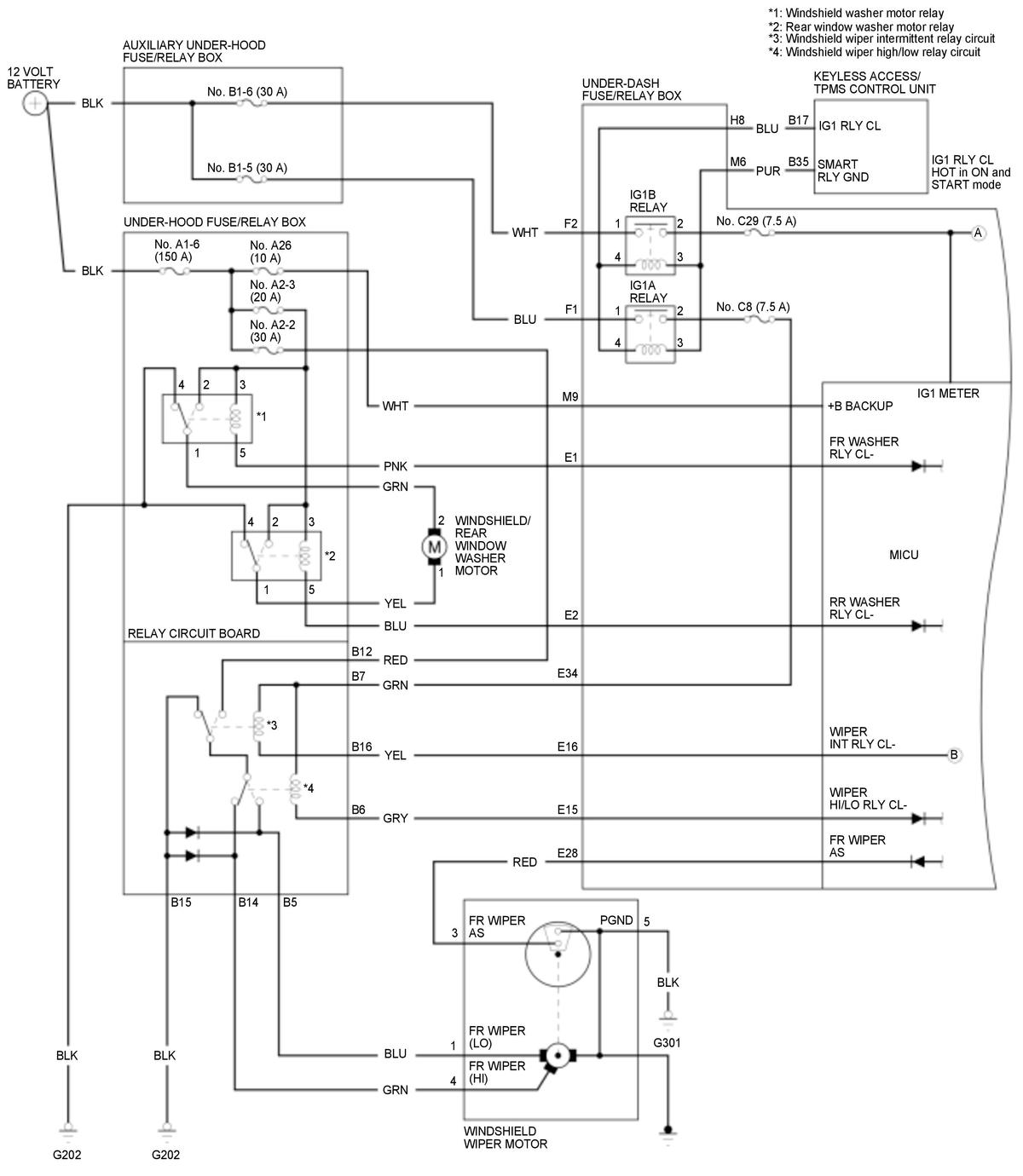

GHH309024Courtesy of HONDA, U.S.A., INC.

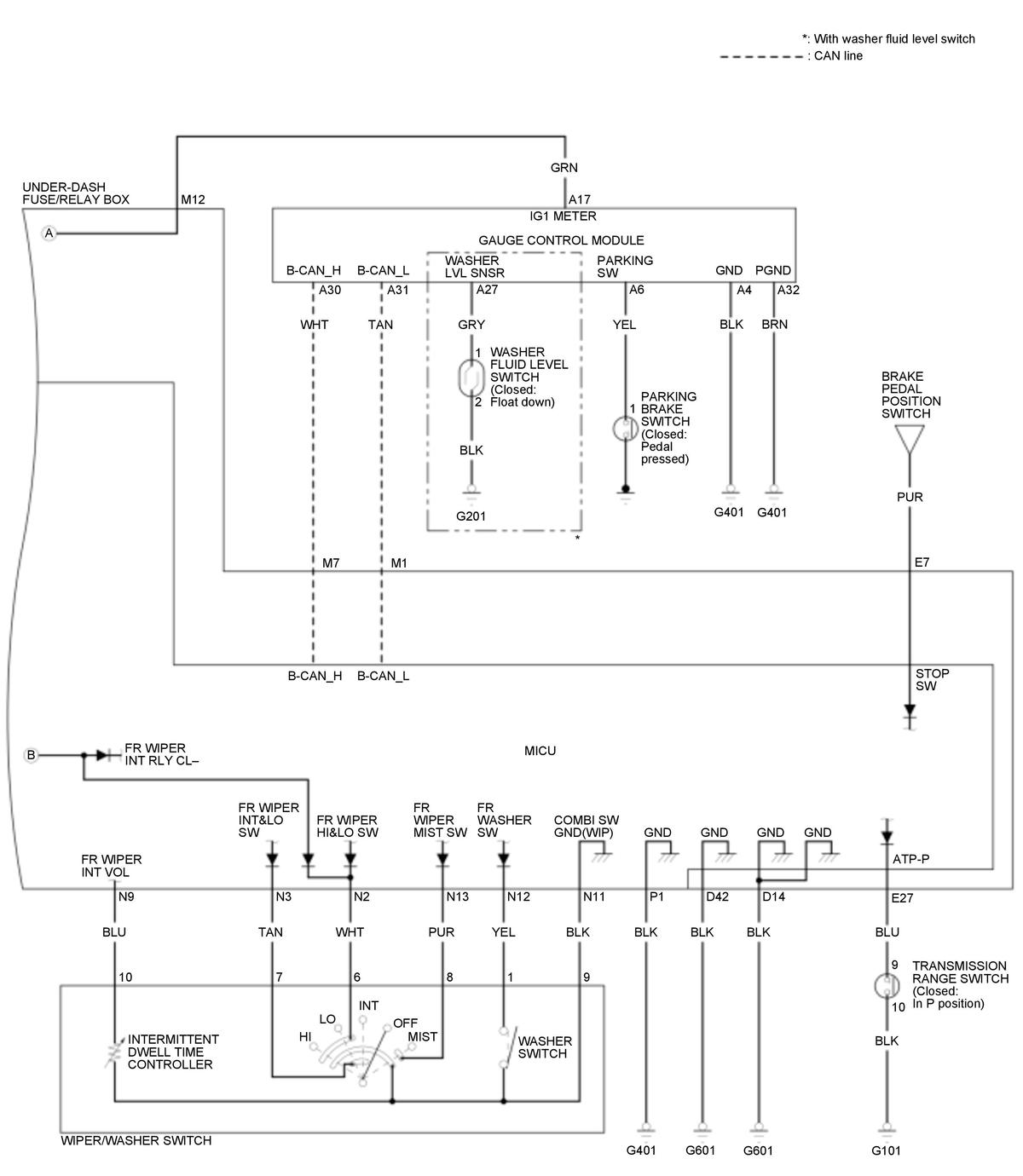

GHH309025Courtesy of HONDA, U.S.A., INC.

Rear window

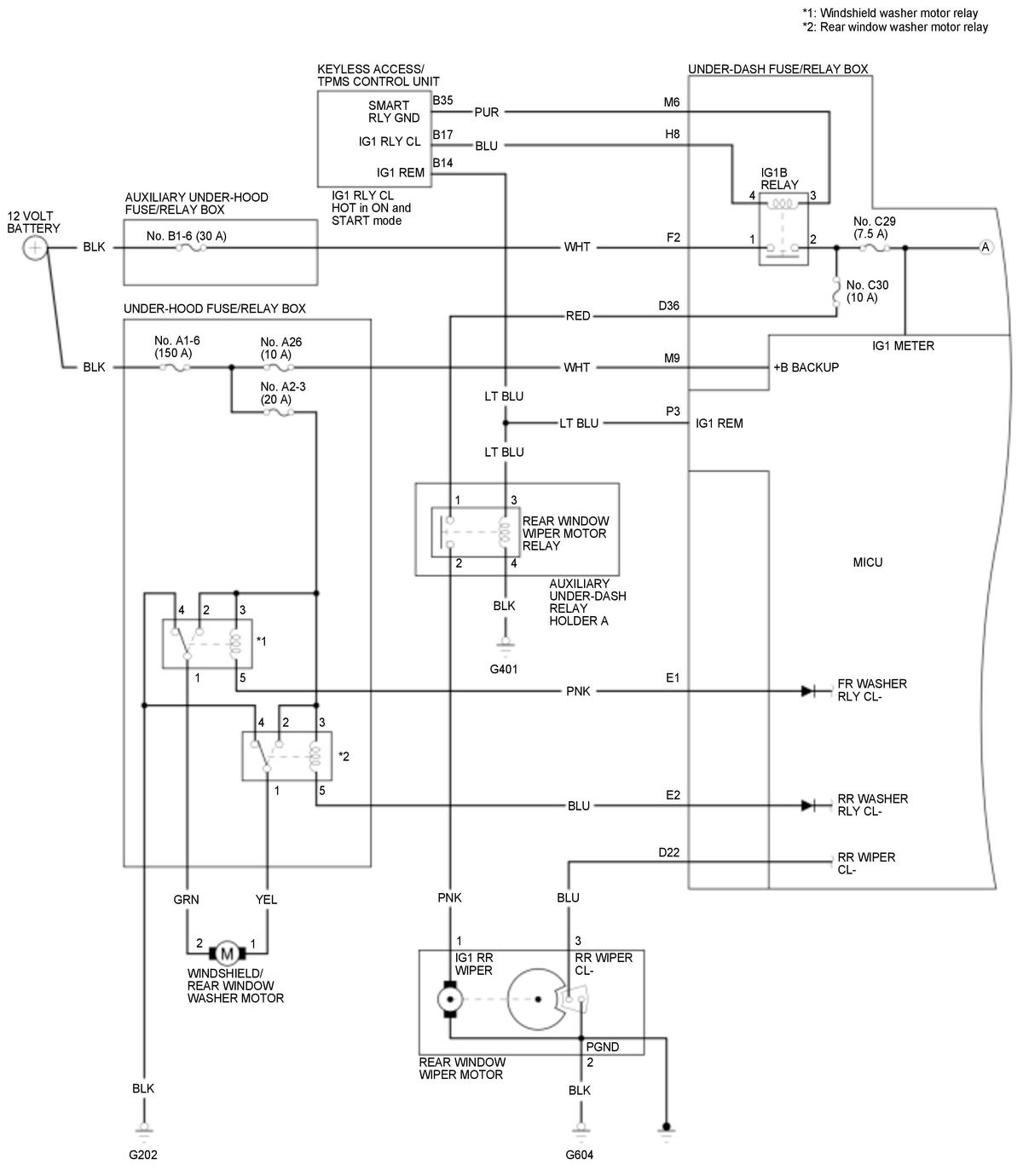

GHH309026Courtesy of HONDA, U.S.A., INC.

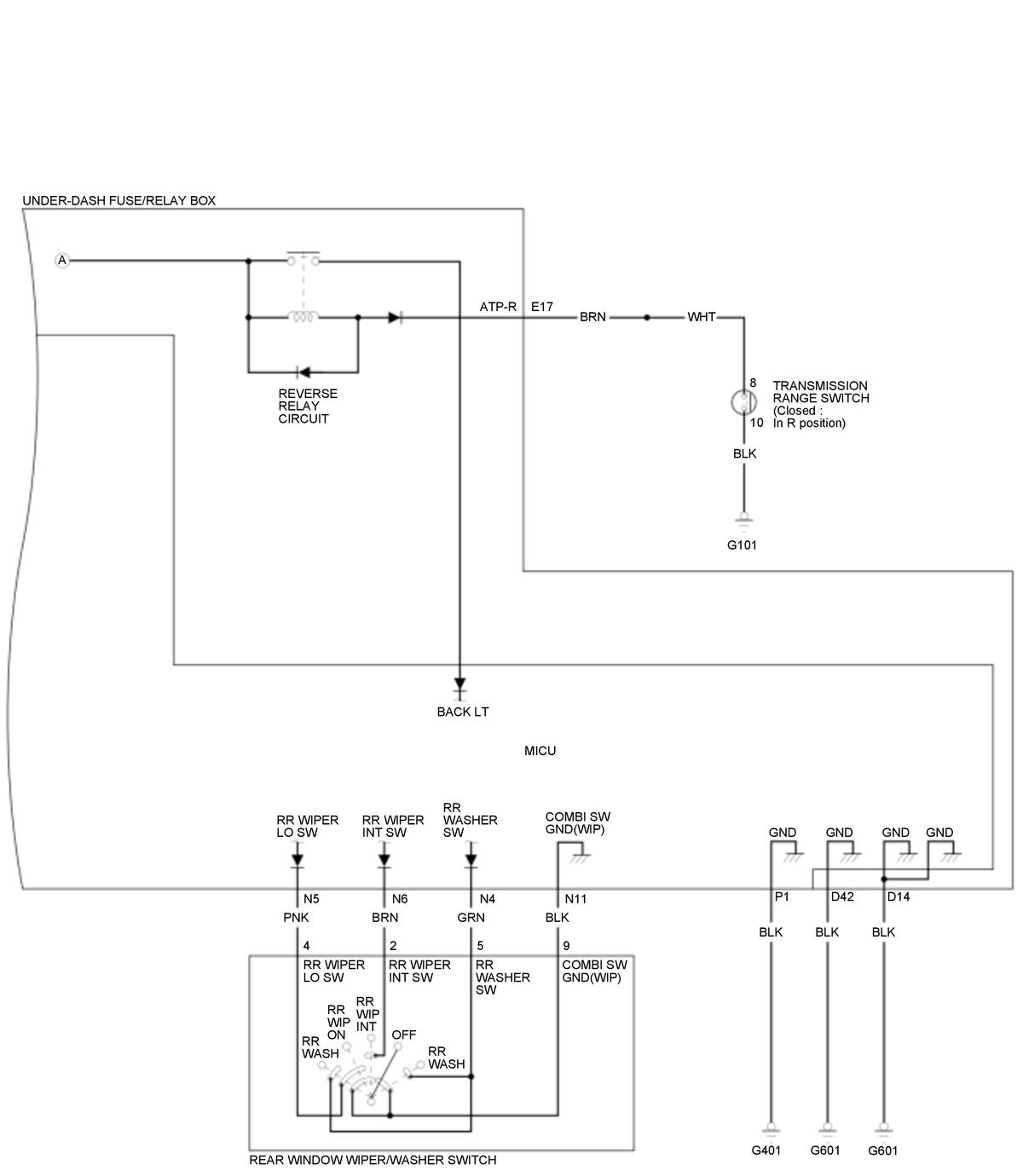

GHH309027Courtesy of HONDA, U.S.A., INC.
