WIPERS/WASHERS (WITHOUT Auto Idle Stop System) (2016 2017 2018)

Windshield

GHH309015Courtesy of HONDA, U.S.A., INC.

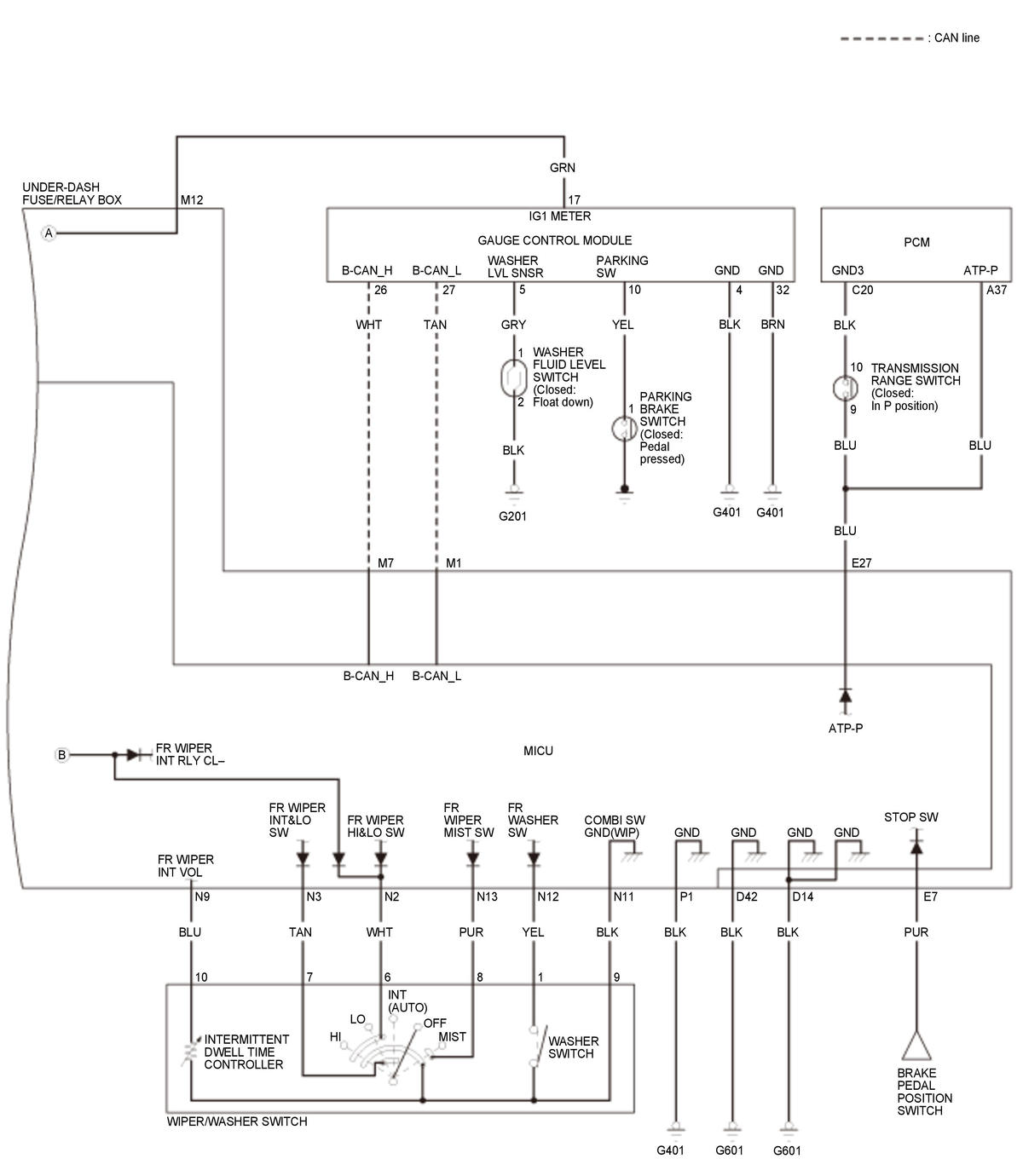

GHH309016Courtesy of HONDA, U.S.A., INC.

Rear window

GHH309017Courtesy of HONDA, U.S.A., INC.

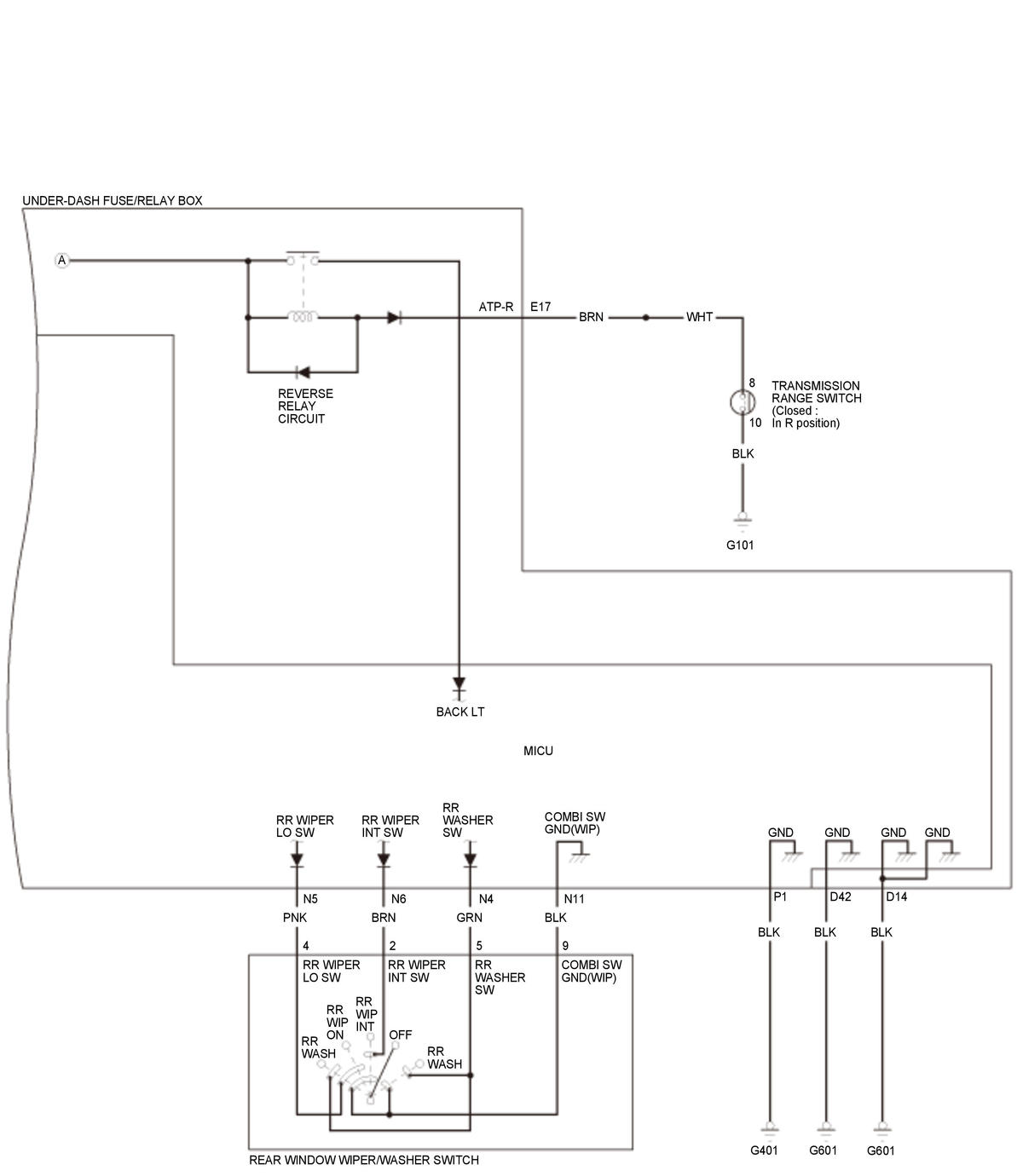

GHH309018Courtesy of HONDA, U.S.A., INC.
