Circuit Diagram
>>

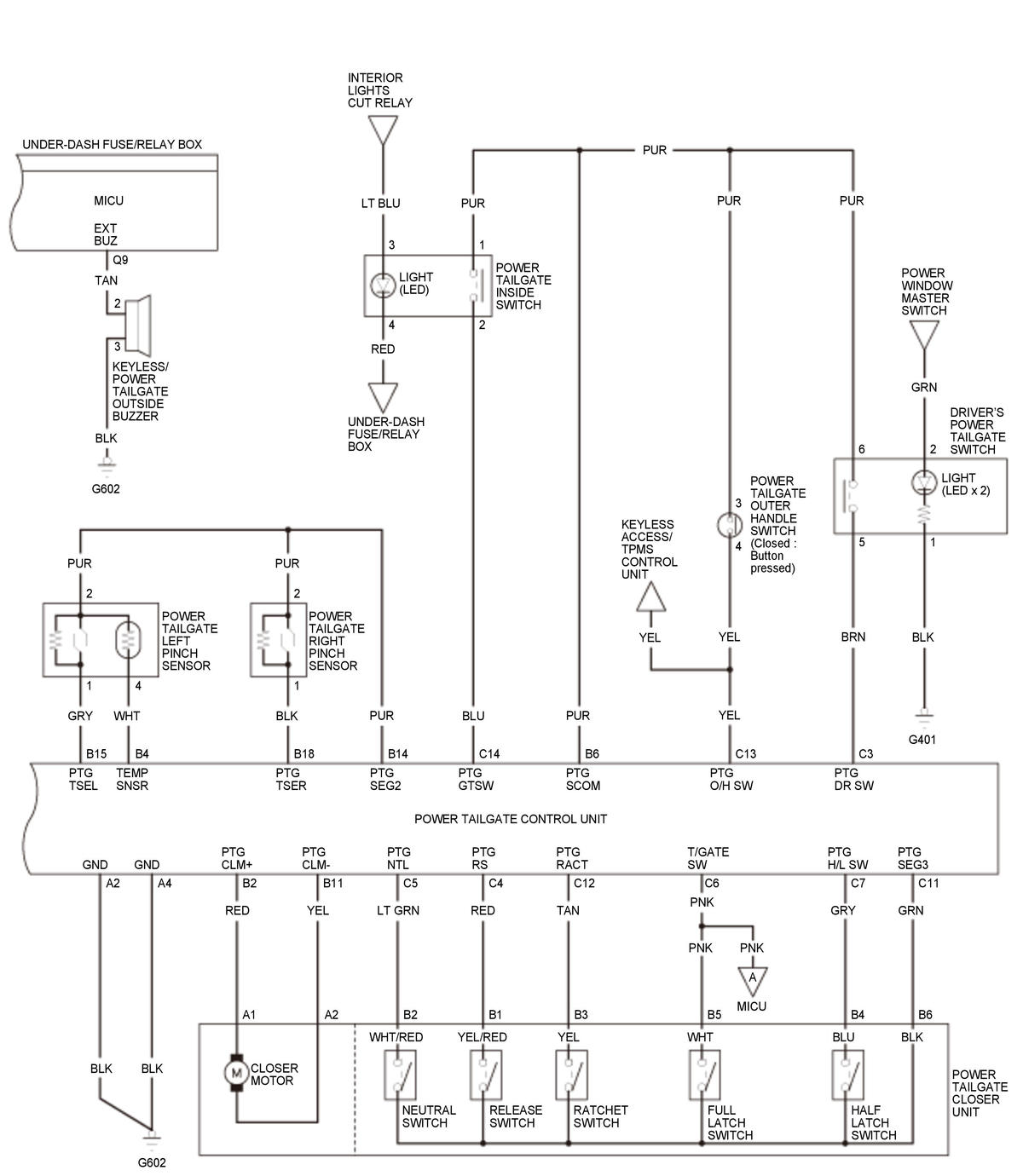

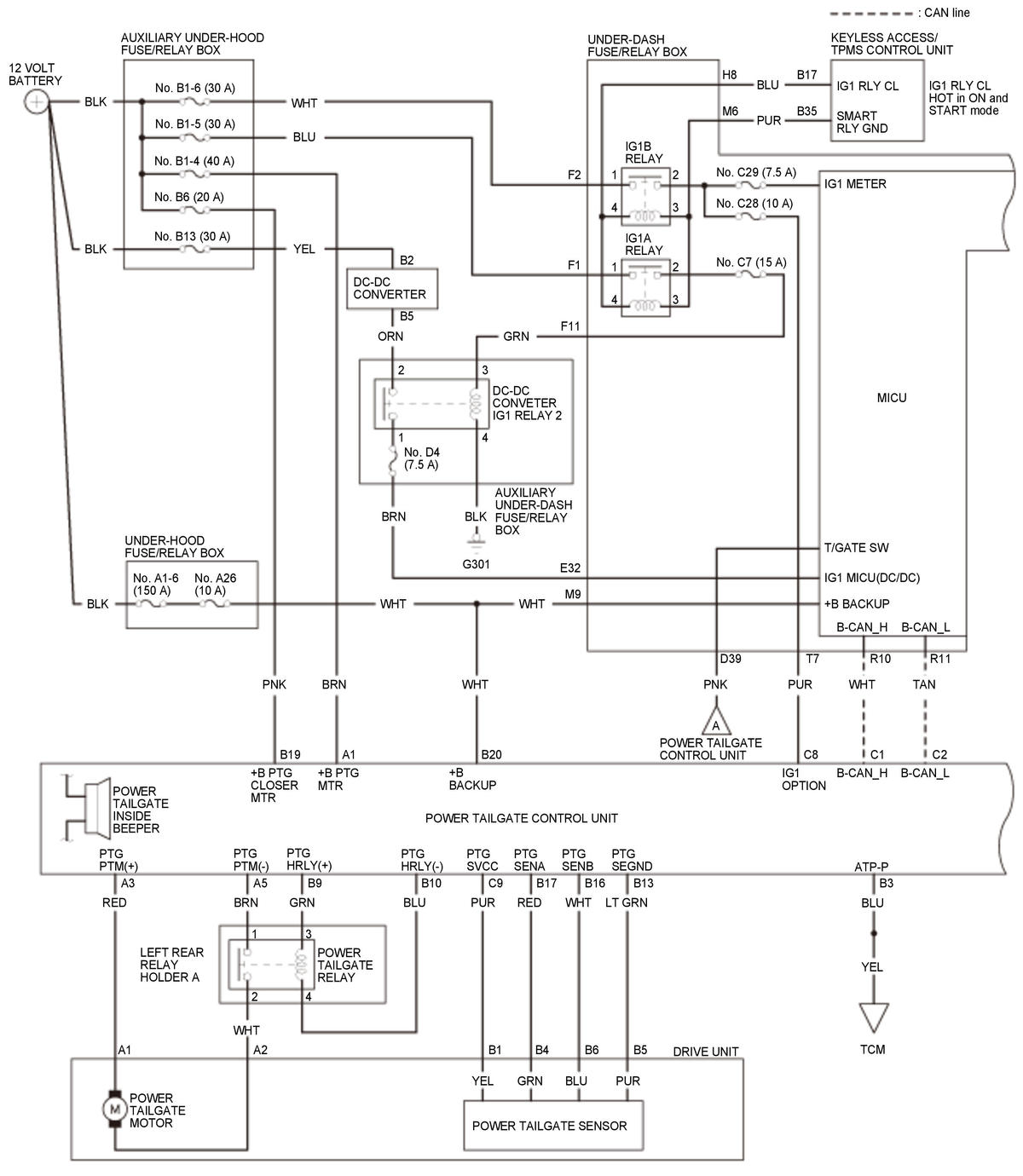

POWER TAILGATE (WITH Auto Idle Stop System) (2016 2017 2018)
POWER TAILGATE (WITH Auto Idle Stop System) (2016 2017 2018)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
