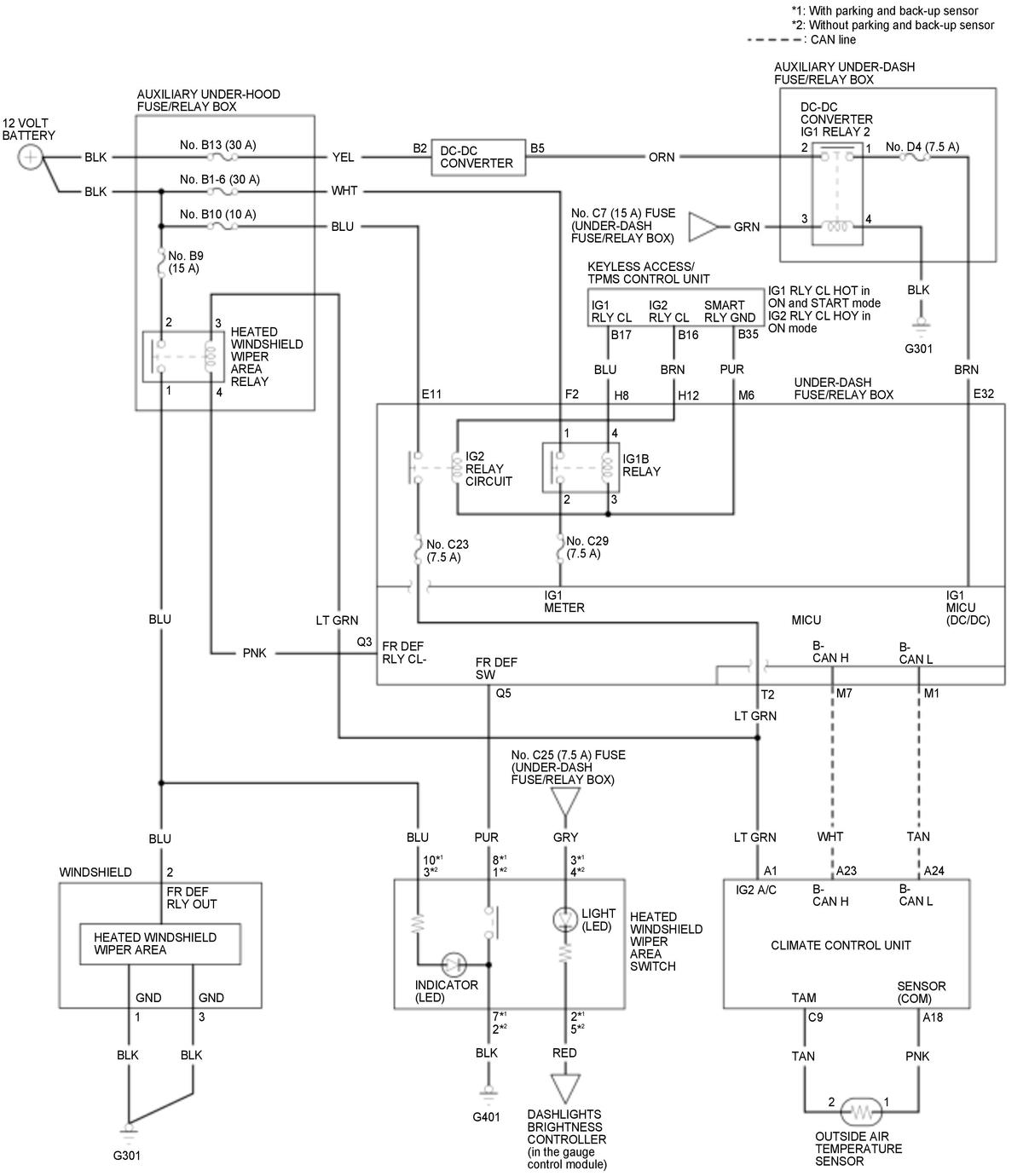

Circuit Diagram
>>
HEATED WINDSHIELD WIPER AREA (WITH Auto Idle Stop System)
HEATED WINDSHIELD WIPER AREA (WITH Auto Idle Stop System)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
