Removal and Installation

SRS components are located in this area. Review the SRS component locations - Refer to:

SRS Component Location Index (2017 2018 2019 2020 2021) or

SRS Component Location Index (2016) and

The Precautions And Procedures before doing repairs or service.

1. Right Side C Pillar Trim - Remove - Refer to:

Interior Trim Removal and Installation - Door Areas or

Interior Trim Removal and Installation - Pillar Areas or

Interior Trim Removal and Installation - Rear Side Area, or

Interior Trim Removal and Installation - Cargo Areas, or

Interior Trim Removal and Installation - Tailgate Areas .

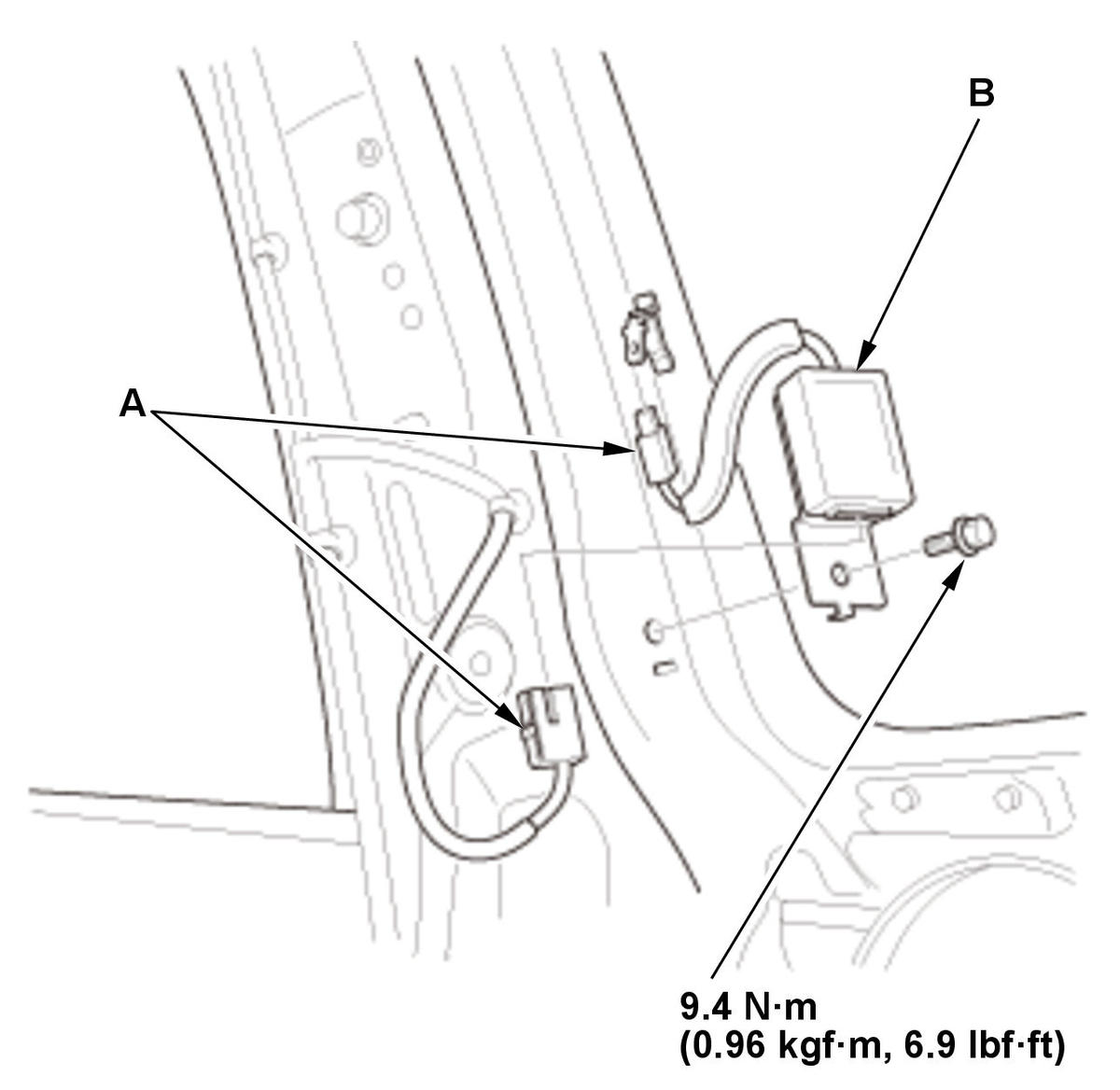

2. AM/FM Antenna Amplifier - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Disconnect the connectors (A). 2. Remove the AM/FM antenna amplifier (B).

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
