DIAGNOSTIC MODE (5-inch Screen) (2019 2020 2021): Camera: Notes

This screen checks the rearview camera image, and adjusts the guideline.

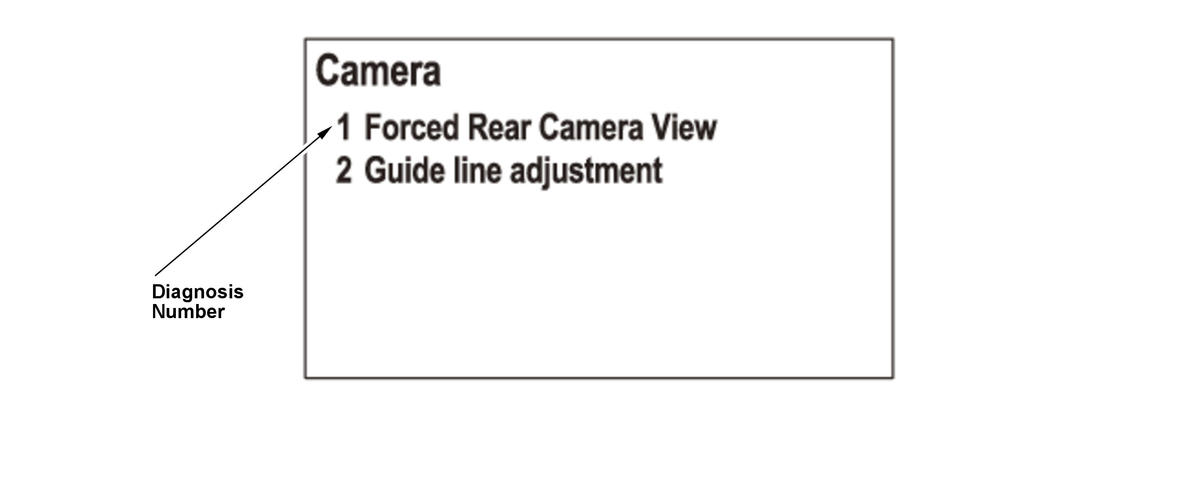

To start the diagnosis, press the preset button to select the diagnosis number you want to check.

• Preset No. 1 button: Forced Rear Camera View
• Preset No. 2 button: Guideline adjustment
