Guide Line Adjustment

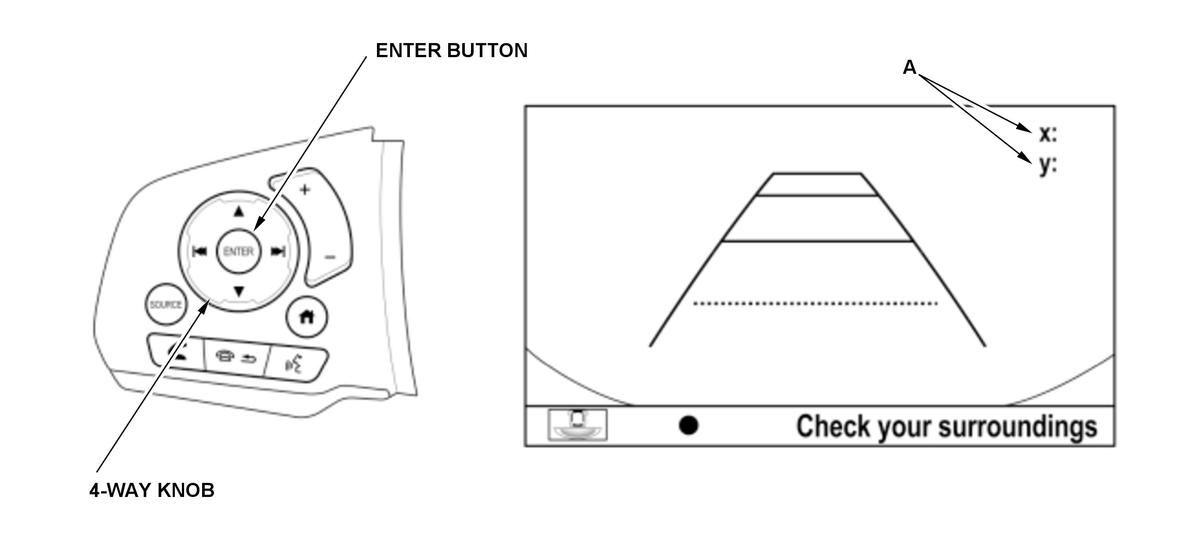

This diagnostic adjusts the rearview camera image guide lines. If you need to adjust a guide line, select the point you want to adjust using the ENTER button on the audio remote-HFL switch. To adjust the point up/down or right/left use the directional pad on the audio remote switch. Press the ENTER button when the edit point is in its desired position.

The coordinate of the guide line (A) indicates the selected point position on the screen.

If you need to reset the guide line to the factory settings, press and hold the SELECT button for more than 2 seconds.

Courtesy of HONDA, U.S.A., INC.

If you want to keep the setting, press the SELECT button that is on the audio panel, then press the AUDIO POWER ( ) button to exit the system diagnostic mode.
