Exterior Lights - Led Headlight Does Not Go Off
- Combination light switch OFF position check
-1. Connect the HDS to the data link connector (DLC). How to Connect the HDS
- 2. Turn the combination light switch OFF.
- 3. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit Headlight Switch (HEADLIGHT) OFF Is data list values correct?
YES
Go to step 4.
NO
Go to step 2.
- Combination light switch check
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Do the combination light switch test. Combination Light Switch - Test
Is the switch OK?
YES
Go to step 3.
NO
Replace the Combination Light Switch - Removal and Installation .
- Shorted wire check (H/L ON SW line)
-1. Disconnect the following connector(s).
Under-dash fuse/relay box connector N (20P) Automatic lighting/rain sensor 5P connector*1 Automatic lighting control unit-sensor 5P connector*2 *1: With automatic wiper
*2: Without automatic wiper

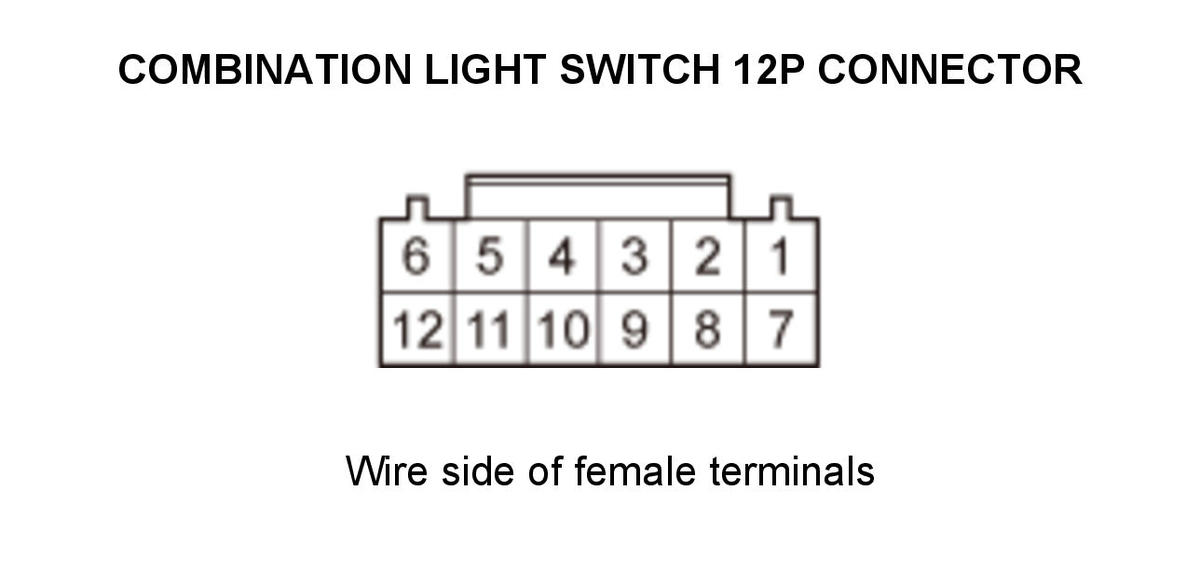

- 2. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode
Combination light switch 12P connector: disconnected
Under-dash fuse/relay box connector N (20P): disconnected
Automatic lighting/rain sensor 5P connector*1: disconnected
Automatic lighting control unit-sensor 5P connector*2: disconnectedTest point 1 Combination light switch 12P connector No. 7 Test point 2 Body ground *1: With automatic wiper
*2: Without automatic wiper
Is there continuity?
YES
Repair a short to ground in the wire.
NO
The H/L ON SW wire is OK. Faulty MICU; replace the Under-Dash Fuse/Relay Box - Removal and Installation .
- Headlight relay check
-1. Do the headlight relay test.
Power Relay Test (2016 2017 2018) or
Power Relay (2019 2020 2021) .
Is the headlight relay OK?
YES
Repair a short to power in the wire. If wire is OK, then faulty MICU; replace the Under-Dash Fuse/Relay Box - Removal and Installation .
NO
Replace the headlight relay.
