Exterior Lights (MICU) (2016 2017 2018)
NOTE:
- If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A - Refer to:
- Before testing, make sure the No. A4 (10 A), No. A8 (10 A), No. A10 (10 A), No. A13 (20 A), and No. A26 (10 A) fuses in the under-hood fuse/relay box are OK.
- Before testing, make sure the No. C21 (7.5 A), No. C29 (7.5 A), No. C37 (10 A), and No. C38 (10 A) fuses in the under-dash fuse/relay box are OK.
- Before testing, make sure the No. D4 (7.5 A)* fuse in the auxiliary under-dash fuse/relay box is OK.
*: With auto idle stop system
1. Turn the vehicle to the OFF (LOCK) mode.

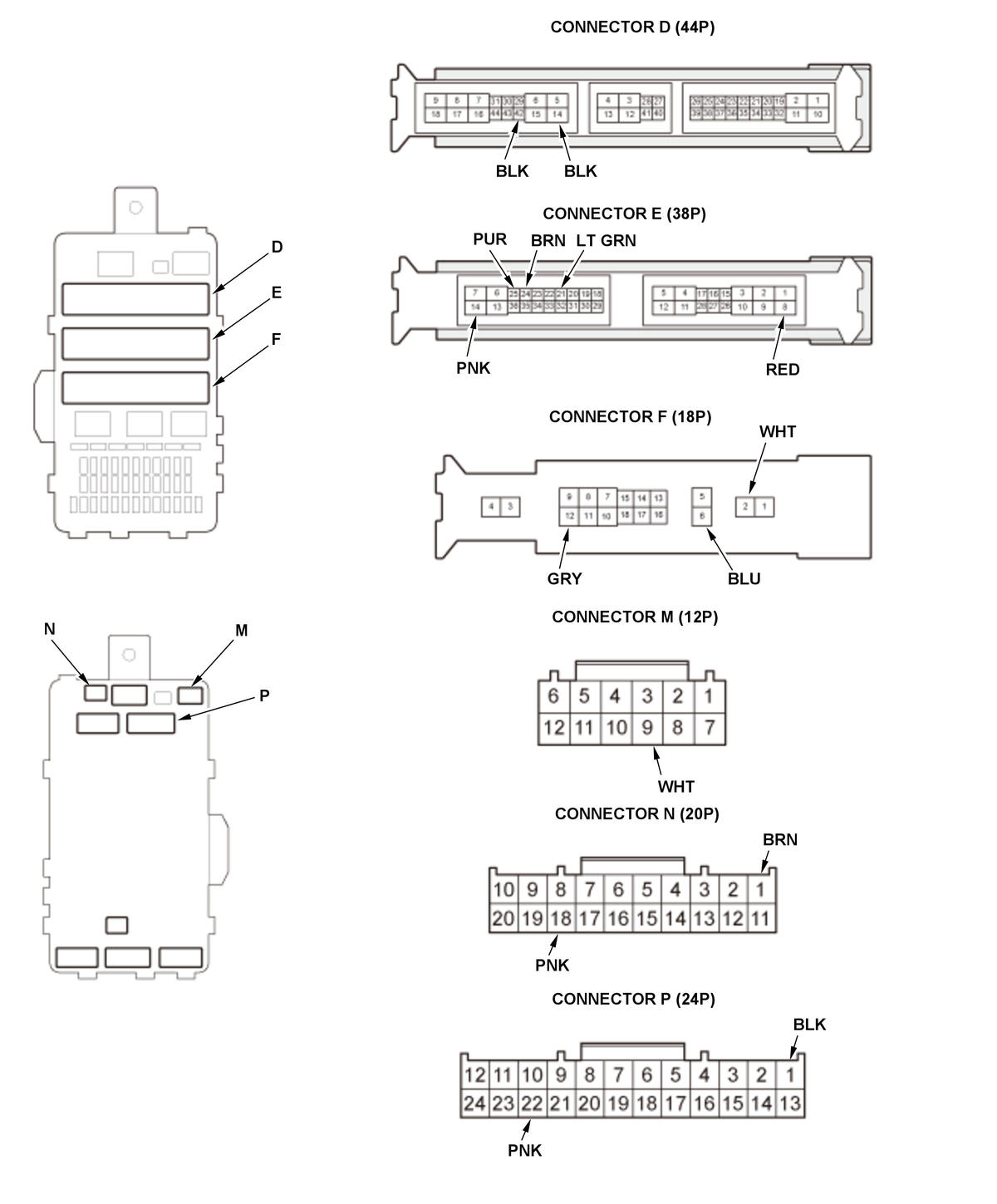

2. Disconnect the Under-Dash Fuse/Relay Box - Removal and Installation connectors D, E, F, M, N, and P
NOTE: All connector views are shown from the wire side of the female terminals.
3. Inspect the connector and socket terminals to be sure they are all making good contact:
- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals are OK, go to step 4.
4. With the connectors still disconnected, do the following input tests:
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.
| Cavity | Wire | Test condition | Test: Desired result | Possible cause if desired result is not obtained |
|---|---|---|---|---|
| E25 • E14 |
PUR • PNK |
Connect terminal E25 and ground with a jumper wire | Measure the voltage between terminal E14 and ground: There should be battery voltage. |
|
| E24 | BRN | Under all conditions | Connect terminal to ground with a jumper wire: The left headlight (low beam) should come on. |
|
| Connect terminal to ground with a jumper wire: The right headlight (low beam) should come on. |
|
|||
| F6 • E8 |
BLU • RED |
Under all conditions | Connect terminal F6 and E8 with a jumper wire: The left headlight (high beam) should come on. |
|
| F6 • F12 |
BLUGRY • F12 |
Under all conditions | Connect terminal F6 and F12 with a jumper wire: The right headlight (high beam) should come on. |
|
| E21 | LT GRN | Under all conditions | Connect terminal to ground with a jumper wire: The front fog lights should come on. |
|
*1: With LED headlight
*2: Without LED headlight
5. Reconnect the connectors to the under-dash fuse/relay box, do the following input tests:
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the MICU must be faulty; replace the Under-Dash Fuse/Relay Box - Removal and Installation .
| Cavity | Wire | Test condition | Test: Desired result | Possible cause if desired result is not obtained |
|---|---|---|---|---|
| M9 | WHT | Under all conditions | Measure the voltage to ground: There should be battery voltage. |
|
| F2 | WHT | Under all conditions | Measure the voltage to ground: There should be battery voltage. |
|
| D14 | BLK | In all power modes | Measure the voltage to ground: There should be less than 0.2 V. |
|
| D42 | BLK | In all power modes | Measure the voltage to ground: There should be less than 0.2 V. |
|
| P1 | BLK | In all power modes | Measure the voltage to ground: There should be less than 0.2 V. |
|
| P22 | PNK | Disconnect keyless access/TPMS control unit connector A (32P) | Check for continuity between terminal P22 and keyless access/TPMS control unit connector A (32P) terminal No. 2: There should be continuity. |
An open or high resistance in the wire |
| N18 • N1 |
PNK • BRN |
Combination light switch OFF | Measure the voltage between terminals N18 and N1: There should be less than 0.2 V. |
|
| Combination light switch in any position other than OFF | Measure the voltage between terminals N18 and N1: There should be about 5 V. |
|
||
| N20 N1 |
WHT BRN |
Combination light switch (PARKING position) ON | Measure the voltage between terminals N20 and N1: There should be less than 0.2 V. |
|
| Combination light switch OFF | Measure the voltage between terminals N20 and N1: There should be about 5 V. |
|
||
| N19 N1 |
BRN BRN |
Combination light switch (headlight) ON | Measure the voltage between terminals N19 and N1: There should be less than 0.2 V. |
|
| Combination light switch OFF | Measure the voltage between terminals N19 and N1: There should be about 5 V. |
|
||
| N17 N1 |
RED BRN |
Combination light switch lever pulled (Passing) | Measure the voltage between terminals N17 and N1: There should be less than 0.2 V. |
|
| Combination light switch lever released (OFF) | Measure the voltage between terminals N17 and N1: There should be about 5 V. |
|
||
| N16 • N1 |
LT BLU • BRN |
Combination light switch (Dimmer) in high beam position | Measure the voltage between terminals N16 and N1: There should be less than 0.2 V. |
|
| Combination light switch (Dimmer) in low beam position | Measure the voltage between terminals N16 and N1: There should be about 5 V. |
|
||
| N10 • N1 |
PUR • BRN |
Fog light switch ON | Measure the voltage between terminals N10 and N1: There should be less than 0.2 V. |
|
| Fog light switch OFF | Measure the voltage between terminals N10 and N1: There should be about 5 V. |
|
