Exterior Lighting - Testing & Troubleshooting
>>
Description
>>

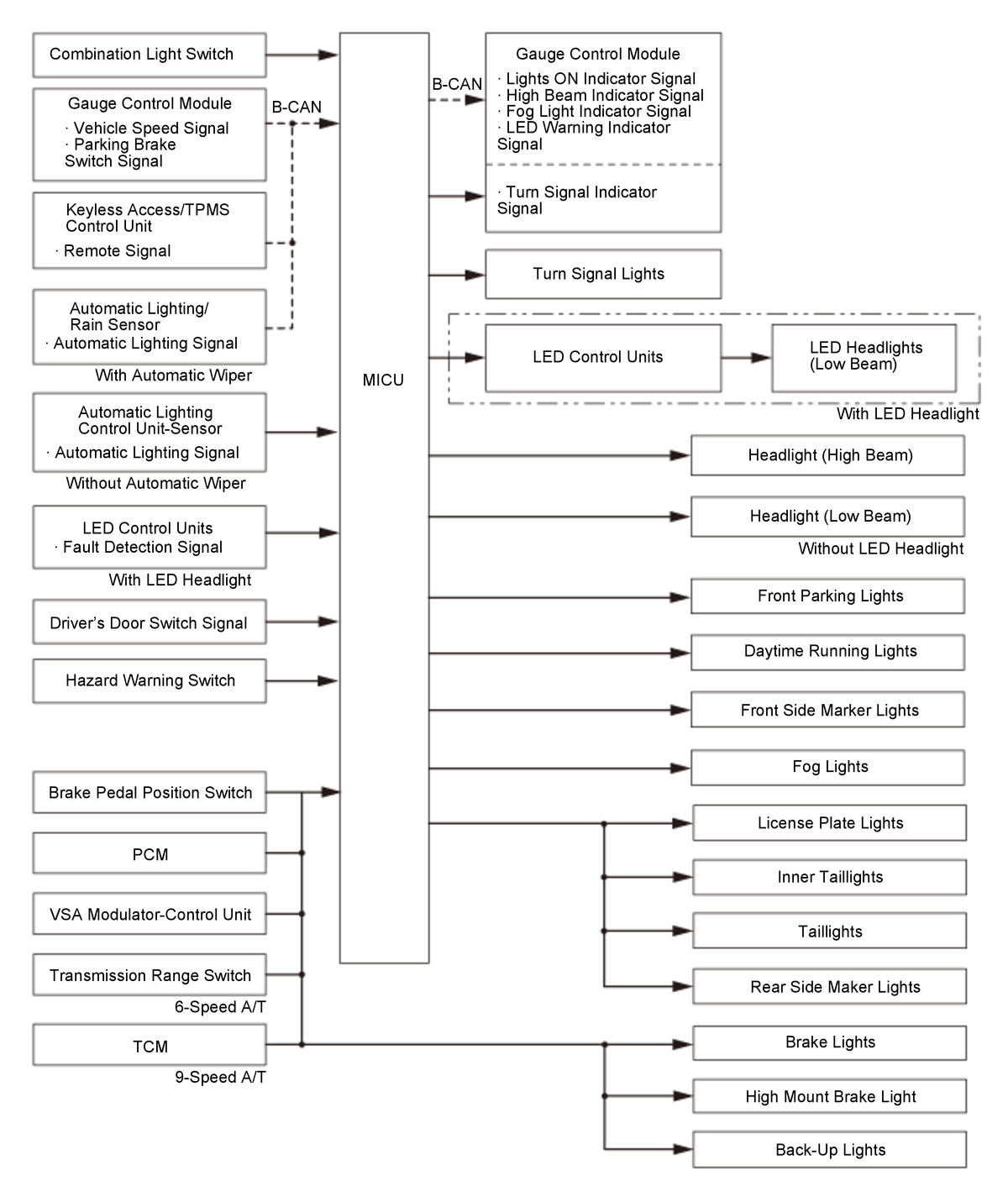

Exterior Lights System - System Diagram (2016 2017 2018)
Exterior Lights System - System Diagram (2016 2017 2018)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
