Circuit Diagram
>>

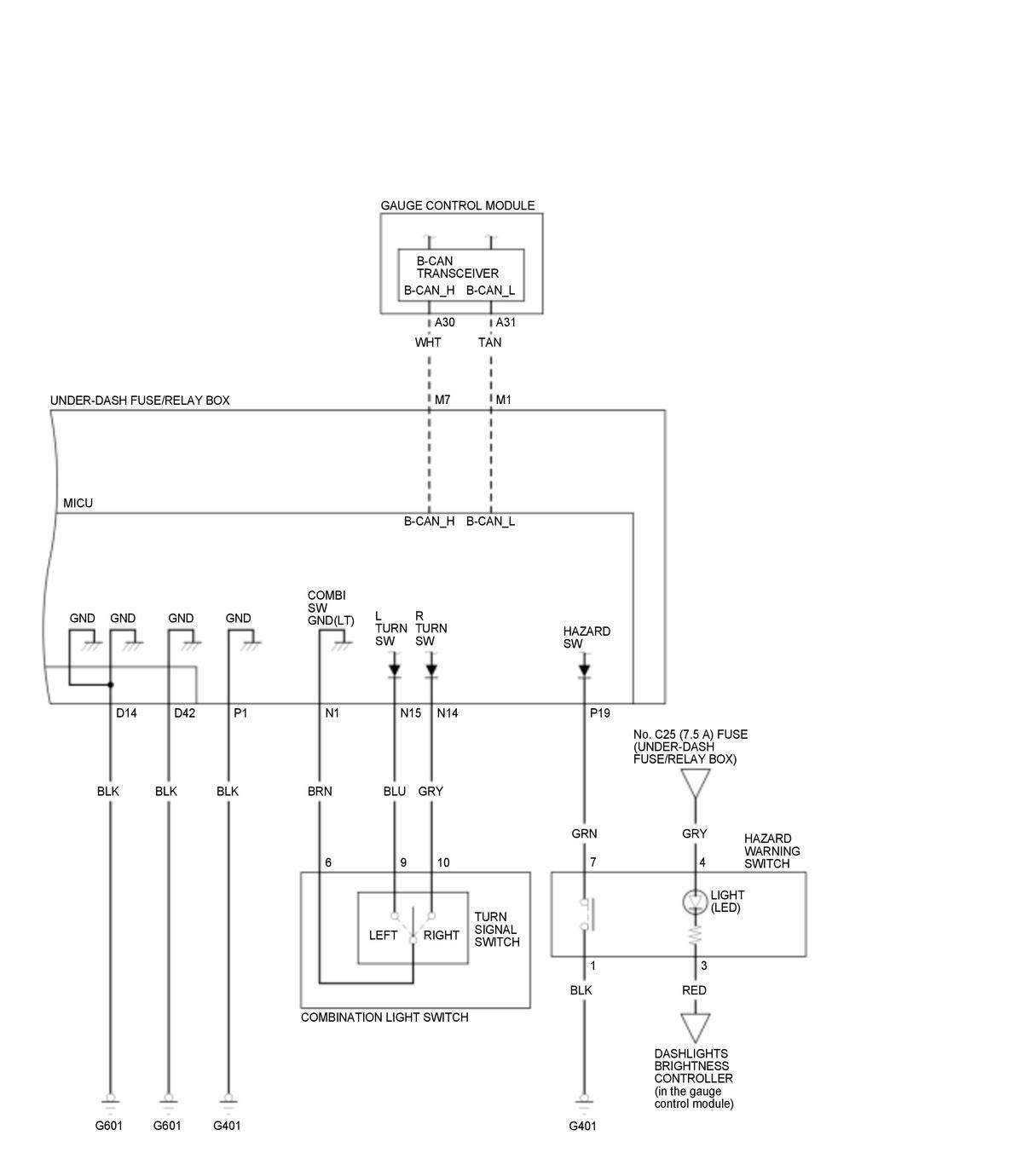

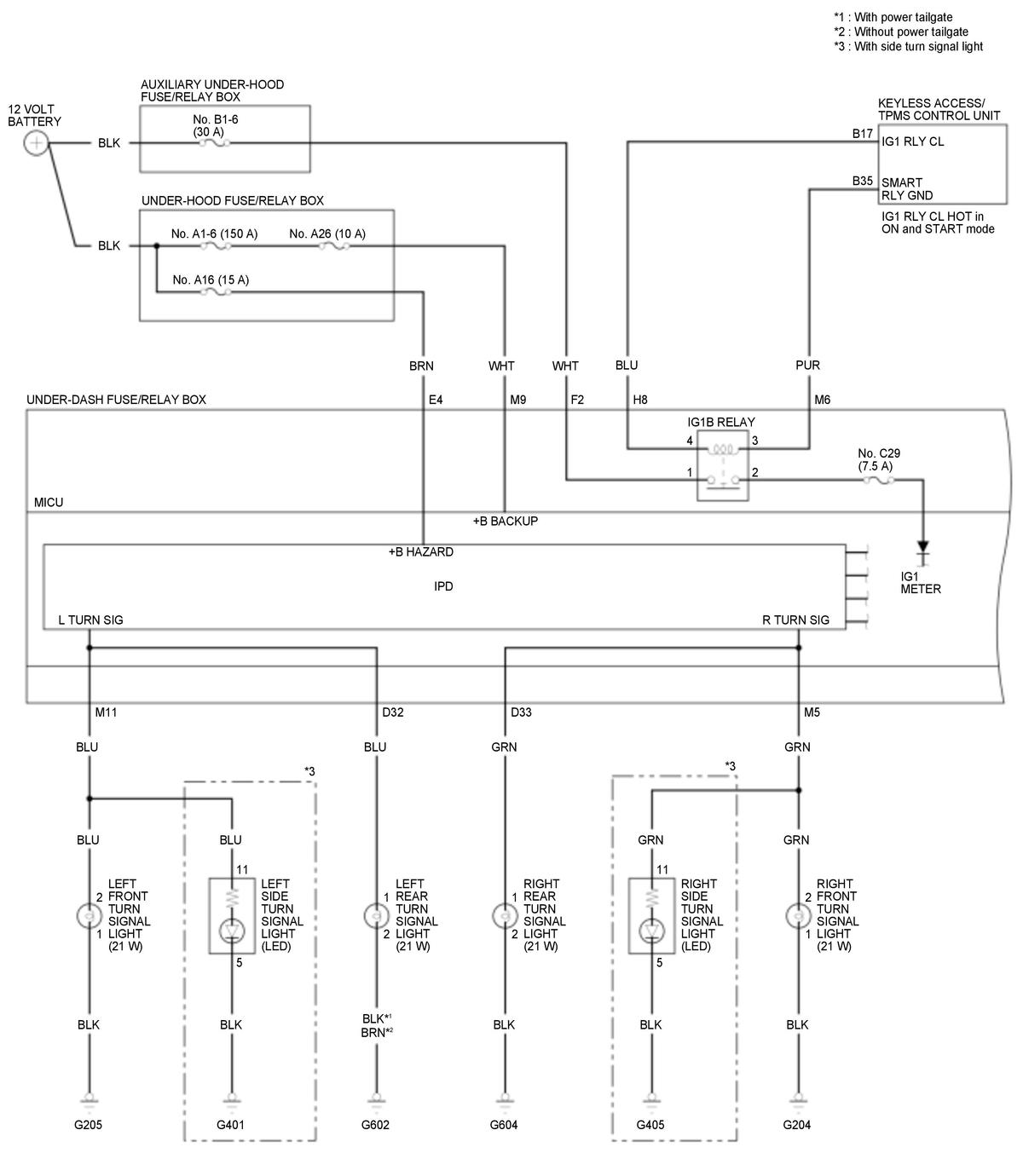

Turn Signal/Hazard Warning Lights (2019 2020 2021)
Turn Signal/Hazard Warning Lights (2019 2020 2021)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
