Exterior Lighting - Testing & Troubleshooting
>>
Circuit Diagram
>>

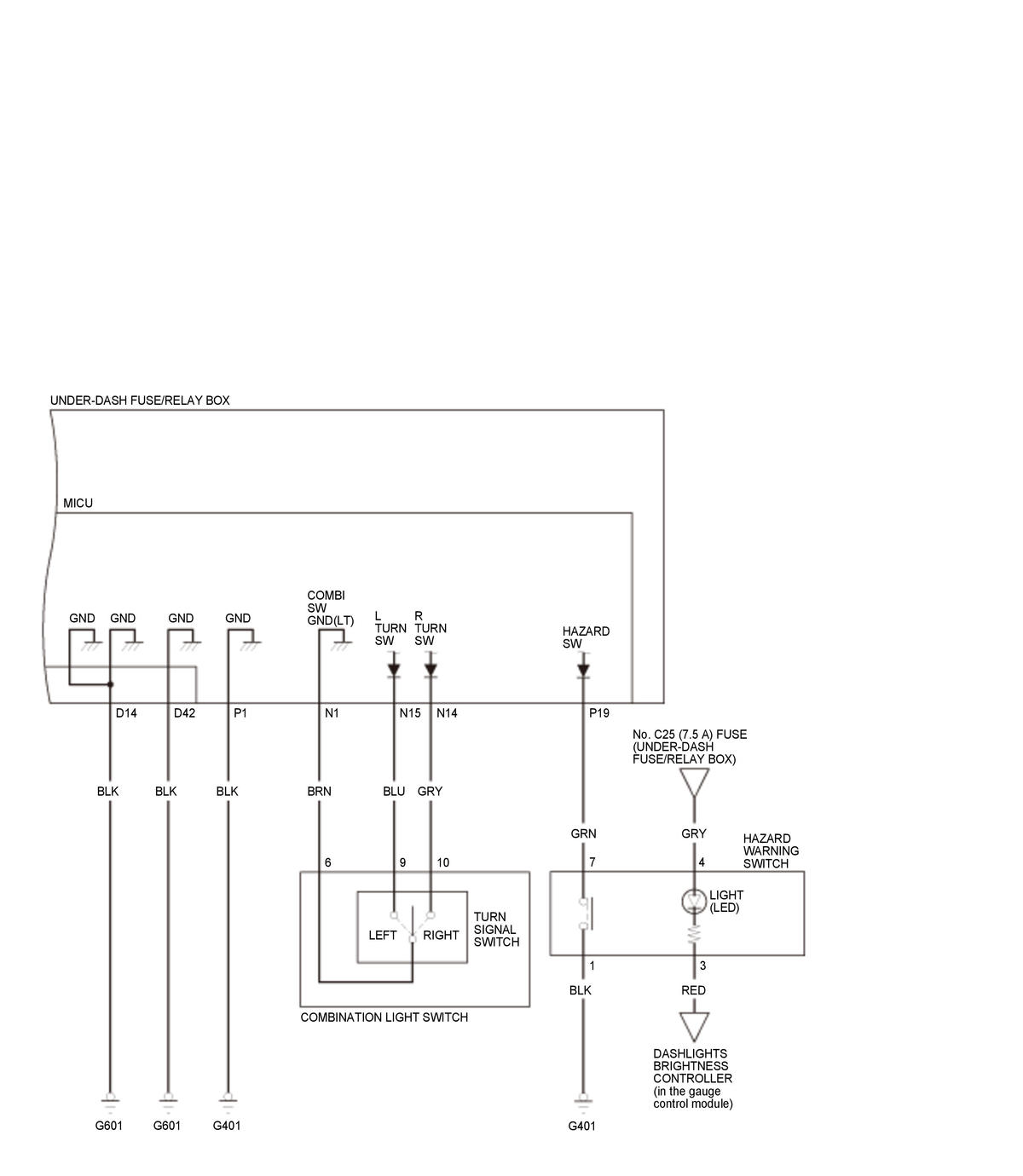

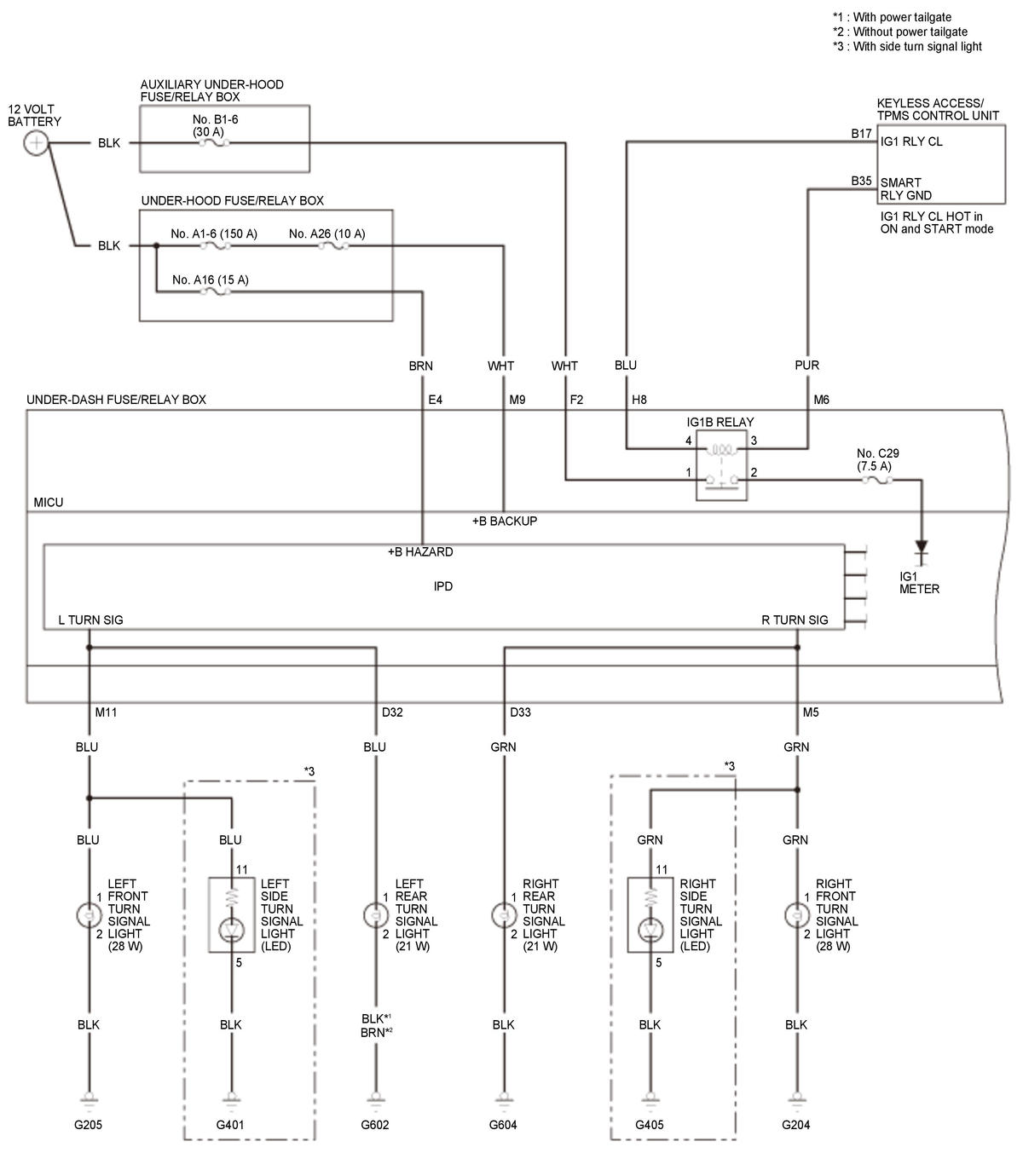

Turn Signal/Hazard Warning Lights (2016 2017 2018)
Turn Signal/Hazard Warning Lights (2016 2017 2018)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
