Exterior Lighting - Testing & Troubleshooting
>>
Circuit Diagram
>>

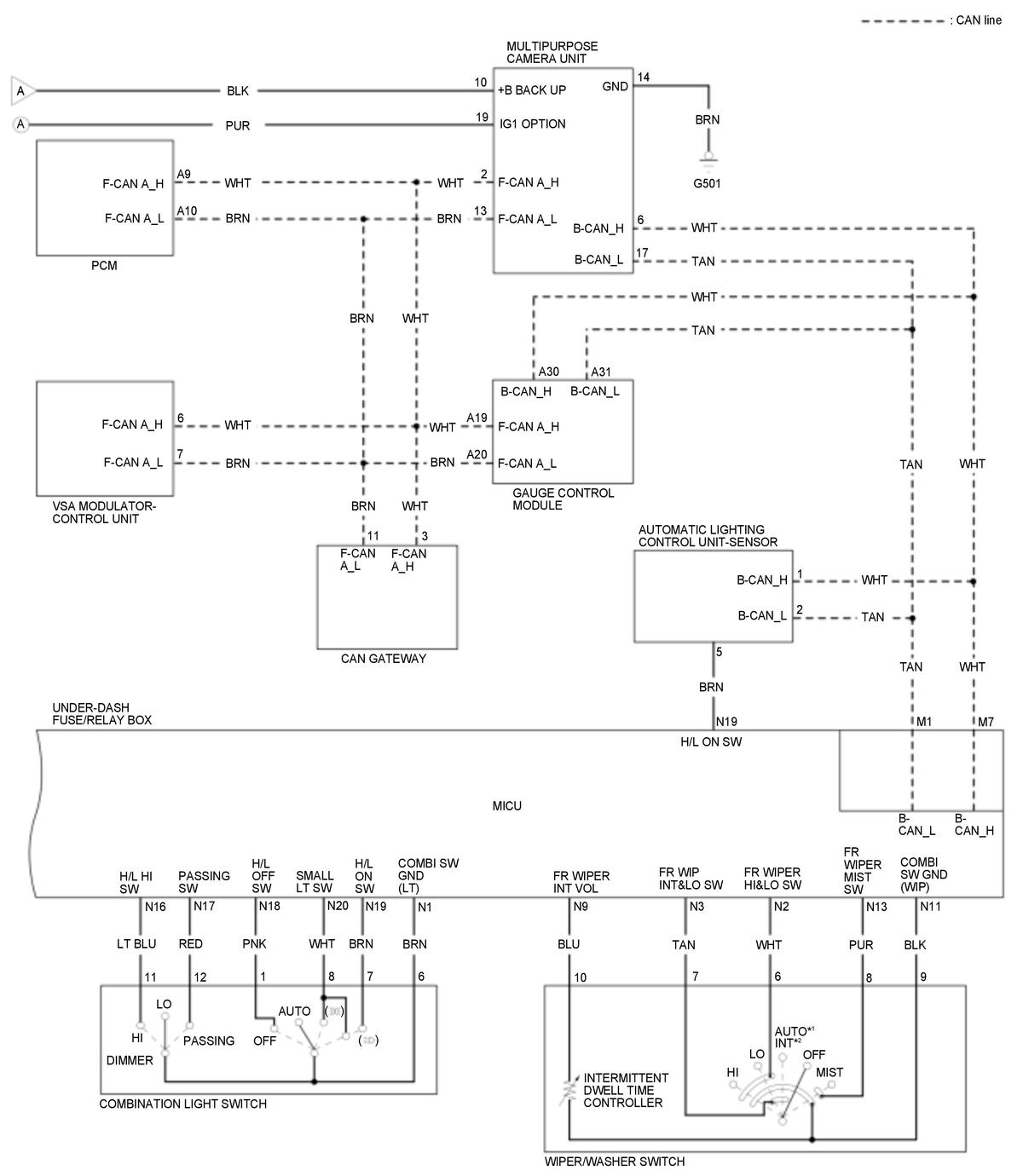

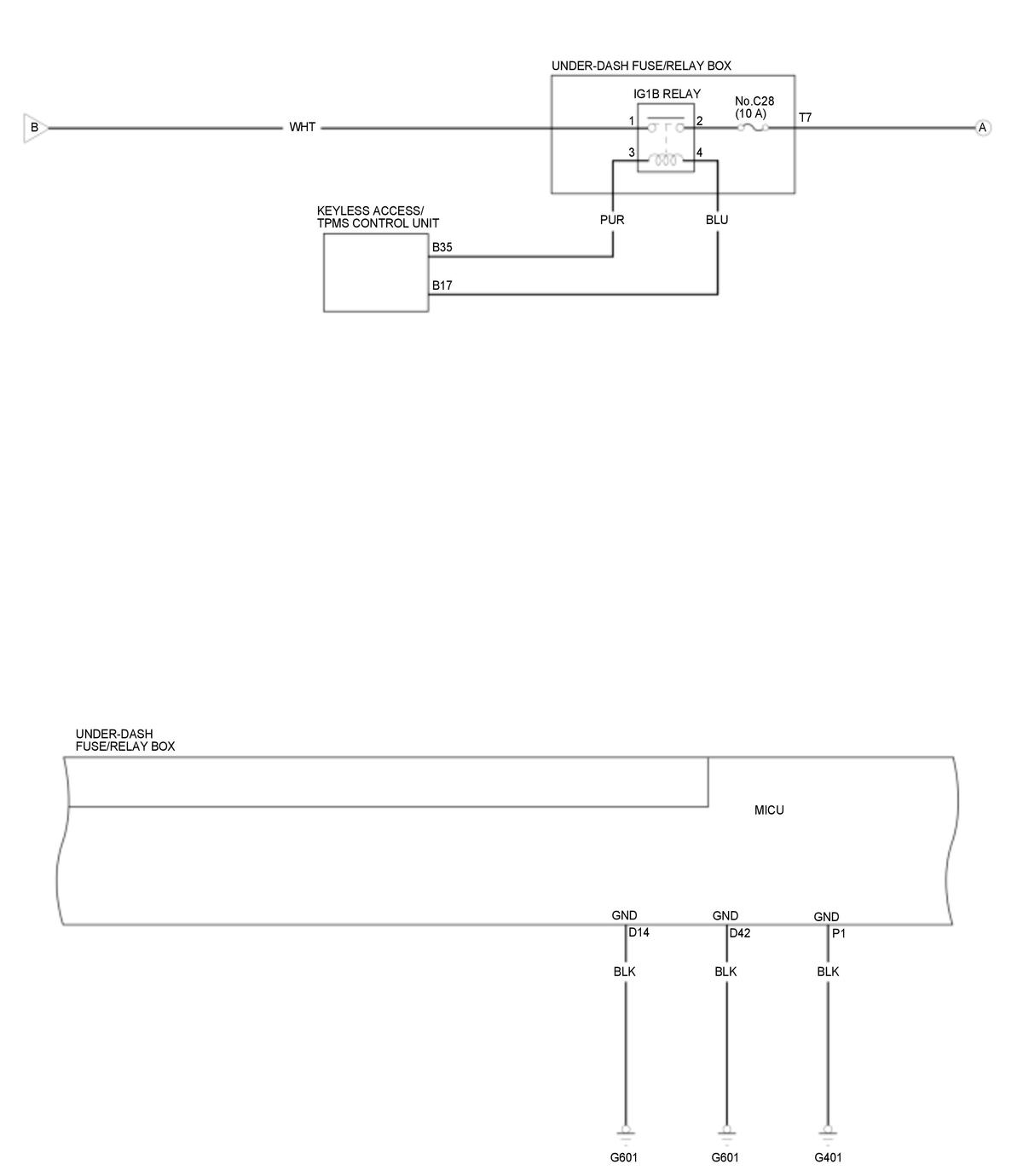

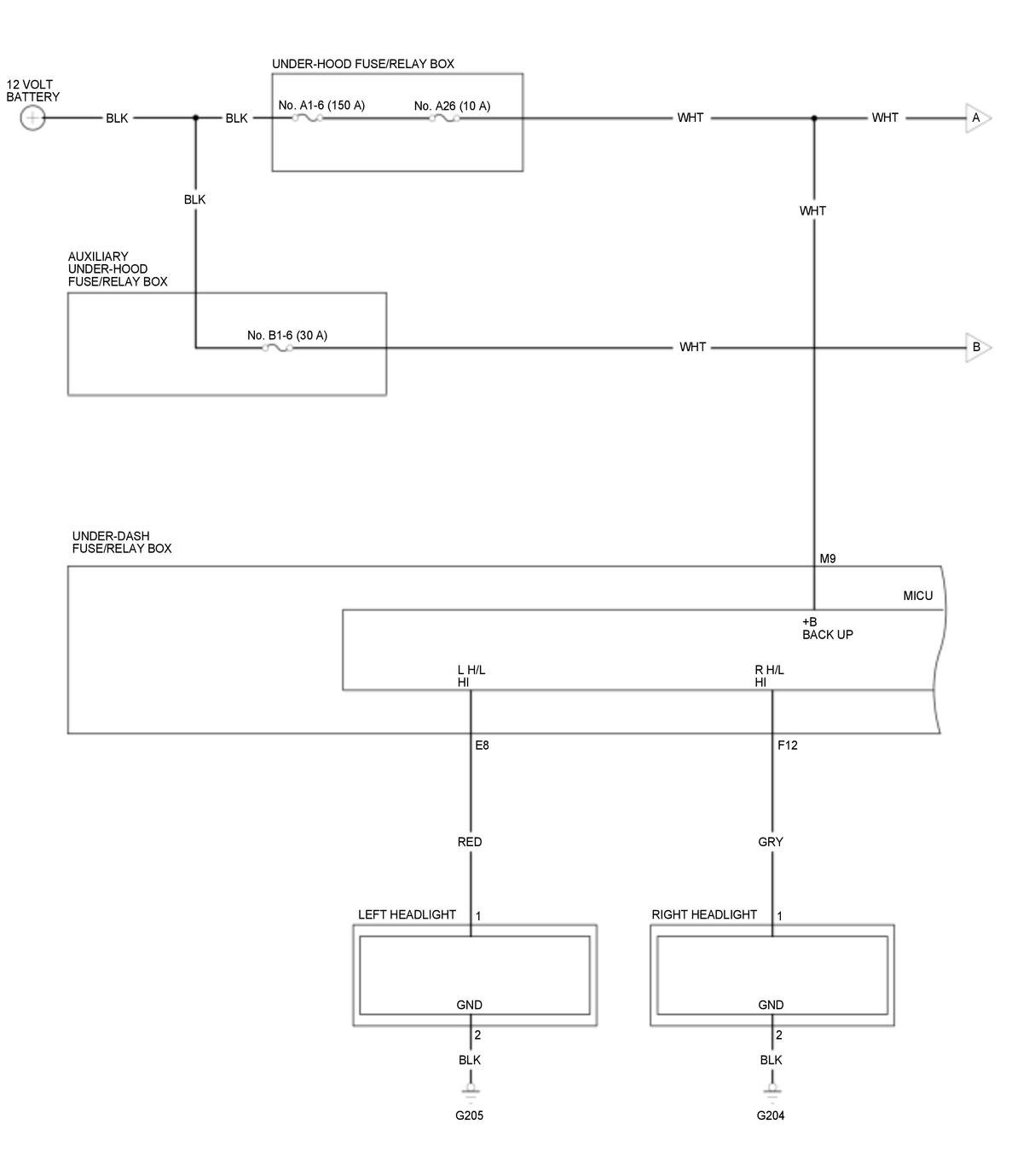

AUTO HIGH-BEAM (HIGH-BEAM SUPPORT SYSTEM) (WITHOUT Auto Idle Stop System) (2019 2020 2021)
AUTO HIGH-BEAM (HIGH-BEAM SUPPORT SYSTEM) (WITHOUT Auto Idle Stop System) (2019 2020 2021)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
