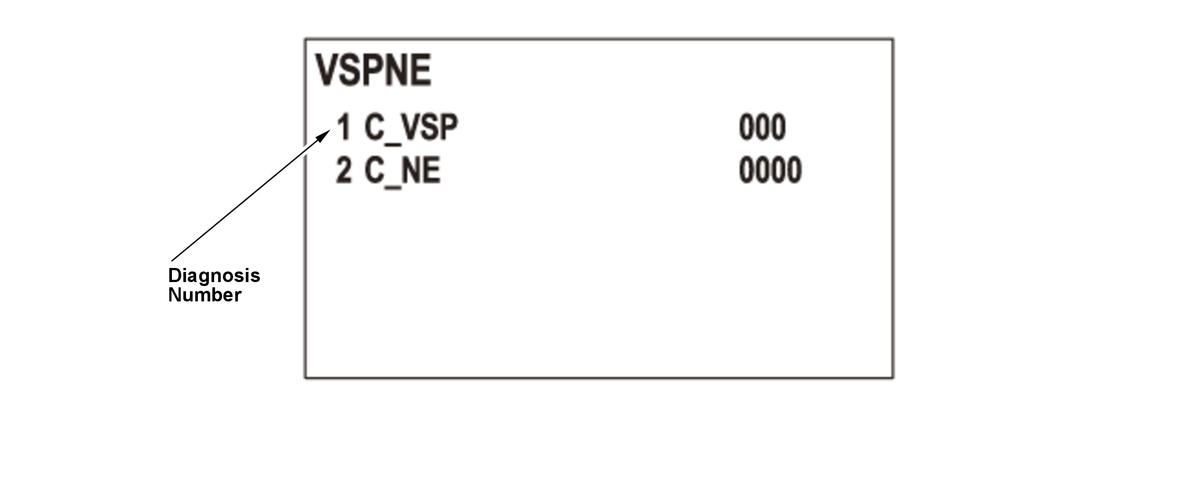

Vehicle Information: VSPNE
The VSP/NE signal comes from the gauge control module to the audio unit via the B-CAN bus.
 Courtesy of HONDA, U.S.A., INC.
|
| Diagnosis Number |
Item |
Description |
| 1 |
C_VSP |
This item indicates the vehicle speed (km/h). |
| 2 |
C_NE |
This item indicates the engine speed (RPM). |
