Vehicle Information: VINNO
The VINNO signal comes from the gauge control module to the audio unit via the B-CAN bus.

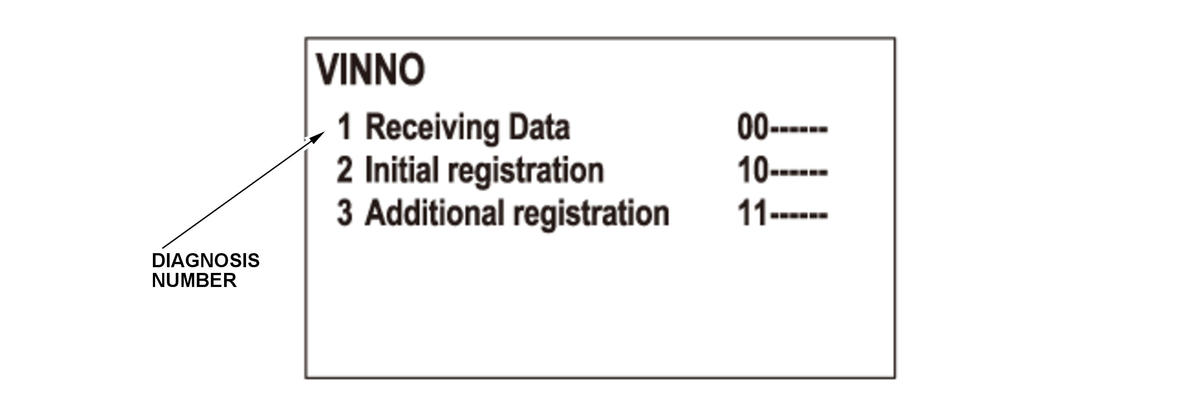

| Diagnosis Number | Item | Description |
|---|---|---|
| 1 | Receiving Data | This item indicates the VIN that received from the PCM. |
| 2 | Initial registration | This item indicates the initial registration VIN (10 is added to the beginning of indicated VIN) that is saved in the audio unit. |
| 3 | Additional registration | This item indicates the additional registration VIN (11 is added to the beginning of indicated VIN) when the audio unit is substituted into another vehicle, or when a PCM is substituted or replaced into this vehicle. |
