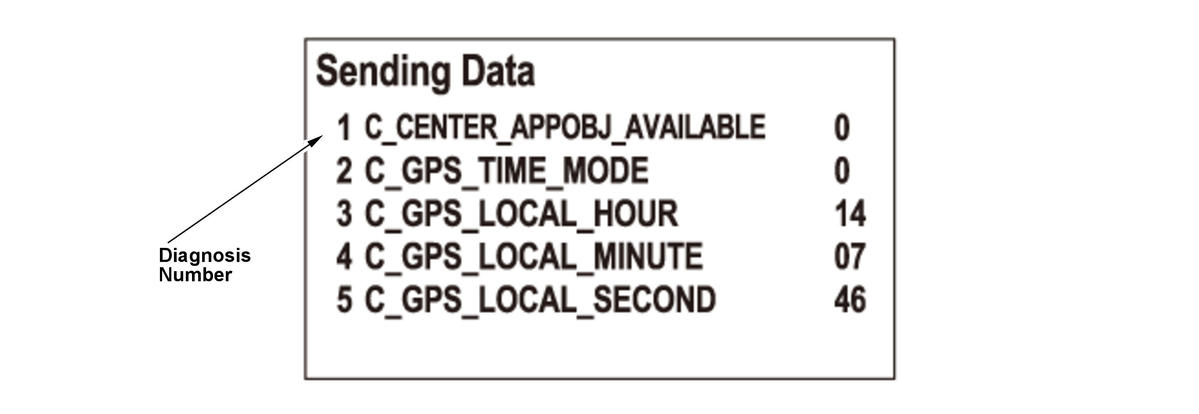

Sending Data

These items indicates status of data which is transmitted from the audio unit to each unit via the B-CAN bus.

Diagnosis Number	Item	Description
1	C_CENTER_APPOBJ_ AVAILABLE	Not available
2	C_GPS_TIME_MODE	This item indicates the status of time format setting: 1: 12 h format 0: 24 h format
3	C_GPS_LOCAL_HOUR	These items indicates setting time of the audio unit internal clock.
4	C_GPS_LOCAL_MINUTE
5	C_GPS_LOCAL_SECOND

Courtesy of HONDA, U.S.A., INC.
