Vehicle Information: Notes

Use this screen to confirm that the audio unit is properly receiving input signals. The displayed value changes each time according to the state of input signal.

To start the diagnosis, press the preset button to select the diagnosis number you want to check.

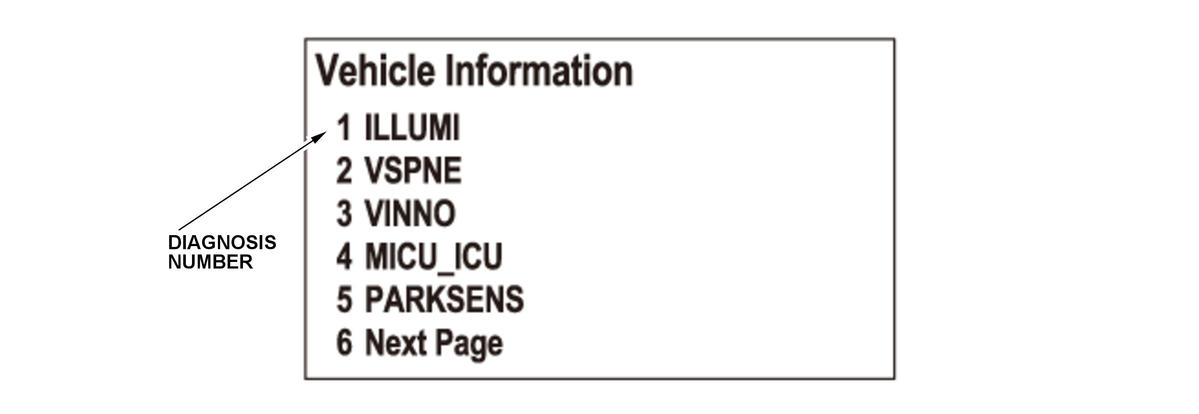

Vehicle Information

• Preset No. 1 button: ILLUMI
• Preset No. 2 button: VSPNE
• Preset No. 3 button: VINNO
• Preset No. 4 button: MICU_ICU
• Preset No. 5 button: PARKSENS (Not supported)
• Preset No. 6 button: Using to display the Vehicle Information 2 screen.

Courtesy of HONDA, U.S.A., INC.

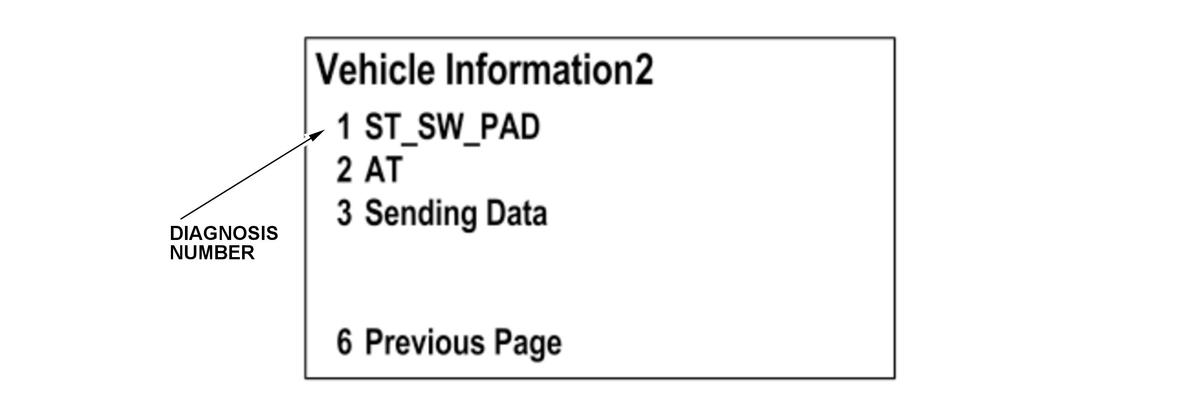

Vehicle Information 2

• Preset No. 1 button: ST_SW_PAD
• Preset No. 2 button: AT
• Preset No. 3 button: Sending Data
• Preset No. 6 button: Using to display the Vehicle Information screen.

Courtesy of HONDA, U.S.A., INC.
