DIAGNOSTIC MODE (5-inch Screen) (2019 2020 2021): Connection

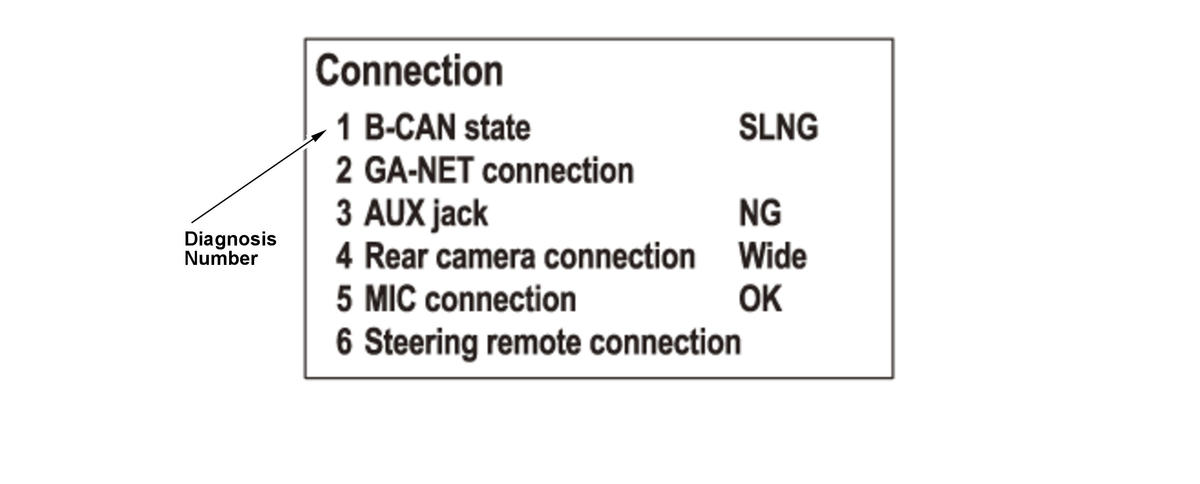

This diagnosis checks the connection between each component connected to the audio unit.

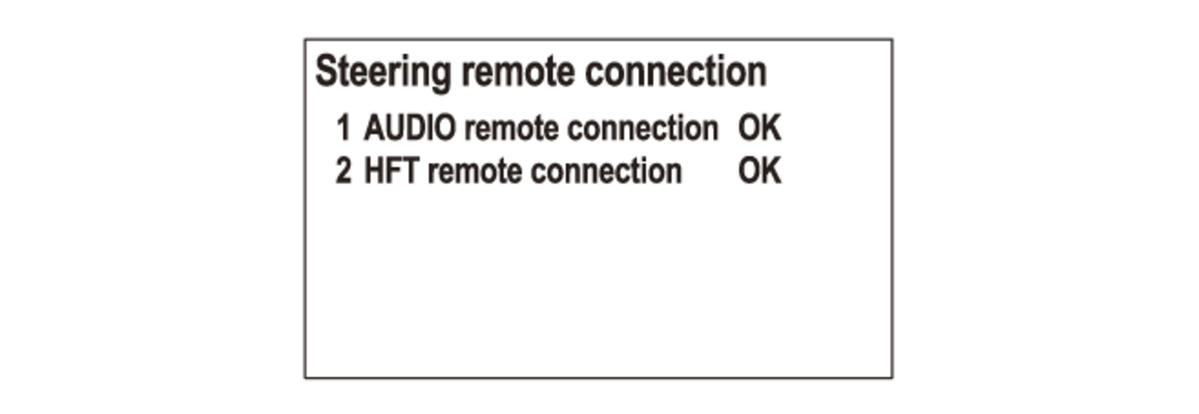

To diagnose the Steering remote connection, press the preset No. 6 button.
| Diagnosis Number | Item | Description |
|---|---|---|
| 1 | B-CAN state | This diagnosis checks whether the audio unit is receiving B-CAN data properly. If the B-CAN state shows NG, check for B-CAN DTCs with the HDS. If no DTCs are detected, check for continuity in the B-CAN lines between the audio unit, the MICU, and the gauge control module. |
| 2 | GA-NET connection | This diagnosis checks whether the audio unit is connecting the GA-NET related unit(s) properly. Since the GA-NET communication is not used in this model, it is not reflected in diagnosis. |
| 3 | AUX jack | This diagnosis checks whether the audio unit is connecting the auxiliary jack properly. When connecting the auxiliary audio unit to the auxiliary jack assembly, the AUX jack status should turn to OK. |
| 4 | Rear camera connection | This diagnosis indicates the last view mode (Wide, Normal, or Top Down) of the rearview camera in the normal operation. |
| 5 | MIC connection | This diagnosis checks whether the audio unit is connecting the HFL microphone properly. |
| 6 | Steering remote connection | This diagnosis checks whether the audio unit is connecting the audio remote switch and the HFL switch properly. Press any audio remote switch button and HFL switch button to check the connection. |
