F-CAN (High-speed CAN) (with CAN gateway)

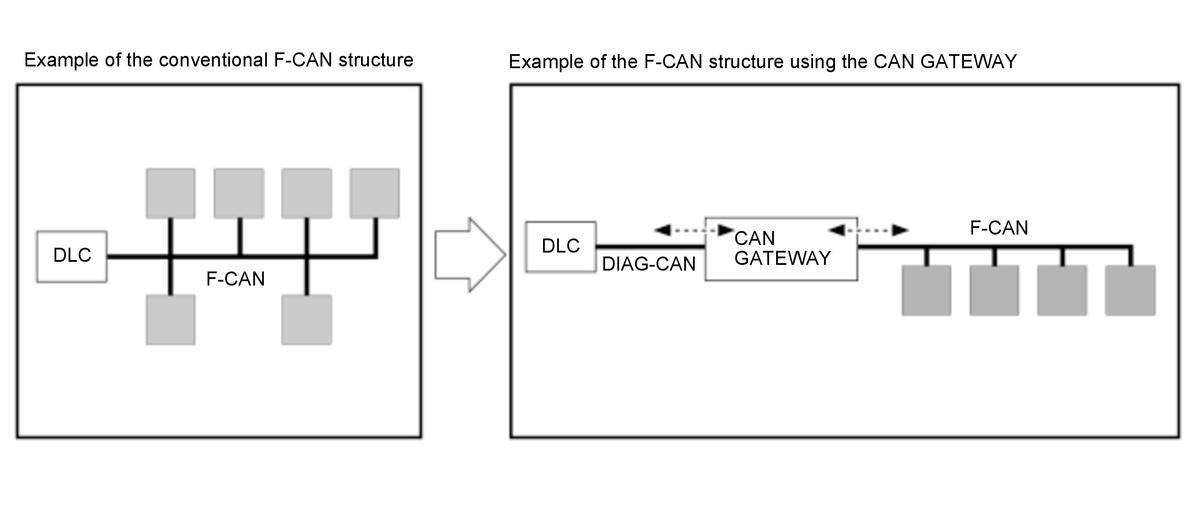

The network between a powertrain and control units for chassis system is called F-CAN and it employs high speed CAN with communication rate at 500 kbps. The data link connector (DLC) is separated from F-CAN bus and connected to the CAN gateway as DIAG-CAN.

Courtesy of HONDA, U.S.A., INC.
