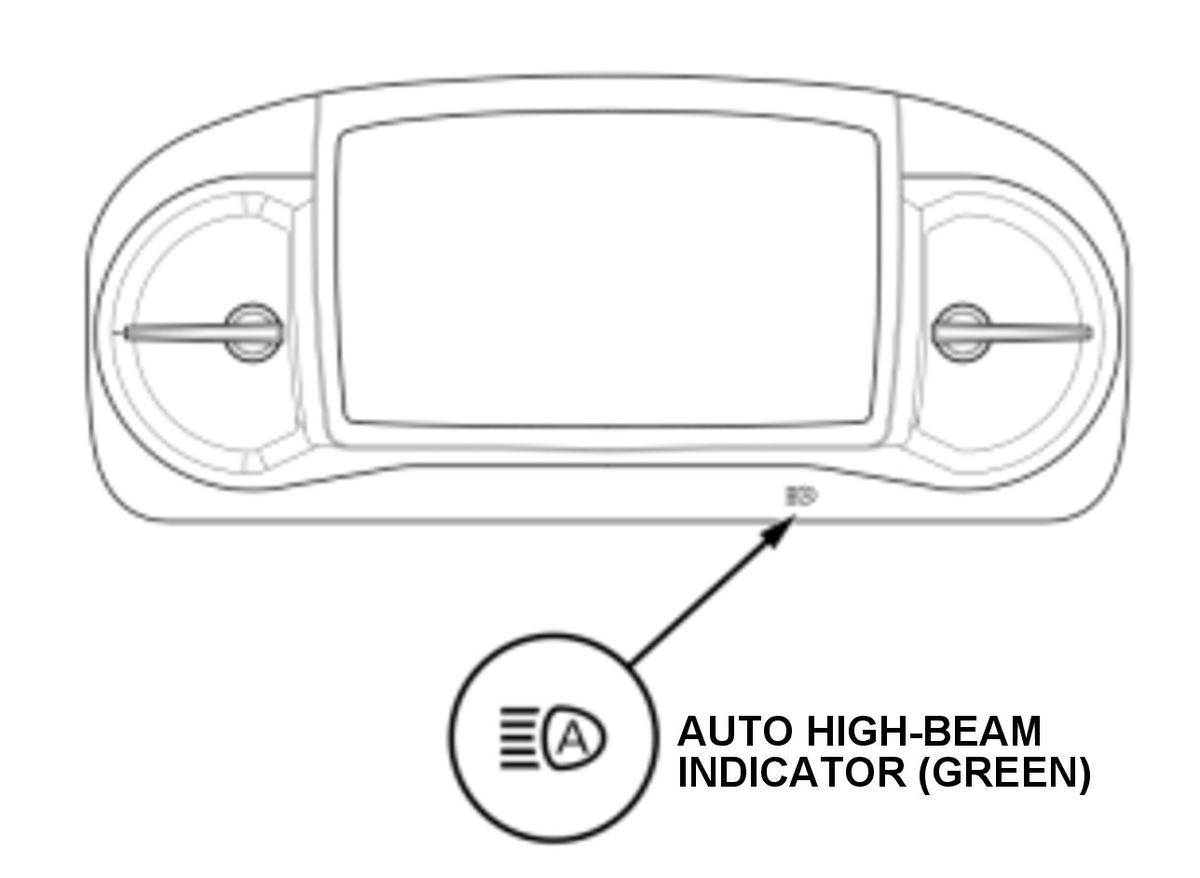

Auto High-Beam Indicator (Green)

When the Auto High-Beam is OK, the Auto High-Beam indicates its operation on the gauge control module as below.

NOTE:

• For Auto High-Beam function, review the Auto High-Beam (High-Beam Support System) Description (2019 2020 2021) .
• The Auto High-Beam communication with other control units via the F-CAN and B-CAN. For Auto High-Beam diagram, review the Auto High-Beam Diagram. Refer to:

  Auto High-Beam (High-Beam Support System) Circuit Diagram (With Auto Idle Stop System) (2019 2020 2021) .

  If a connected unit malfunctions, the Auto High-Beam will not operate. In this case, both Auto High-Beam indicator and connected unit indicator come on and stay on (except for the gauge control module).
