Select / Reset / Information Switch (2016 2017 2018): Test
NOTE: SRS components are located in this area. Review the SRS component locations - Refer to:
SRS Component Location Index (2016) or
Component Location Index (2017 2018 2019 2020 2021) and the
Precautions and Procedures before doing repairs or service.
- Steering Wheel Trim - Remove
- Select/Reset/Information Switch - Test

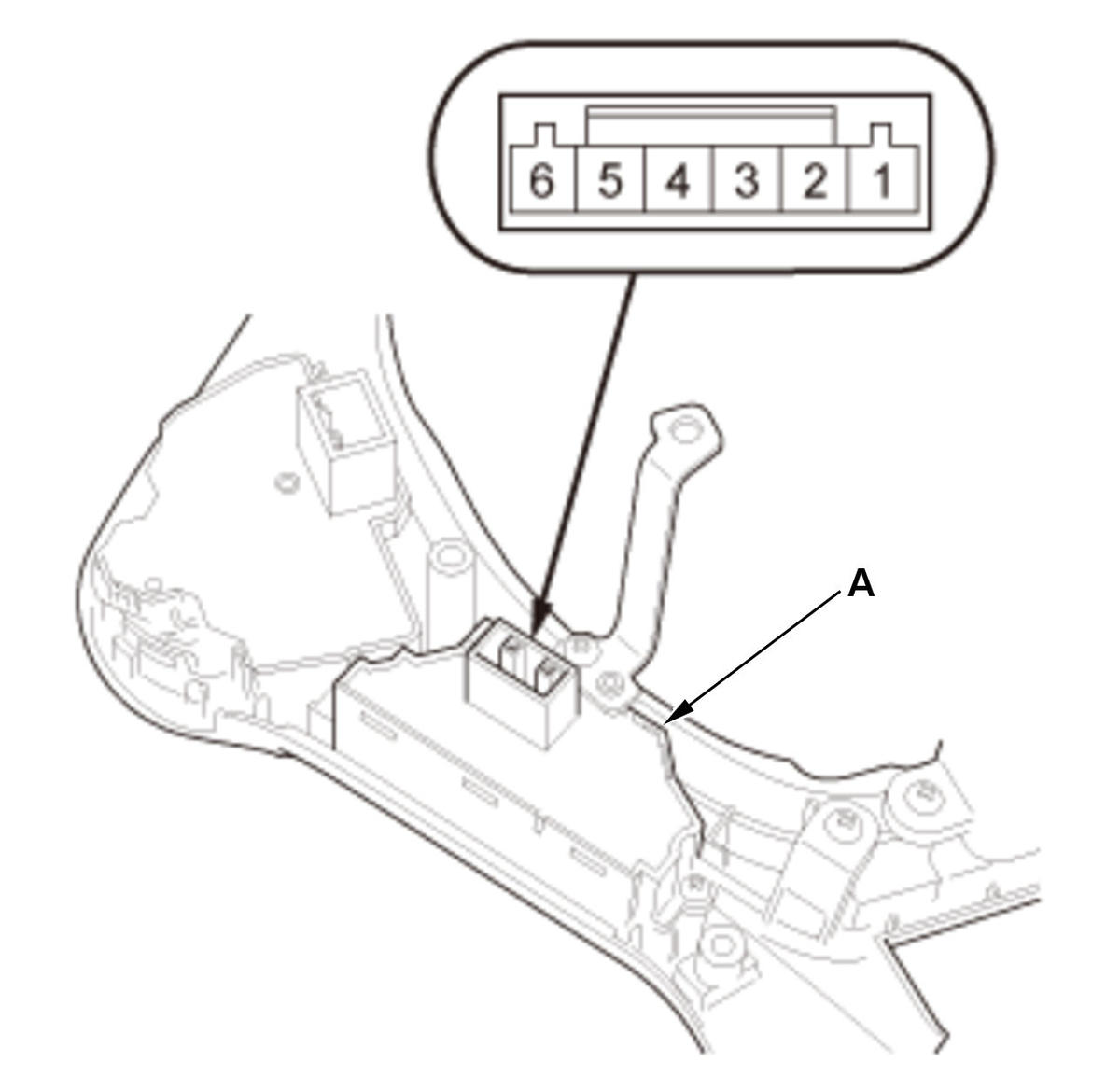

1. Measure the resistance between terminals No. 3 and No. 4 in each switch position according to the table. - When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
- Remember this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
2. If the resistance is not as specified, replace the Select / Reset / Information Switch - Removal and Installation (A).
3. Check the select/reset/information switch light by connecting battery power to terminal No. 2 and ground to terminal No. 5. The select/reset/information switch light should come on.
4. If the select/reset/information switch light does not come on, the LED is faulty; replace the Select / Reset / Information Switch - Removal and Installation .
Position Resistance NEXT ( )
About 33 Ω SEL/RESET About 1, 043 Ω PREVIOUS ( )
About 363 Ω - All Removed Parts - Install
1. Install the parts in the reverse order of removal.
