Parking And Back-Up Sensor Switch: Test

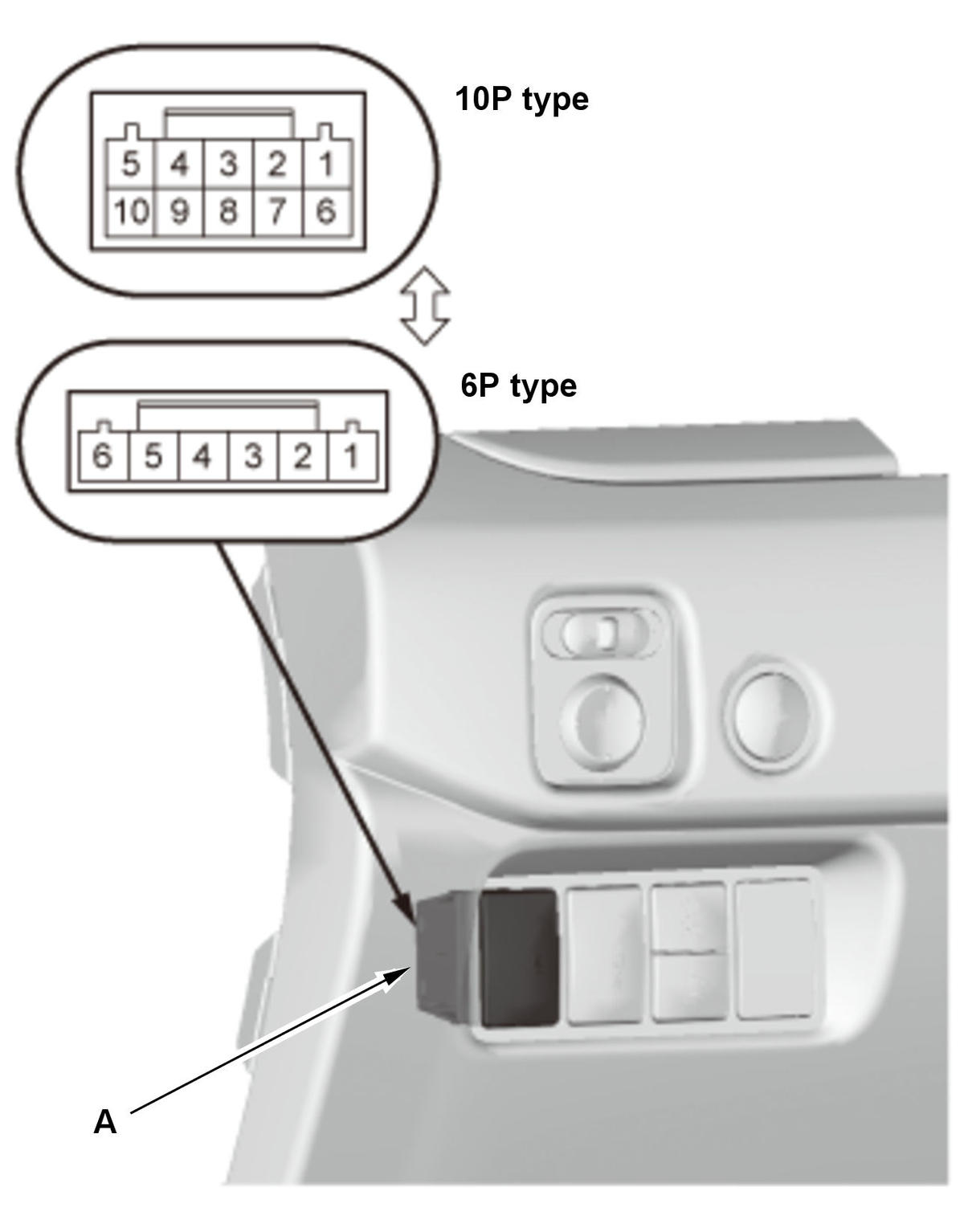

NOTE:  The mounting position of the parking and back-up sensor switch (A) is different depending on the model.

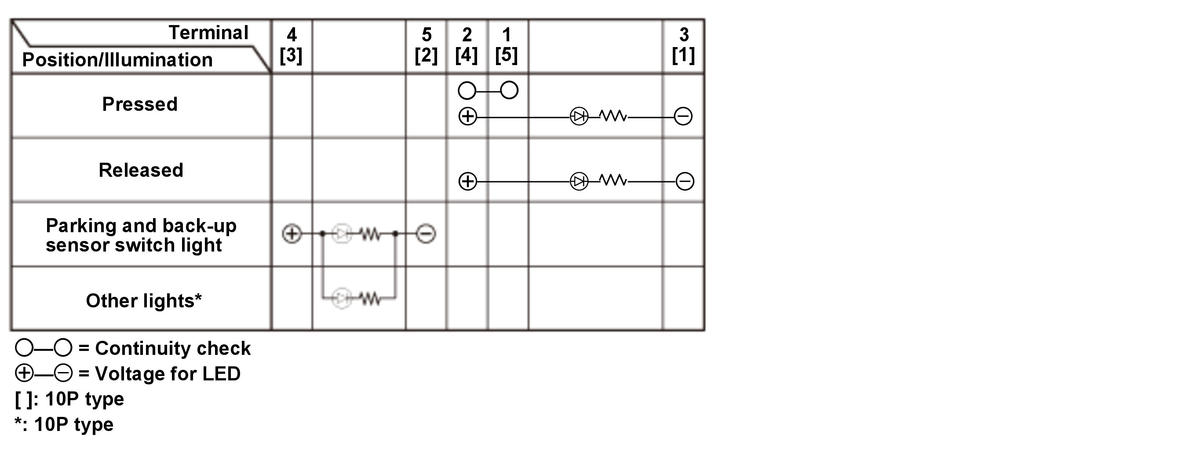

1. Check the parking and back-up sensor switch according to the table.

NOTE:

• When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
• Remember this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

2. If the result is not as specified, replace the Parking and Back-Up Sensor Switch - Removal and Installation .
