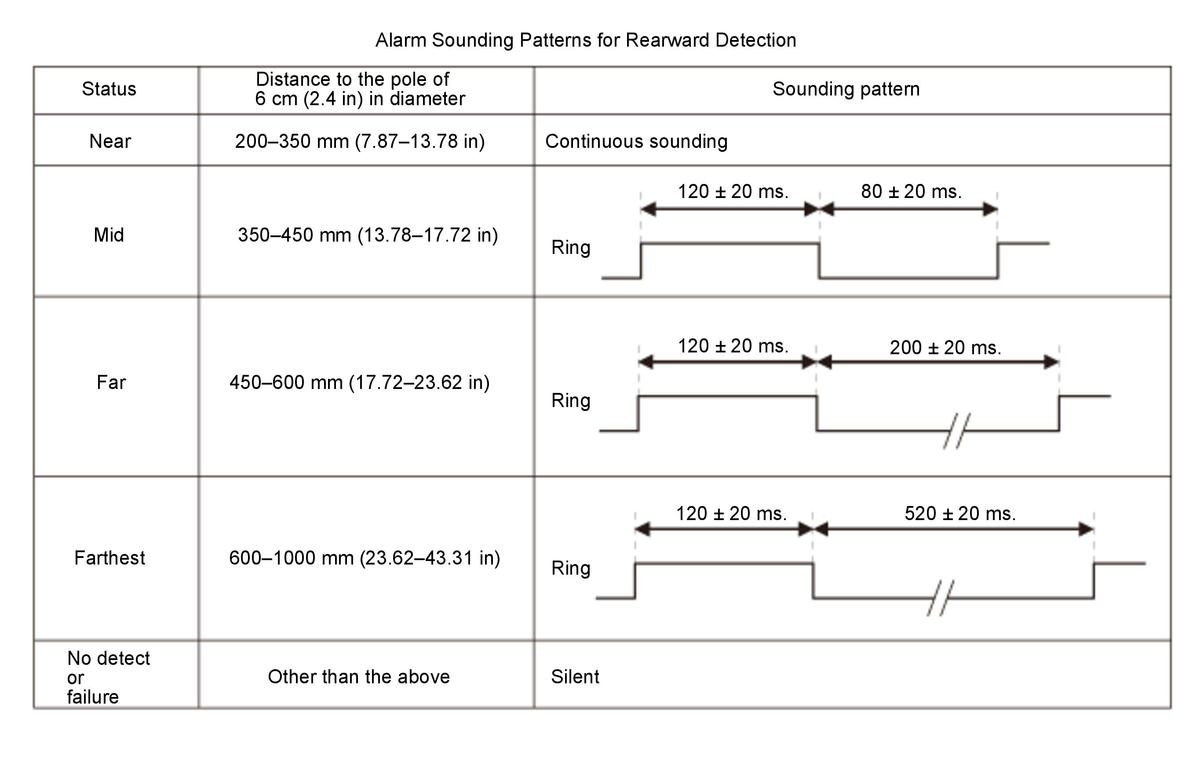

Sound Pattern of the Parking and Back-Up Sensor Beeper: Rear

GHH309622

Courtesy of HONDA, U.S.A., INC.
