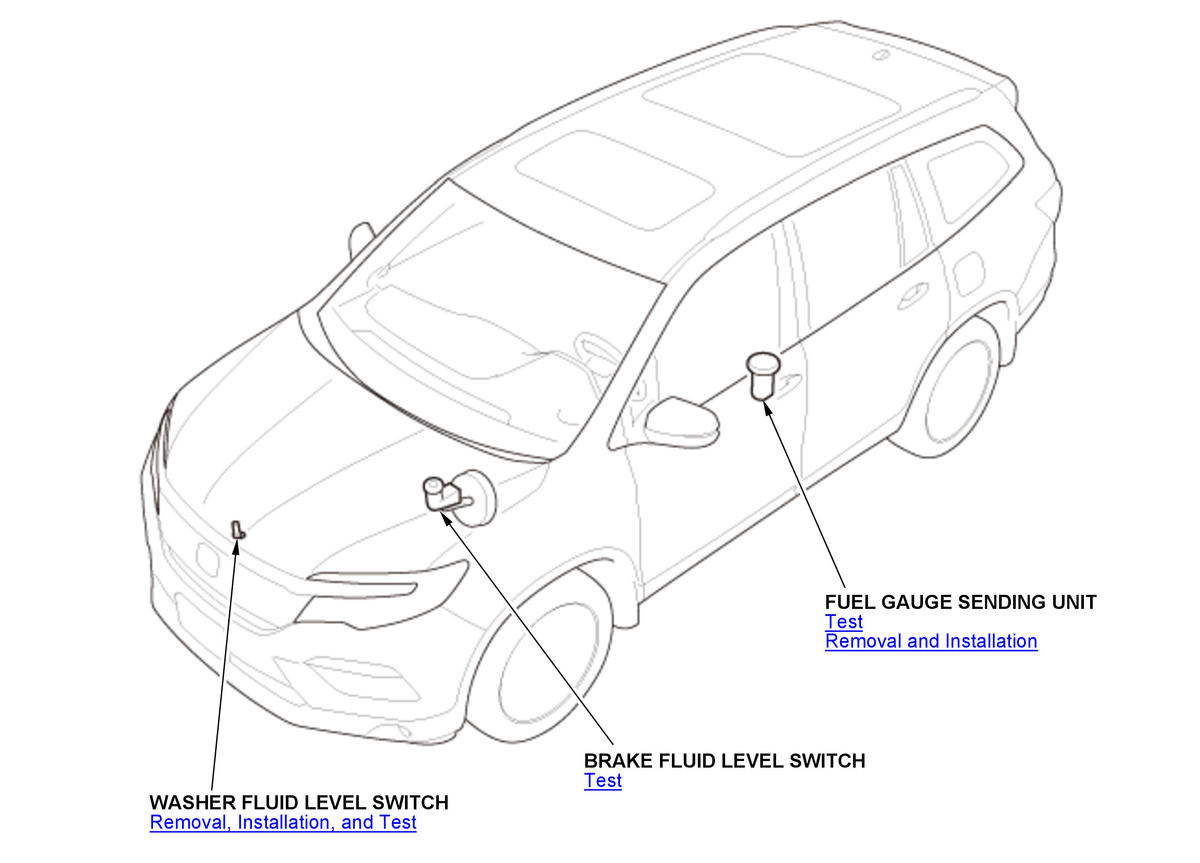

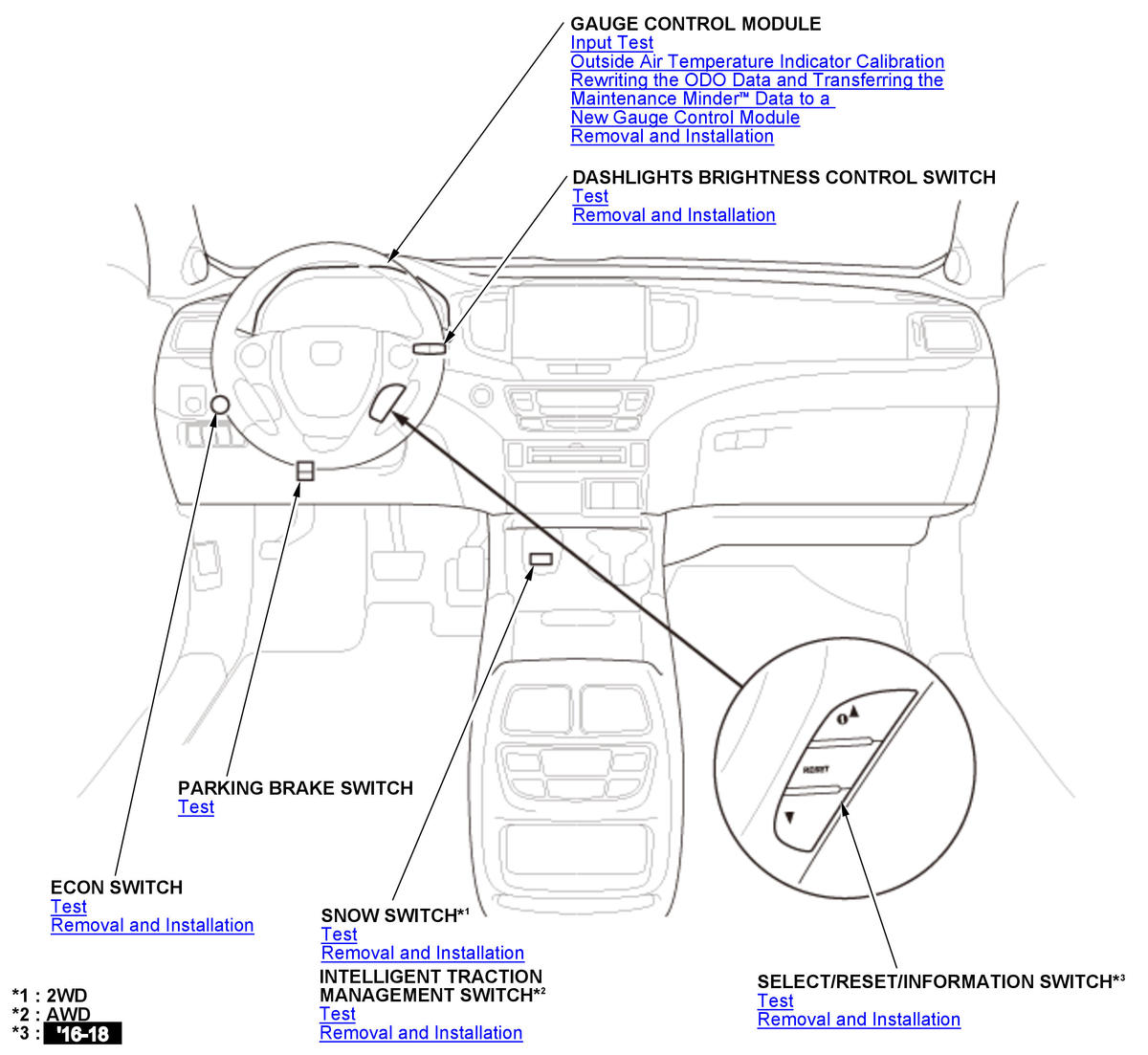

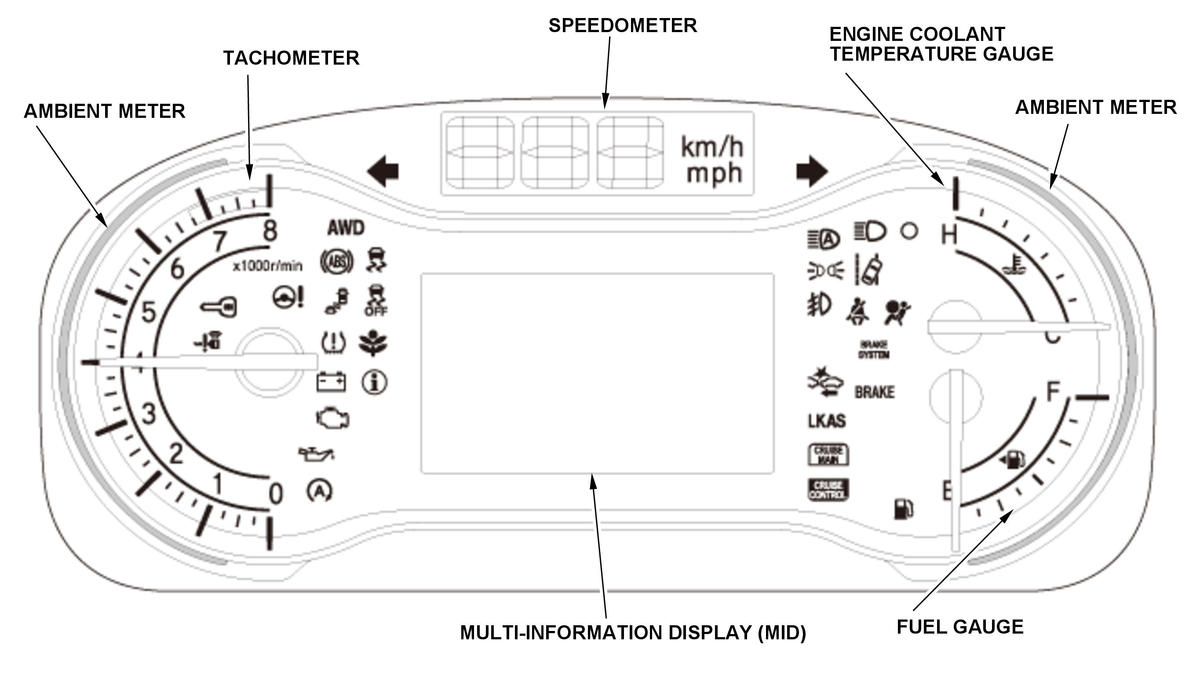

Component Location Index: Gauges
For relationships between signals in a system, refer to System Diagram - Go to:
Gauges System Description - System Diagram (2016 2017 2018) or
Gauges System Description - System Diagram (2019 2020 2021) .
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|

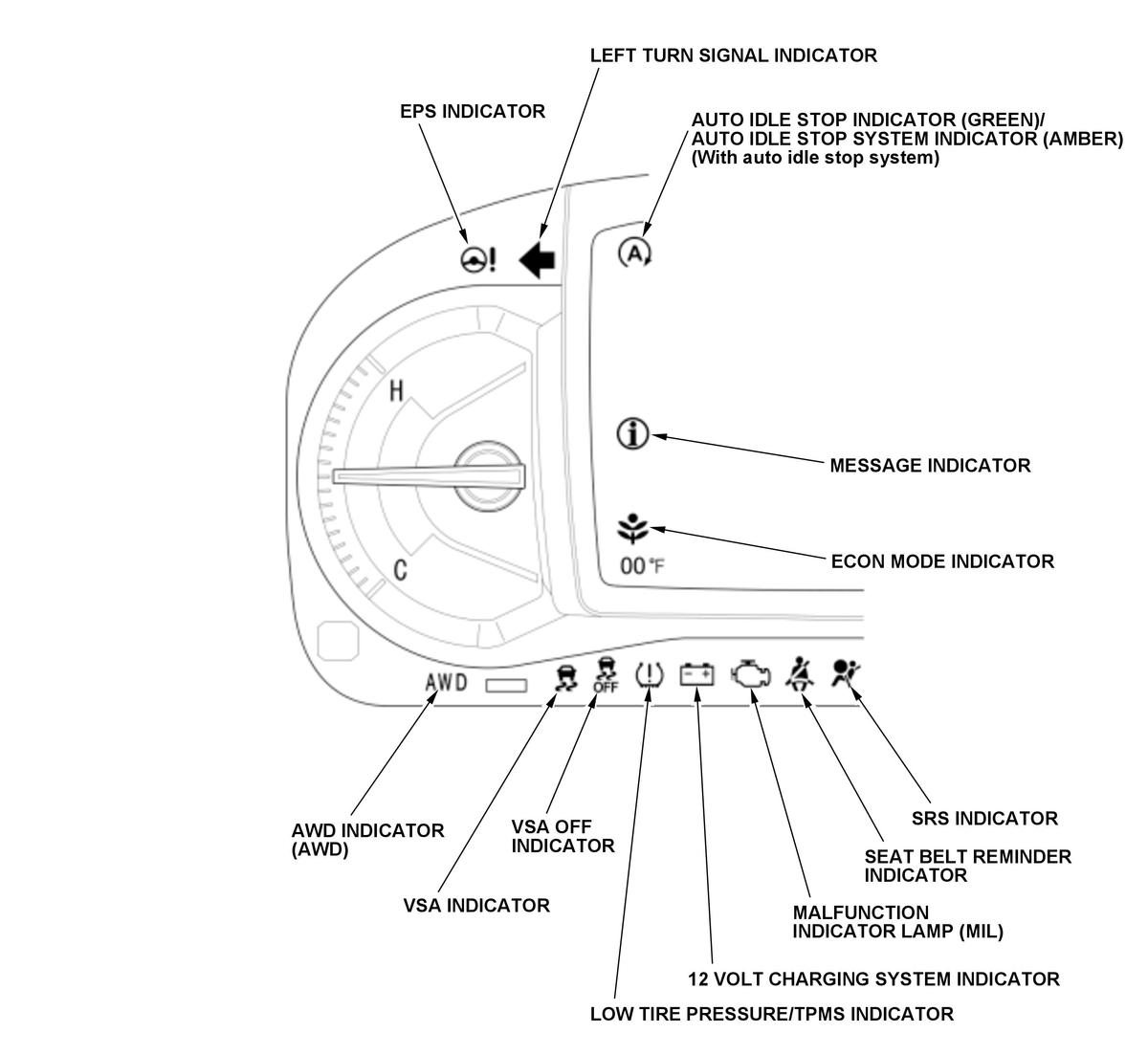

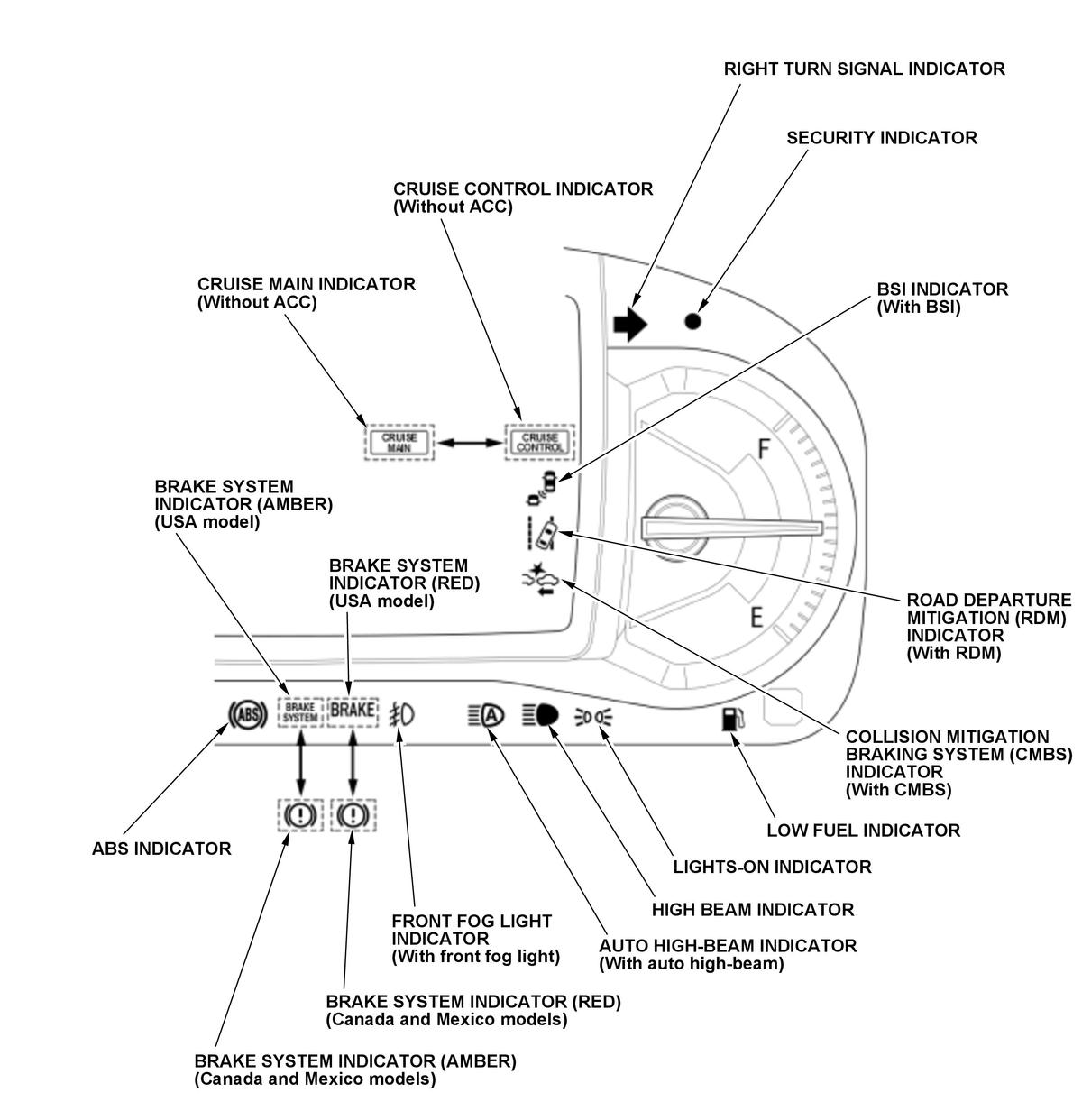

'16-18
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|

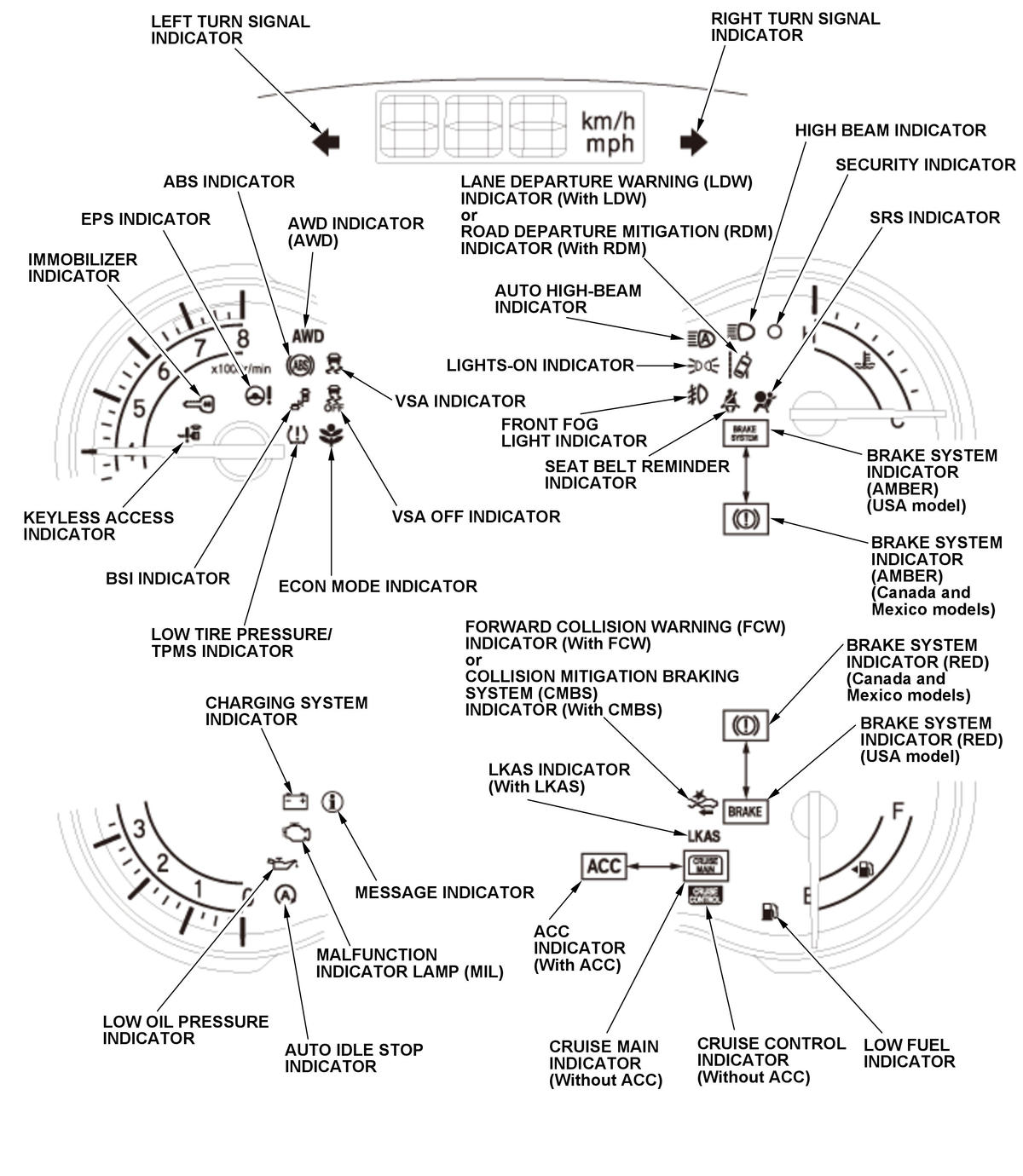

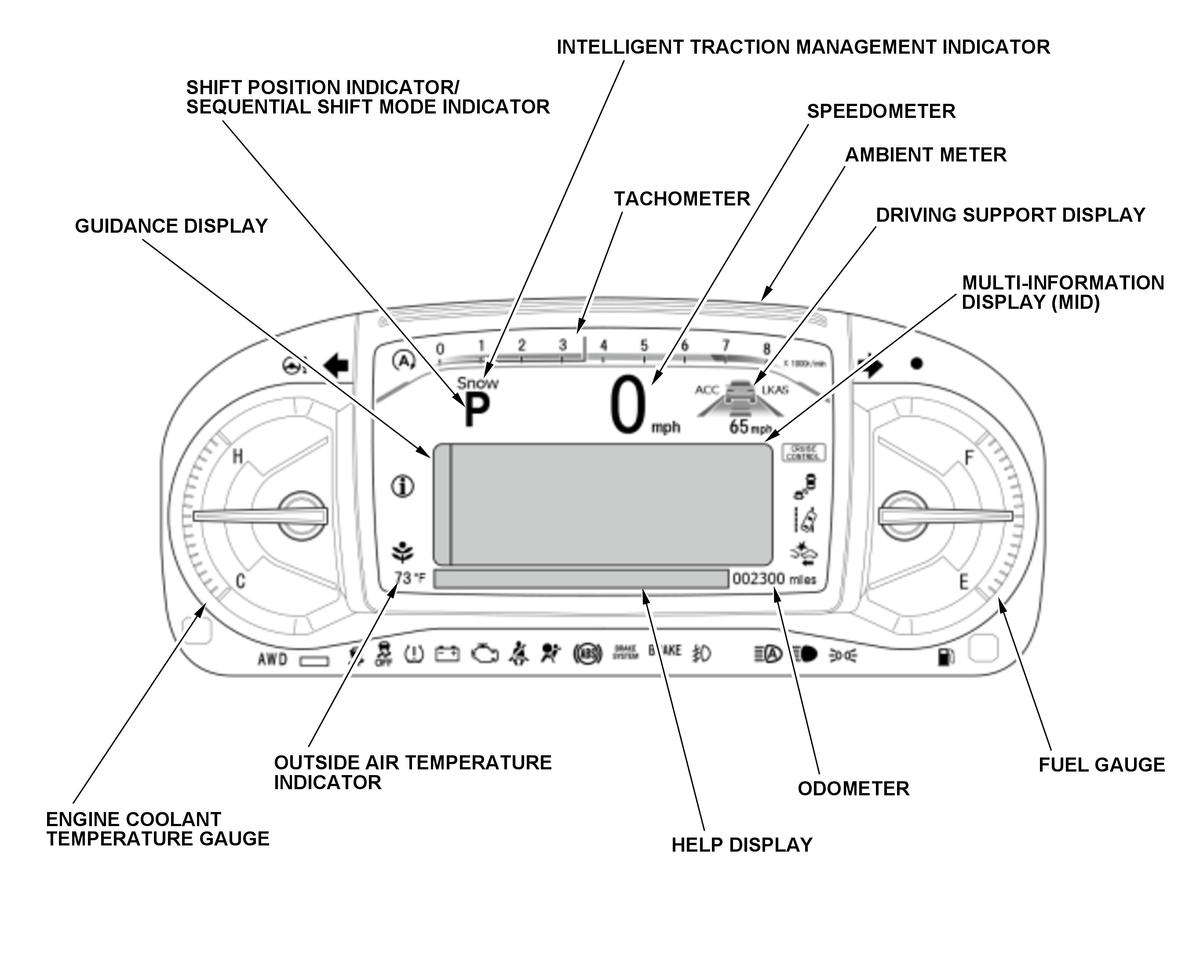

'19-21
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
