DTC U0101, U0103, U0104, U0114, U0122, U0126, U0131, U0151, U0155, U1101, U129E

DTC U0101 : F-CAN Malfunction (Powertrain Control Module (PCM)-Transmission Control Module (TCM))
DTC U0103 : F-CAN Malfunction (Powertrain Control Module (PCM)-SBW Shifter)
DTC U0104 : F-CAN Malfunction (Powertrain Control Module (PCM)-ACC Unit/Multipurpose Camera Unit)
DTC U0114 : F-CAN Malfunction (Powertrain Control Module (PCM)-i-VTM Control Unit)
DTC U0122 : F-CAN Malfunction (Powertrain Control Module (PCM)-VSA Modulator-Control Unit)
DTC U0126 : F-CAN Malfunction (Powertrain Control Module (PCM) -Steering Angle Sensor)
DTC U0131 : F-CAN Malfunction (Powertrain Control Module (PCM)-EPS Control Unit)
DTC U0151 : F-CAN Malfunction (Powertrain Control Module (PCM)-SRS Unit)
DTC U0155 : F-CAN Malfunction (Powertrain Control Module (PCM)-Gauge Control Module)
DTC U1101 : F-CAN Malfunction (Powertrain Control Module (PCM)-Active Control Engine Mount (ACM))
DTC U129E : F-CAN Malfunction (Powertrain Control Module (PCM)-Power Control Unit (PCU))

NOTE:

Before you troubleshoot, review the general troubleshooting information - Refer to: How to Troubleshoot the Fuel and Emissions Systems .
According to the detected DTC (s), check for the power circuit and the ground circuit of the control unit which cannot communicate with the PCM.
Before disconnecting the SRS unit connector, do the 12 volt battery terminal disconnection procedure , and wait for at least 3 minutes.

DTC Description	Confirmed DTC	Pending DTC
U0101 F-CAN Malfunction (Powertrain Control Module (PCM)-Transmission Control Module (TCM))
U0103 F-CAN Malfunction (Powertrain Control Module (PCM)-SBW Shifter)
U0104 F-CAN Malfunction (Powertrain Control Module (PCM)-ACC Unit/Multipurpose Camera Unit)
U0114 F-CAN Malfunction (Powertrain Control Module (PCM)-i-VTM Control Unit)
U0122 F-CAN Malfunction (Powertrain Control Module (PCM)-VSA Modulator-Control Unit)
U0126 F-CAN Malfunction (Powertrain Control Module (PCM) -Steering Angle Sensor)
U0131 F-CAN Malfunction (Powertrain Control Module (PCM)-EPS Control Unit)
U0151 F-CAN Malfunction (Powertrain Control Module (PCM)-SRS Unit)
U0155 F-CAN Malfunction (Powertrain Control Module (PCM)-Gauge Control Module)
U1101 F-CAN Malfunction (Powertrain Control Module (PCM)-Active Control Engine Mount (ACM))
U129E F-CAN Malfunction (Powertrain Control Module (PCM)-Power Control Unit (PCU))

DTC (PGM-FI)

CAN gateway system DTC check

- 1. Turn the vehicle to the ON mode.

- 2. Check for CAN gateway system DTCs with the HDS.

DTC Description	DTC

DTC (CAN Gateway)

Are any DTCs indicated?

YES

Go to the troubleshooting for CAN gateway system DTC (s) .

Go to step 2.

F-CAN circuit communication check (Receiving control unit)
- 1. Select the FUNCTION TEST in the CAN gateway with the HDS, then select the F-CAN Bus Connected Unit Check.

F-CAN Bus Connected Unit Check

Which result is indicated?

Bus A is Not Available

Go to step 3.

Bus B is Not Available

Go to step 4.

Bus A and B are Available

Go to step 5.

Open wire check (F-CAN A_H line, F-CAN A_L line)

- 1. Turn the vehicle to the OFF (LOCK) mode.

- 2. Jump the SCS line with the HDS, and wait more than 1 minute.

- 3. Disconnect the following connectors.

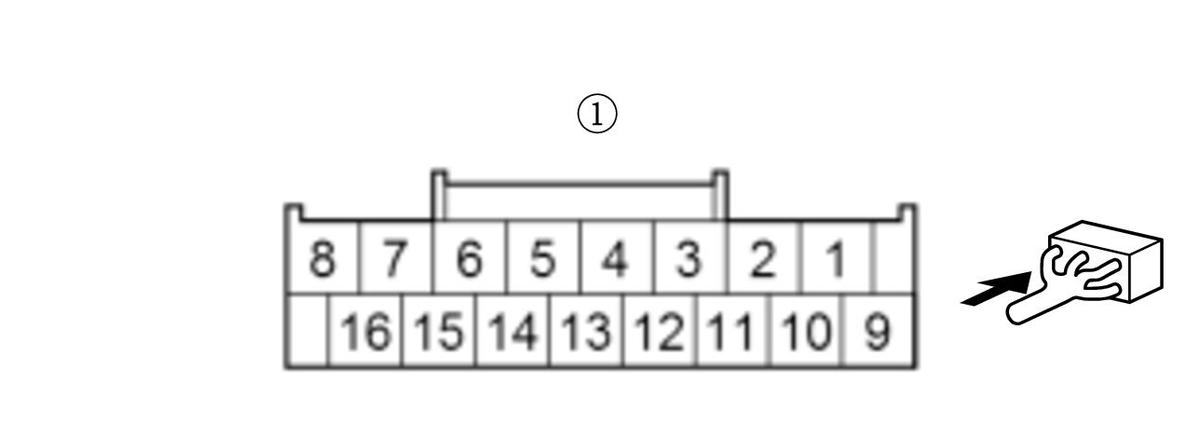

CAN gateway 16P connector

PCM connector A (50P)

- 4. Check for continuity between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode
	CAN gateway 16P connector: disconnected
	PCM connector A (50P): disconnected
Test point 1	CAN gateway 16P connector (female terminals) No. 3:
Test point 2	PCM connector A (50P) No. 11 - Refer to: PCM Connector for Inputs and Outputs (9-Speed A/T) (2016 2017 2018), or PCM Connector for Inputs and Outputs (9-Speed A/T) (2019 2020 2021), or PCM Connector for Inputs and Outputs (6-Speed A/T)

Test point 1	CAN gateway 16P connector (female terminals) No. 11:
Test point 2	PCM connector A (50P) No. 10 - Refer to: PCM Connector for Inputs and Outputs (9-Speed A/T) (2019 2020 2021), or PCM Connector for Inputs and Outputs (6-Speed A/T), or PCM Connector for Inputs and Outputs (9-Speed A/T) (2016 2017 2018)

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

The F-CAN A_H wire and the F-CAN A_L wire are OK.

Check for poor connections or loose terminals at the CAN gateway and the PCM.

Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM, then recheck. - Refer to: PCM Removal and Installation (6-Speed A/T), ('16-'18 9-Speed A/T), or PCM Removal and Installation (9-Speed A/T) (2019 2020 2021)

If the indicated DTC goes away and the PCM was substituted, replace the original PCM - Refer to: PCM Removal and Installation (9-Speed A/T) (2019 2020 2021), or PCM Removal and Installation (6-Speed A/T), ('16-'18 9-Speed A/T) .

Repair an open in the F-CAN A_H wire or the F-CAN A_L wire between the PCM (A10, A11) and the CAN gateway.

Open wire check (F-CAN B_H line, F-CAN B_L line)

- 1. Turn the vehicle to the OFF (LOCK) mode.

- 2. Jump the SCS line with the HDS, and wait more than 1 minute.

- 3. Disconnect the following connectors.

CAN gateway 16P connector

PCM connector A (50P)

- 4. Check for continuity between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode
	CAN gateway 16P connector: disconnected
	PCM connector A (50P): disconnected
Test point 1	CAN gateway 16P connector (female terminals) No. 6:
Test point 2	PCM connector A (50P) No. 13 - Refer to: PCM Connector for Inputs and Outputs (9-Speed A/T) (2016 2017 2018), or PCM Connector for Inputs and Outputs (9-Speed A/T) (2019 2020 2021), or PCM Connector for Inputs and Outputs (6-Speed A/T)

Test point 1	CAN gateway 12P connector (female terminals) No. 14:
Test point 2	PCM connector A (50P) No. 12 - Refer to: PCM Connector for Inputs and Outputs (9-Speed A/T) (2019 2020 2021), or PCM Connector for Inputs and Outputs (6-Speed A/T), or PCM Connector for Inputs and Outputs (9-Speed A/T) (2016 2017 2018)

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

The F-CAN B_H wire and the F-CAN B_L wire are OK.

Check for poor connections or loose terminals at the CAN gateway and the PCM.

If indicated DTC goes away and the PCM was substituted, replace the original PCM - Refer to:

PCM Removal and Installation (9-Speed A/T) (2019 2020 2021), or PCM Removal and Installation (6-Speed A/T), ('16-'18 9-Speed A/T) .

Repair an open in the F-CAN B_H wire or the F-CAN B_L wire between the PCM (A12, A13) and the CAN gateway.

F-CAN circuit communication check (Transmitting control unit)

- 1. Select the FUNCTION TEST in the CAN gateway with the HDS, then select the F-CAN Bus Connected Unit Check.

F-CAN Bus Connected Unit Check

According to the detected DTC on the following table, make sure that the transmitting control unit detects the CAN gateway Bus channel (s) normally.

DTC	Transmitting control unit	Detected CAN gateway Bus channel (s) at normal
U0101	TCM	A, B
U0103	SBW shifter control module	A, B
U0104	Multipurpose camera unit	A
U0114	i-VTM control unit	B
U0122	VSA modulator-control unit	A
U0126	Steering Angle Sensor	A
U0131	EPS control unit	A
U0151	SRS unit	A
U0155	Gauge control module	A
U1101	Engine mount control unit	B
U129E	Keyless access/TPMS control unit	B

Is it detected normally?

Detected normal

Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the transmitting control unit and the CAN gateway.

U0101: TCM is Not Available for Bus A

Go to step 6.

U0101: TCM is Not Available for Bus B

Go to step 7.

U0103: SBW shifter control module is Not Available for Bus A

Go to step 6.

U0103: SBW shifter control module is Not Available for Bus B

Go to step 7.

U0104: Multipurpose camera unit is Not Available for Bus A

Go to step 6.

U0114: i-VTM control unit is Not Available for Bus A

Go to step 7.

U0122: VSA modulator-control unit is Not Available for Bus A

Go to step 6.

U0126: Stering angle sensor is Not Available for Bus A

Go to step 6.

U0131: EPS control unit is Not Available for Bus A

Go to step 6.

U0151: SRS unit is Not Available for Bus A

Go to step 6.

U0155: Gauge control module is Not Available for Bus A

Go to step 6.

U1101: Engine mount control unit is Not Available for Bus B

Go to step 7.

U129E: Body control module is Not Available for Bus B

Go to step 7.

Open wire check (F-CAN A_H line, F-CAN A_L line)

- 1. Turn the vehicle to the OFF (LOCK) mode.

- 2. According to the detected DTC on the following table, disconnect the transmitting control unit connector (s).

NOTE: Before disconnecting the SRS unit connector, do the 12 volt battery terminal disconnection procedure , and wait for at least 3 minutes.

DTC	Connector
-	CAN gateway 16P connector
U0101	TCM 58P connector
U0103	SBW shifter control module 20P connector
U0104	Multipurpose camera unit 20P connector
U0122	VSA modulator-control unit 38P connector

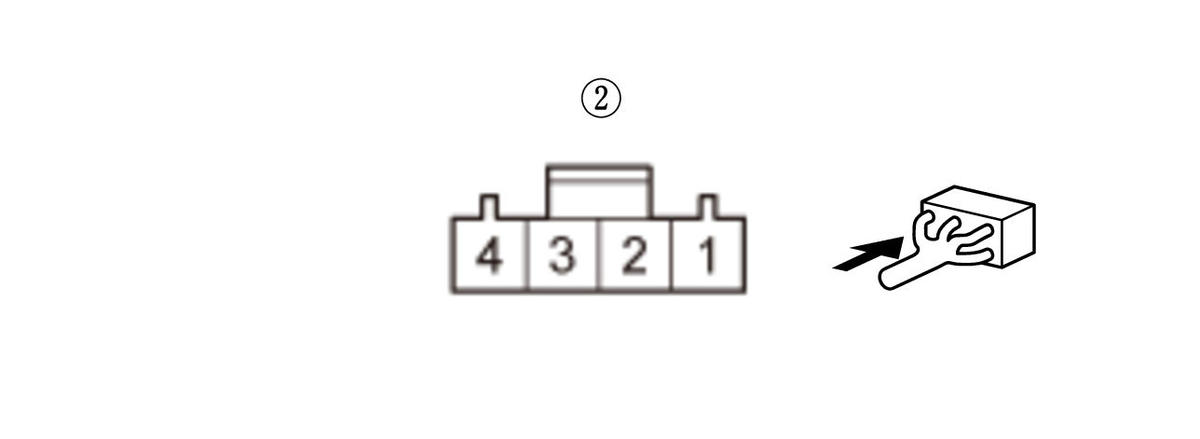

U0126	Steering angle sensor 4 connector
U0131	EPS control unit connector B (8P)
U0151	SRS unit connector A (39P)
U0155	Gauge control module connector A (32P)

- 3. Disconnect the following connectors.

CAN gateway 16P connector

- 4. Check for continuity between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode
	CAN gateway 16P connector: disconnected
	Transmitting control unit connector (s) for indicated DTCs: disconnected

DTC	Circuit name	Test point 1 (Receiving control unit)		Test point 2 (Transmitting control unit)
DTC	Circuit name	Connector	Terminal	Connector	Terminal
U0101	F-CAN A_H	CAN gateway 16P connector (female terminals) :	No. 3	TCM 58P connector	No. 34
U0101	F-CAN A_L	CAN gateway 16P connector (female terminals) :	No. 11	TCM 58P connector	No. 47
U0103	F-CAN A_H	CAN gateway 16P connector (female terminals) :	No. 3	Connector View - SBW shifter control module 20P connector	No. 5
U0103	F-CAN A_L	CAN gateway 16P connector (female terminals) :	No. 11	Connector View - SBW shifter control module 20P connector	No. 6
U0104	F-CAN A_H	CAN gateway 16P connector (female terminals) :	No. 3	Multipurpose camera unit 20P connector - Refer to: Connector View - Multipurpose camera unit 20P connector	No. 2
U0104	F-CAN A_L	CAN gateway 16P connector (female terminals) :	No. 11		No. 13
U0122	F-CAN A_H	CAN gateway 16P connector (female terminals) :	No. 3	VSA modulator-control unit 38P connector - Refer to: VSA Modulator-Control Unit Connector for Inputs and Outputs (2016 2017 2018), or VSA Modulator-Control Unit Connector for Inputs and Outputs (2019 2020 2021)	No. 6
U0122	F-CAN A_L	CAN gateway 16P connector (female terminals) :	No. 11		No. 7
U0126	F-CAN A_H	CAN gateway 16P connector (female terminals) :	No. 3	Steering angle sensor 4P connector:	No. 2
U0126	F-CAN A_L	CAN gateway 16P connector (female terminals) :	No. 11	Steering angle sensor 4P connector:	No. 3
U0131	F-CAN A_H	CAN gateway 16P connector (female terminals) :	No. 3	EPS control unit connector B (8P) - Refer to: EPS Control Unit Connector for Inputs and Outputs (2016 2017 2018), or EPS Control Unit Connector for Inputs and Outputs (2019 2020 2021)	No. 3
U0131	F-CAN A_L	CAN gateway 16P connector (female terminals) :	No. 11		No. 8
U0151	F-CAN A_H	CAN gateway 16P connector (female terminals) :	No. 3	SRS unit connector A (39P) - Refer to: SRS Unit Connector for Inputs and Outputs (2016), or SRS Unit Connector for Inputs and Outputs (2019 2020 2021), or SRS Unit Connector for Inputs and Outputs (2017 2018)	No. 34
U0151	F-CAN A_L	CAN gateway 16P connector (female terminals) :	No. 11		No. 35
U0155	F-CAN A_H	CAN gateway 16P connector (female terminals) :	No. 3	Gauge control module connector A (32P) - Refer to: Gauge Control Module Connector for Inputs and Outputs (2019), or Gauge Control Module Connector for Inputs and Outputs (2020 2021), or Gauge Control Module Connector for Inputs and Outputs (2016 2017 2018)	No. 19
U0155	F-CAN A_L	CAN gateway 16P connector (female terminals) :	No. 11		No. 20

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

The F-CAN A_H wire and the F-CAN A_L wire are OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting.

According to the detected DTC on the following table, substitute or replace the correspond control unit.

DTC	Operation for transmitting control unit
U0101	Check for poor connections or loose terminals at the CAN gateway and the TCM. Substitute a known-good TCM , then recheck. If DTC U0101 goes away and the TCM was substituted, replace the original TCM .
U0103	Check for poor connections or loose terminals at the CAN gateway and the SBW shifter control module. Substitute a known-good SBW shifter control module , then recheck. If DTC U0103 goes away and the SBW shifter control module was substituted, replace the original SBW shifter control module .

DTC	Operation for transmitting control unit
U0104	Check for poor connections or loose terminals at the CAN gateway and the multipurpose camera unit. Substitute a known-good multipurpose camera unit , then recheck. If DTC U0104 goes away and the multipurpose camera unit was substituted, replace the original multipurpose camera unit .
U0122	Check for poor connections or loose terminals at the CAN gateway and the VSA modulator-control unit. Replace the VSA modulator-control unit .
U0126	Check for poor connections or loose terminals at the CAN gateway and the steering angle sensor. Replace the steering angle sensor .
U0131	Check for poor connections or loose terminals at the CAN gateway and the EPS control unit. Replace the EPS control unit .
U0151	Check for poor connections or loose terminals at the CAN gateway and the SRS unit. Substitute a known-good SRS unit, then recheck. - Refer to: SRS Unit Removal and Installation (2017 2018 2019 2020 2021), or SRS Unit Removal and Installation (2016) . If DTC U0151 goes away and the SRS unit was substituted, replace the original SRS unit - Refer to: SRS Unit Removal and Installation (2016), or SRS Unit Removal and Installation (2017 2018 2019 2020 2021) .
U0155	Check for poor connections or loose terminals at the CAN gateway and the gauge control module. Substitute a known-good gauge control module , then recheck. If DTC U0155 goes away and the gauge control module was substituted, replace the original gauge control module .

Repair an open in the F-CAN A_H wire or the F-CAN A_L wire between the transmitting control unit and the CAN gateway.

Open wire check (F-CAN B_H line, F-CAN B_L line)

- 1. Turn the vehicle to the OFF (LOCK) mode.

- 2. Disconnect the following connectors.

CAN gateway 16P connector

- 3. Disconnect the transmitting control unit connector (s).

Refer to the DTC shown on the display, then disconnect the connector (s) based on the instructions (see table).

DTC	Connector
U0101	TCM 58P connector
U0103	SBW shifter control module 20P connector
U0114	i-VTM control unit 24P connector
U1101	Engine mount control unit 16P connector
U129E	Keyless access/TPMS control unit connector C (20P)

- 4. Check for continuity between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode
	CAN gateway 16P connector: disconnected
	Transmitting control unit connector (s) for indicated DTCs: disconnected

DTC	Circuit name	Test point 1 (Receiving control unit)		Test point 2 (Transmitting control unit)
DTC	Circuit name	Connector	Terminal	Connector	Terminal
U0101	F-CAN B_H	CAN gateway 16P connector (female terminals) :	No. 6	TCM 58P connector - Refer to: A/T Control System Connector For Inputs And Outputs (16-20 6-Speed A/T) A/T Control System Connector For Inputs And Outputs (2016 2017 2018: 9-Speed A/T), or A/T Control System Connector For Inputs And Outputs (2020 2021: 9-speed A/T), or A/T Control System Connector For Inputs And Outputs (2019: 9-Speed A/T)	No. 7
U0101	F-CAN B_L	CAN gateway 16P connector (female terminals) :	No. 14		No. 20
U0103	F-CAN B_H	CAN gateway 16P connector (female terminals) :	No. 6	SBW shifter control module 20P connector - Refer to: A/T Control System Connector For Inputs And Outputs (2016 2017 2018 2019 2020: 6-Speed A/T) A/T Control System Connector For Inputs And Outputs (2016 2017 2018: 9-Speed A/T), or A/T Control System Connector For Inputs And Outputs (2019: 9-Speed A/T), or A/T Control System Connector For Inputs And Outputs (2020 2021: 9-speed A/T)	No. 9
U0103	F-CAN B_L	CAN gateway 16P connector (female terminals) :	No. 14		No. 10
U0114	F-CAN B_H	CAN gateway 16P connector (female terminals) :	No. 6	i-VTM control unit 24P connector - Refer to: i-VTM Control Unit Connector for Inputs and Outputs (AWD) (2016 2017 2018), or i-VTM Control Unit Connector for Inputs and Outputs (AWD) (2019 2020 2021)	No. 14
U0114	F-CAN B_L	CAN gateway 16P connector (female terminals) :	No. 14		No. 24
U1101	F-CAN B_H	CAN gateway 16P connector (female terminals) :	No. 6	Engine mount control unit 16P connector	No. 13
U1101	F-CAN B_L	CAN gateway 16P connector (female terminals) :	No. 14	Engine mount control unit 16P connector	No. 15

DTC	Circuit name	Test point 1 (Receiving control unit)		Test point 2 (Transmitting control unit)
DTC	Circuit name	Connector	Terminal	Connector	Terminal
U129E	F-CAN B_H	CAN gateway 16P connector (female terminals) :	No. 6	Keyless access/TPMS control unit connector C (20P) - Refer to: Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2019 2020 2021), or Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2016 2017 2018)	No. 2
U129E	F-CAN B_L	CAN gateway 16P connector (female terminals) :	No. 14		No. 12

Is there continuity?

YES

The F-CAN B_H wire and the F-CAN B_L wire are OK.

Check for any authorized service information related to the DTCs or symptoms you are troubleshooting.

Refer to the DTC shown on the display, then substitute or replace the control unit based on the instructions (see table).

DTC	Operation for transmitting control unit
U0101	Check for poor connections or loose terminals at the CAN gateway and the TCM. Substitute a known-good TCM , then recheck. If DTC U0101 goes away and the TCM was substituted, replace the original TCM .
U0103	Check for poor connections or loose terminals at the CAN gateway and the SBW shifter control module. Substitute a known-good SBW shifter control module , then recheck. If DTC U0103 goes away and the SBW shifter control module was substituted, replace the original SBW shifter control module .
U0114	Check for poor connections or loose terminals at the CAN gateway and the i-VTM control unit. Replace the i-VTM control unit .
U1101	Check for poor connections or loose terminals at the CAN gateway and the engine mount control unit. Substitute a known-good engine mount control unit , then recheck. If DTC U1101 goes away and the engine mount control unit was substituted, replace the original engine mount control unit .
U129E	Check for poor connections or loose terminals at the CAN gateway and the keyless access/TPMS control unit. Substitute a known-good keyless access/TPMS control unit , then recheck. If DTC U129E goes away and the keyless access/TPMS control unit was substituted, replace the original keyless access/TPMS control unit .

Repair an open in the F-CAN B_H wire and/or the F-CAN B_L wire between the receiving control unit and the transmitting control unit.
