Parking Brake Switch: Test
NOTE: If both the ABS/VSA indicator and the brake system indicator come on at the same time, check the VSA system for DTCs first.
- Parking Brake Switch - Test

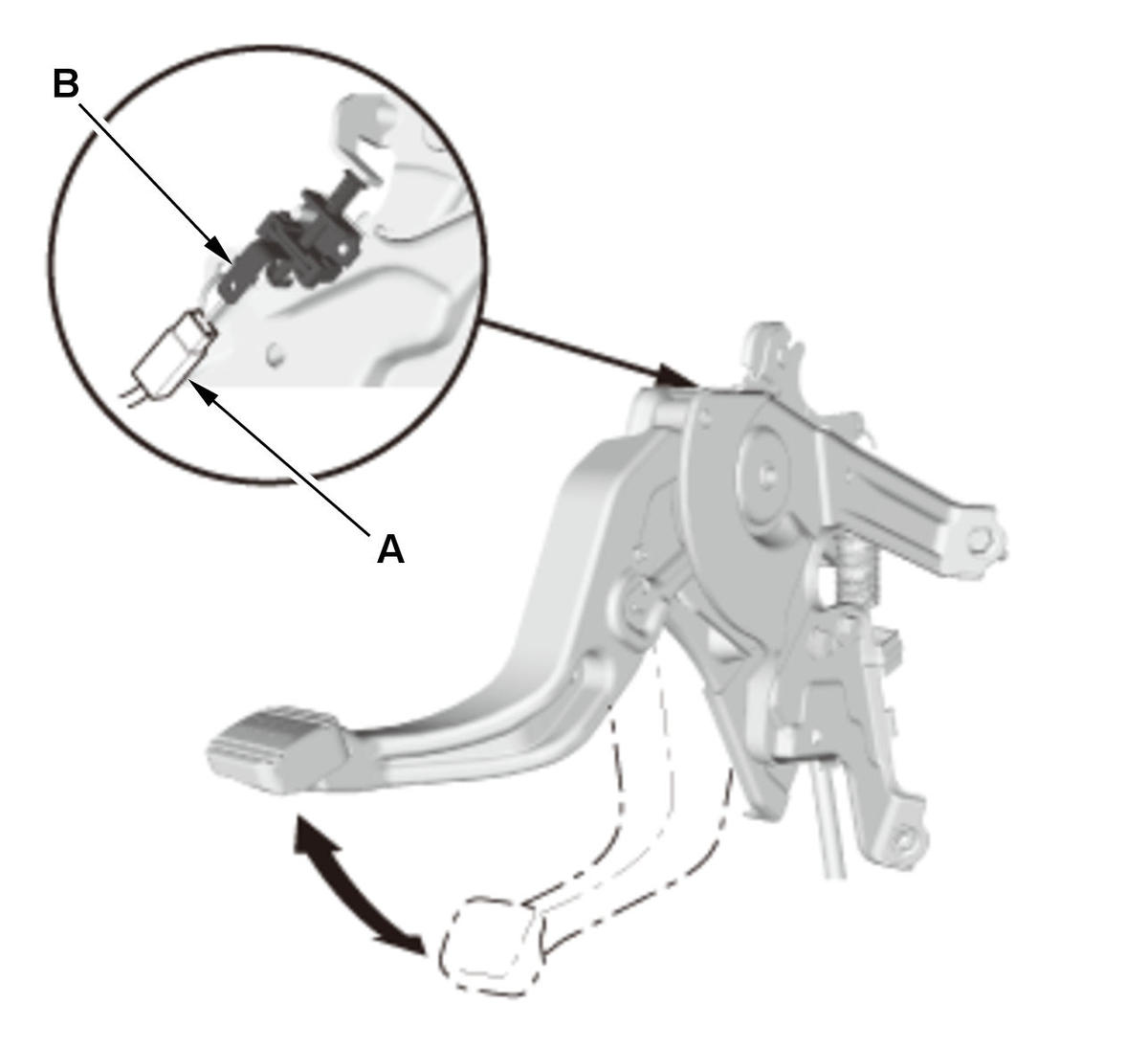

1. Disconnect the connector (A). 2. Check for continuity between the switch terminal (B) and body ground.
- With the parking brake pedal pressed, there should be continuity.
- With the parking brake pedal released, there should be no continuity.
NOTE: If the parking brake switch and the brake fluid level switch are OK, but the brake system indicator does not function, do the gauge control module self-diagnostic function - Refer to:
Gauges Self-Diagnostic Function (2016 2017 2018)
Gauges Self-Diagnostic Function (2019 2020 2021)3. Connect the connector.
