Removal and Installation

Headliner - Remove - Refer to:
Headliner Removal and Installation (WITHOUT Panoramic Glass Roof), or

Headliner Removal and Installation (WITH Panoramic Glass Roof)

Electrical Compass Unit - Remove

Courtesy of HONDA, U.S.A., INC.

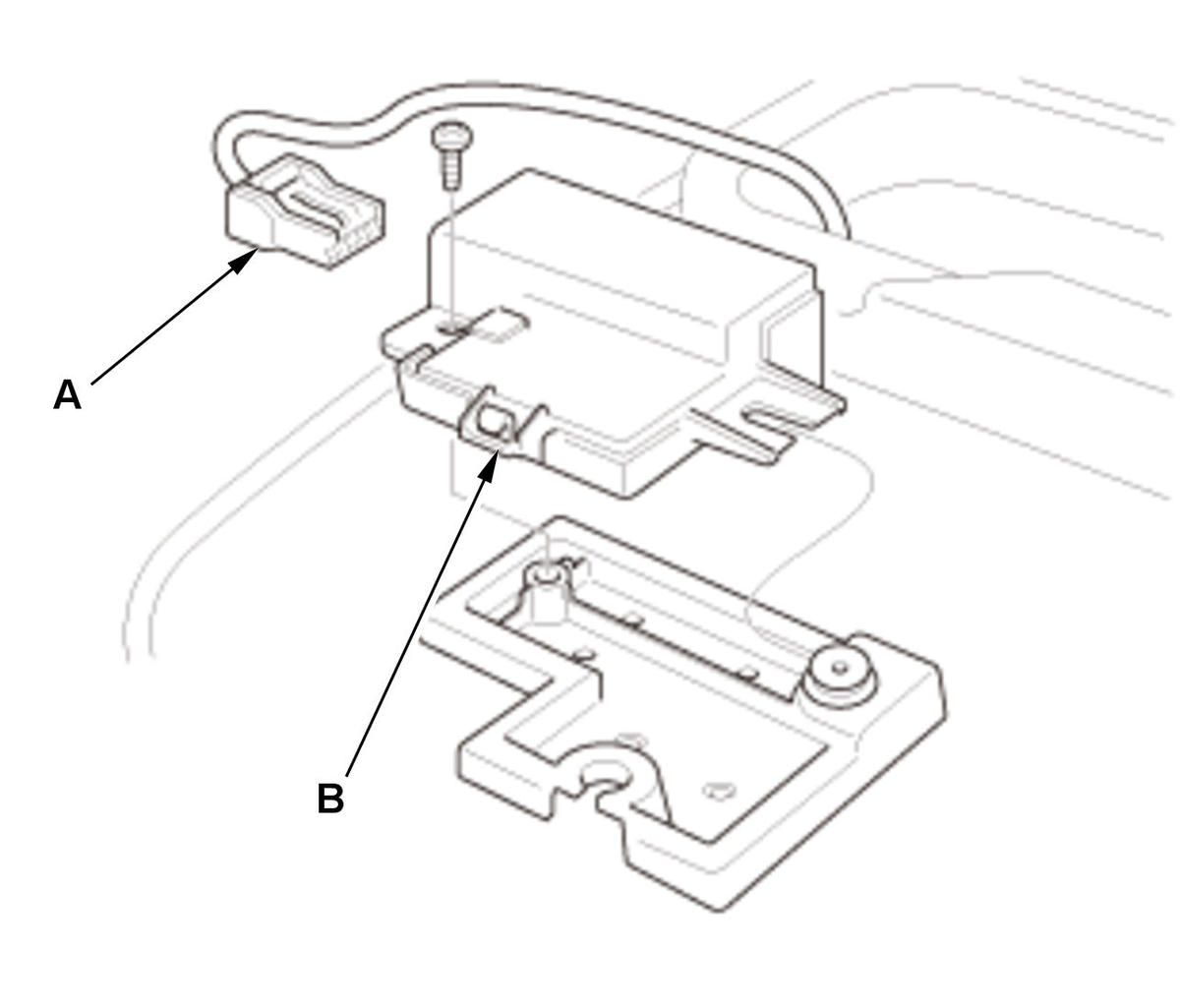

1. Disconnect the connector (A).

2. Remove the electrical compass unit (B).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
NOTE: If you replaced the electrical compass unit, set the compass zone .
