Under-Dash Fuse/Relay Box Connector for Inputs and Outputs
| Connector Index |
|---|
| UNDER-DASH FUSE/RELAY BOX CONNECTOR D (44P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR E (36P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR F (18P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR G (4P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR H (13P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR M (12P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR N (20P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR P (24P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR Q (10P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR R (16P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR S (18P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR T (10P) |

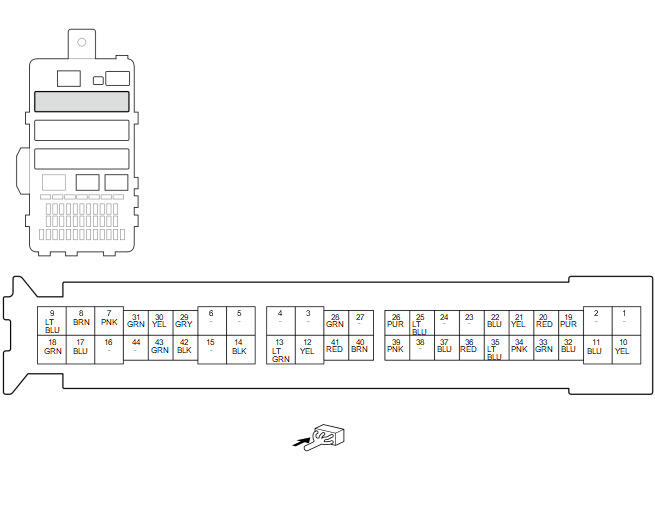

Under-Dash Fuse/Relay Box Connector D (44P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | --- | --- |
| 2 | Not used | --- | --- |
| 3 | Not used | --- | --- |
| 4 | Not used | --- | --- |
*1:'16-18With front seat heater*2: With power tailgate*3: Without power tailgate*4:'16With front passenger's weight sensor unit*5:'19-23*6: With third row seat*7: Without third row seat*8: Without keyless access function
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 5 | Not used | --- | --- |
| 6 | Not used | --- | --- |
| 7 | +B DR P/SEAT(REC) | Power output terminal for recline motor and rear up-down motor | About battery voltage at all times |
| 8 | BACK LT | Power output terminal for back-up lights | With vehicle in ON mode and R position/mode: about battery voltage If none of above conditions are met: less than 0.2 V |
| 9 | +B DR P/SEAT(SLI) | Power output terminal for slide motor and front up-down motor | About battery voltage at all times |
| 10 | +B RR L P/W | Drives left rear power window motor | With vehicle in ON mode: about battery voltage |
| 11 | L SIDE DOOR LOCK | Drives left rear door lock actuator | When left rear door lock actuator in locking operation: about battery voltage |
| 12 | L SIDE DOOR UNLOCK | Drives left rear door lock actuator | When left rear door lock actuator in unlocking operation: about battery voltage |
| 13* 1 | +B H/SEAT | Power output terminal for front seat heater | About battery voltage at all times |
| 14 | GND | Ground for MICU | Less than 0.2 V at all times |
| 15 | Not used | --- | --- |
| 16 | Not used | --- | --- |
| 17* 3 | T/GATE ACT RLY OUT | Drives tailgate release actuator | When tailgate release actuator in open operation: about battery voltage |
| 18 | +B RR R P/W | Drives right rear power window motor | With vehicle in ON mode: about battery voltage |
| 19 | +B DR POWER LUMBAR | Drives driver's power lumbar support motor | About battery voltage at all times |
| 20* 5 | SMALL LT | Power source for parking lights | With parking lights are OFF: less than 0.2 V With parking lights are ON: about battery voltage |
| 21* 4 | IG1 SWS | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 22 | RR WIPER CL- | Detects RR WIPER CL- signal | With vehicle in ON mode and rear window wiper ON: about battery voltage With vehicle in ON mode and rear window wiper OFF: less than 0.2 V |
| 23 | Not used | --- | --- |
| 24 | Not used | --- | --- |
| 25 | RR DR SILCON UNLOCK | Detects RR DR SILCON UNLOCK signal | With left rear door lock knob switch UNLOCK: less than 0.2 V With left rear door lock knob switch LOCK: about battery voltage |
| 26 | RR AS SILCON UNLOCK | Detects RR AS SILCON UNLOCK signal | With right rear door lock knob switch UNLOCK: less than 0.2 V With right rear door lock knob switch LOCK: about battery voltage |
| 27 | Not used | --- | --- |
| 28 | RR DOOR SW | Detects RR DOOR SW signal | With right rear door switch ON: less than 0.2 V With right rear door switch OFF and MICU is wakeup mode: about battery voltageWith right rear door switch OFF and MICU is sleep mode: pulse |
| 29* 6 | RR L SEAT CL- | Output RR L SEAT CL- signal | With left one-touch access switch ON: less than 0.2 V With left one-touch access switch OFF: about battery voltage |
| 29* 7 | RR L SEAT CL- | Output RR L SEAT CL- signal | With left seat remote fold down switch ON: less than 0.2 V With left seat remote fold down switch OFF: about battery voltage |
| 30* 8 | PTG O/H SW | Detects PTG O/H SW signal | With tailgate outer handle switch ON: less than 0.2 V With tailgate outer handle switch OFF: about battery voltage |
| 31 | IG1 METER | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 32 | L TURN SIG | Power output terminal for left rear turn signal light | With left turn signal light ON: about battery voltage |
| 33 | R TURN SIG | Power output terminal for right rear turn signal light | With right turn signal light ON: about battery voltage |
| 34 | RL DOOR SW | Detects RL DOOR SW signal | With left rear door switch ON: less than 0.2 V With left rear door switch OFF and MICU is wakeup mode: about battery voltage With left rear door switch OFF and MICU is sleep mode: pulse |
| 35 | FL DOOR SW | Detects FL DOOR SW signal | With driver's door switch ON: less than 0.2 V With driver's door switch OFF and MICU is wakeup mode: about battery voltage With driver's door switch OFF and MICU is sleep mode: pulse |
*1:'16-18 With front seat heater *2: With power tailgate*3: Without power tailgate *4:'16 With front passenger's weight sensor unit *5:'19-23*6: With third row seat *7: Without third row seat *8: Without keyless access function
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 36 | IG1 RR WIPER | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 37 | FR DOOR SW | Detects FR DOOR SW signal | With front passenger's door switch ON: less than 0.2 V With front passenger's door switch OFF and MICU is wakeup mode: about battery voltage With front passenger's door switch OFF and MICU is sleep mode: pulse |
| 38 | Not used | --- | --- |
| 39* 2 | T/GATE SW | Detects T/GATE SW signal | With full latch switch ON: less than 0.2 V With full latch switch OFF and MICU is wakeup mode: about battery voltage With full latch switch OFF and MICU is sleep mode: pulse |
| 39* 3 | T/GATE SW | Detects T/GATE SW signal | With tailgate latch switch ON: less than 0.2 V With tailgate latch switch OFF and MICU is wakeup mode: about battery voltage With tailgate latch switch OFF and MICU is sleep mode: pulse |
| 40* 6 | R RR SEAT CL- | Output R RR SEAT CL- signal | With right one-touch access switch ON: less than 0.2 V With right one-touch access switch OFF: about battery voltage |
| 40* 7 | R RR SEAT CL- | Output R RR SEAT CL- signal | With right seat remote fold down switch ON: less than 0.2 V With right seat remote fold down switch OFF: about battery voltage |
| 41 | CARGO LT- | Detects CARGO LT- signal | With cargo area light ON: less than 0.2 V |
| 42 | GND | Ground for MICU | Less than 0.2 V at all times |
| 43* 6 | SEAT SW ILL+ | Output SEAT SW ILL+ signal | With parking lights are ON and left or right rear door switch ON: less than 0.2 V |
| 44 | Not used | --- | --- |
*1:'16-18 With front seat heater*2: With power tailgate*3: Without power tailgate*4:'16 With front passenger's weight sensor unit*5:'19-23*6: With third row seat*7: Without third row seat*8: Without keyless access function

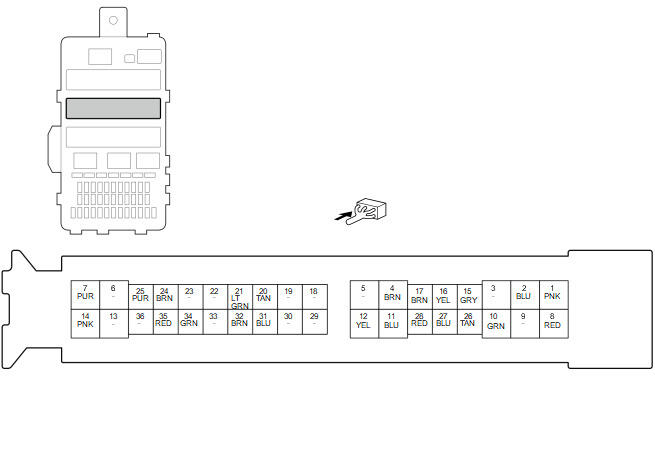

Under-Dash Fuse/Relay Box Connector E (36P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | FR WASHER RLY CL- | Output FR WASHER RLY CL- signal | With front washer switch ON: less than 0.2 V With front washer switch OFF: about battery voltage |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 2 | RR WASHER RLY CL- | Output RR WASHER RLY CL- signal | With rear washer switch ON: less than 0.2 V With rear washer switch OFF: about battery voltage |
| 3 | Not used | --- | --- |
| 4 | +B HAZARD | Power source for IPD | About battery voltage at all times |
| 5 | Not used | --- | --- |
| 6 | Not used | --- | --- |
| 7 | STOP SW | Detects STOP SW signal | With brake pedal pressed: about battery voltage With brake pedal released: less than 0.2 V |
| 8 | L H/L HI | Power output terminal for left headlight (Hi) | With headlight (Hi) is ON: about battery voltage With headlight (Hi) is OFF: less than 0.2 V |
| 9 | Not used | --- | --- |
| 10 | IG1 START CUT | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 11 | +B ACC/IG2 MAIN | Power output terminal for IG2 relay circuit | About battery voltage at all times |
| 12 | IG1 FUEL PUMP | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 13 | Not used | --- | --- |
| 14 | SMALL LT RLY OUT | Power output terminal for exterior lights | With parking lights are ON: about battery voltage With parking lights are OFF: less than 0.2 V |
| 15 | WIPER HI/LO RLY CL- | Power output terminal for windshield wiper high/low relay | With vehicle in ON mode and windshield wiper LO speed: less than 0.2 V With vehicle in ON mode and windshield wiper HI speed: about battery voltage |
| 16 | WIPER INT RLY CL- | Power output terminal for windshield wiper intermittent relay | With vehicle in ON mode and windshield wiper operation: less than 0.2 V With vehicle in ON mode and windshield wiper stopping: about battery voltage |
| 17 | ATP-R | Detects ATP-R signal | With vehicle in ON mode and R position/mode: less than 0.2 VIf none of above conditions are met: about battery voltage |
| 18 | Not used | --- | --- |
| 19 | Not used | --- | --- |
| 20 | DRL SIG | Detects DRL SIG signal | --- |
| 21 | FR FOG LT RLY CL- | Output FR FOG LT RLY CL- signal | With front fog lights are ON: less than 0.2 V With front fog lights are OFF: about battery voltage |
| 22 | Not used | --- | --- |
| 23 | Not used | --- | --- |
| 24 | H/L LO RLY CL- | Output H/L LO RLY CL- signal | With headlight (Lo) is ON: less than 0.2 V With headlight (Lo) is OFF: about battery voltage |
| 25 | SMALL LT RLY CL- | Output SMALL LT RLY CL- signal | With parking lights are ON: less than 0.2 V With parking lights are OFF: about battery voltage |
| 26 | IG1 VSA | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 27 | ATP-P | Detects ATP-P signal | With out of P position/mode and MICU is wakeup mode: about battery voltage With P position/mode: less than 0.2 V With out of P position/mode and MICU is sleep mode: pulse |
| 28 | FR WIPER AS | Detects FR WIPER AS signal | With windshield wiper at out of auto-stop position and MICU is wakeup mode: pulse If none of above conditions are met: less than 0.2 V |
| 29 | Not used | --- | --- |
| 30 | Not used | --- | --- |
| 31 | HORN RLY CL- | Power output terminal for horn relay | With horn ON: less than 0.2 V With horn OFF: about battery voltage |
| 32 | IG1 MICU(DC/DC) | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 33 | Not used | --- | --- |
| 34 | IG1 WIPER | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 35 | IG2 DRL | IG2 power source | With vehicle in ON mode: about battery voltage |
| 36 | Not used | --- | --- |

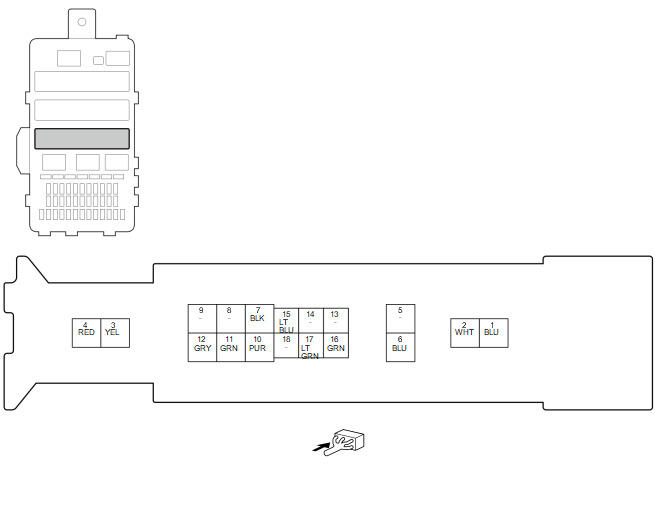

Under-Dash Fuse/Relay Box Connector F (18P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B IG MAIN2 | Power source for IG1A relay | About battery voltage at all times |
| 2 | +B IG MAIN | Power source for IG1B relay | About battery voltage at all times |
| 3 | +B F/BOX MAIN | +B power source | About battery voltage at all times |
| 4 | +B F/BOX MAIN2 | +B power source | About battery voltage at all times |
| 5 | Not used | --- | --- |
| 6 | +B H/L HI MAIN | Power source for exterior lights | About battery voltage at all times |
| 7 | GND | Ground for under-dash fuse/relay box | Less than 0.2 V at all times |
| 8 | Not used | --- | --- |
| 9 | Not used | --- | --- |
| 10 | IG1 OPTION | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 11 | IG1 ACG | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 12 | R H/L HI | Power output terminal for right headlight (Hi) | With headlight (Hi) is ON: about battery voltage With headlight (Hi) is OFF: less than 0.2 V |
| 13 | Not used | --- | --- |
| 14 | Not used | --- | --- |
| 15 | RR DEF RLY CL- | Outputs RR DEF RLY CL- signal | With vehicle in ON mode and rear window defogger OFF: about battery voltage With vehicle in ON mode and rear window defogger ON: less than 0.2 V |
| 16 | HOOD SW | Detects HOOD SW signal | With security hood switch ON : less than 0.2 V With security hood switch OFF and MICU is wakeup mode: about battery voltage With security hood switch OFF and MICU is sleep mode: pulse |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 17 | S-NET | Communication line | --- |
| 18 | Not used | --- | --- |
Under-Dash Fuse/Relay Box Connector G (4P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | IG1 SWS | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 2 | Not used | --- | --- |
| 3 | Not used | --- | --- |
| 4 | IG1 SRS | IG1 power source | With vehicle in ON or START mode: about battery voltage |

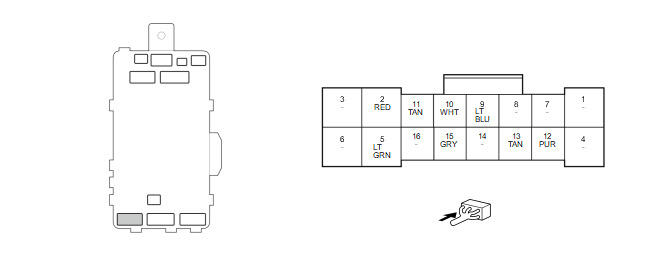

Under-Dash Fuse/Relay Box Connector H (13P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | --- | --- |
| 2 | Not used | --- | --- |
| 3 | Not used | --- | --- |
| 4 | +B INTERIOR LT | Power source for interior lights | About battery voltage at all times |
| 5 | Not used | --- | --- |
| 6 | Not used | --- | --- |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 7 | ACC RLY CL | ACC power source | With vehicle in ACCESSORY or ON mode: about battery voltage |
| 8 | IG1 RLY CL | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 9 | Not used | --- | --- |
| 10 | HORN SW | Detects HORN SW signal | With horn switch ON: less than 0.2 V With horn switch OFF: about battery voltage |
| 11 | INTR LT- | Outputs INTR LT- signal | With interior light switch in DOOR position and interior lights ON: less than 0.2 V |
| 12 | IG2 RLY CL | IG2 power source | With vehicle in ON mode: about battery voltage |
| 13 | SMALL LT | Power source for parking lights | With parking lights are OFF: less than 0.2 V With parking lights are ON: about battery voltage |
Under-Dash Fuse/Relay Box Connector M (12P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | B-CAN_L | Communication line | --- |
| 2 | IG1A FBK | Outputs IG1A FBK signal | With vehicle in ON or START mode: about battery voltage |
| 3 | IG1B FBK | Outputs IG1B FBK signal | With vehicle in ON or START mode: about battery voltage |
| 4 | Not used | --- | --- |
| 5 | R TURN SIG | Power output terminal for right side turn signal light* and right front turn signal light | With right turn signal light ON: about battery voltage |
| 6 | SMART RLY GND | Ground for IG1A/IG1B relays and IG2/ACC relays circuits | Less than 0.2 V at all times |
| 7 | B-CAN_H | Communication line | --- |
| 8 | S-NET | Communication line | --- |
| 9 | +B BACKUP | Power source for MICU and other units | About battery voltage at all times |
| 10 | IG2-MAIN | IG2 power source | With vehicle in ON mode: about battery voltage |
| 11 | L TURN SIG | Power output terminal for left side turn signal light* and left front turn signal light | With left turn signal light ON: about battery voltage |
| 12 | IG1 METER | IG1 power source | With vehicle in ON or START mode: about battery voltage |
*: With side turn signal light

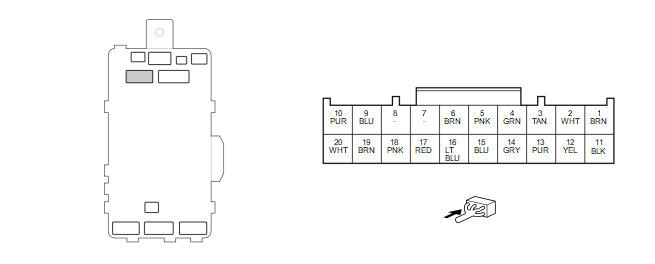

Under-Dash Fuse/Relay Box Connector N (20P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | COMBI SW GND(LT) | Ground for combination light switch | Less than 0.2 V at all times |
| 2 | FR WIPER HI SW | Detects FR WIPER HI SW signal | With windshield wiper switch Hi or Lo: less than 0.2 V With windshield wiper switch OFF and MICU is wakeup mode: about battery voltage With MICU is sleep mode: less than 0.2 V |
| 3 | FR WIPER INT SW | Detects FR WIPER INT SW signal | With windshield wiper switch INT (AUTO*) or Lo: less than 0.2 V With windshield wiper switch OFF and MICU is wakeup mode: about battery voltage With MICU is sleep mode: less than 0.2 V |
| 4 | RR WASHER SW | Detects RR WASHER SW signal | With rear washer switch ON: less than 0.2 V With rear washer switch OFF and MICU is wakeup mode: about battery voltage With MICU is sleep mode: less than 0.2 V |
| 5 | RR WIPER LO SW | Detects RR WIPER LO SW signal | With rear wiper switch ON: less than 0.2 V With rear wiper switch OFF and MICU is wakeup mode: about battery voltage With MICU is sleep mode: less than 0.2 V |
| 6 | RR WIPER INT SW | Detects RR WIPER INT SW signal | With vehicle in ON mode and rear wiper switch OFF: about battery voltage With vehicle in ON mode and rear wiper switch INT: less than 0.2 V |
| 7 | Not used | --- | --- |
| 8 | Not used | --- | --- |
| 9 | FR WIPER INT VOL | Detects FR WIPER INT VOL signal | With vehicle in ON mode: about 0-5 V (depending on intermittent dwell timer controller) |
| 10 | FR FOG SW | Detects FR FOG SW signal | With fog light switch ON: less than 0.2 V With fog light switch OFF and MICU is wakeup mode: about battery voltage With fog light switch OFF and MICU is sleep mode: pulse |
| 11 | COMBI SW GND (WIP) | Ground for wiper/washer switch | Less than 0.2 V at all times |
| 12 | FR WASHER SW | Detects FR WASHER SW signal | With windshield washer switch ON: less than 0.2 V With windshield washer switch OFF and MICU is wakeup mode: about battery voltage With MICU is sleep mode: less than 0.2 V |
| 13 | FR WIPER MIST SW | Detects FR WIPER MIST SW signal | With windshield wiper switch MIST: less than 0.2 V With windshield wiper switch OFF and MICU is wakeup mode: about battery voltage With MICU is sleep mode: less than 0.2 V |
| 14 | R TURN SW | Detects R TURN SW signal | With right turn signal switch ON: less than 0.2 V With right turn signal switch OFF and MICU is wakeup mode: about battery voltage With MICU is sleep mode: less than 0.2 V |
| 15 | L TURN SW | Detects L TURN SW signal | With left turn signal switch ON: less than 0.2 VWith left turn signal switch OFF and MICU is wakeup mode: about battery voltage With MICU is sleep mode: less than 0.2 V |
*: With automatic wiper
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 16 | H/L HI SW | Detects H/L HI SW signal | With combination light switch Hi: less than 0.2 V With combination light switch OFF and MICU is wakeup mode: about battery voltage With combination light switch OFF and MICU is sleep mode: pulse |
| 17 | PASSING SW | Detects PASSING SW signal | With combination light switch PASSING: less than 0.2 V With combination light switch OFF and MICU is wakeup mode: about battery voltage With combination light switch OFF and MICU is sleep mode: pulse |
| 18 | H/L OFF SW | Detects H/L OFF SW signal | With combination light switch OFF: less than 0.2 V With combination light switch ON and MICU is wakeup mode: about battery voltage With combination light switch ON and MICU is sleep mode: pulse |
| 19 | H/L ON SW | Detects H/L ON SW signal | With combination light switch ON: less than 0.2 V With combination light switch OFF and MICU is wakeup mode: about battery voltage With combination light switch OFF and MICU is sleep mode: pulse |
| 20 | SMALL LT SW | Detects SMALL LT SW signal | With combination light switch PARKING: less than 0.2 V With combination light switch OFF and MICU is wakeup mode: about battery voltage With combination light switch OFF and MICU is sleep mode: pulse |
*: With automatic wiper

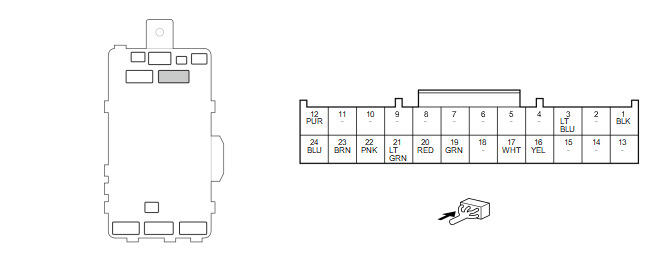

Under-Dash Fuse/Relay Box Connector P (24P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | GND | Ground for MICU | Less than 0.2 V at all times |
| 2 | Not used | --- | --- |
| 3 | IG1 REM | IG1 power source | With engine remote start operation: less than 0.2 V |
| 4 | Not used | --- | --- |
| 5 | Not used | --- | --- |
| 6 | Not used | --- | --- |
| 7 | Not used | --- | --- |
| 8 | Not used | --- | --- |
| 9 | Not used | --- | --- |
| 10 | Not used | --- | --- |
| 11 | Not used | --- | --- |
| 12* 2 | R LED TELLTALE | Detects R LED TELLTALE signal | --- |
| 13 | Not used | --- | --- |
| 14 | Not used | --- | --- |
*1:'16-18*2: With LED headlight*3: With third row seat*4: Without third row seat
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 15 | Not used | --- | --- |
| 16 | FUEL LID CL- | Outputs FUEL LID RLY CL- signal | With fuel fill door opener switch ON: less than 0.2 V With fuel fill door opener switch OFF: about battery voltage |
| 17 | INTR LT CUT CL- | Outputs INTR LT CUT RLY CL- signal | With interior lights are ON: less than 0.2 V With interior lights are OFF: about battery voltage |
| 18 | Not used | --- | --- |
| 19 | HAZARD SW | Detects HAZARD SW signal | With hazard warning switch ON: less than 0.2 V With hazard warning switch OFF: about battery voltage |
| 20* 3 | L SEAT SW | Detects L SEAT SW signal | With left one-touch access switch ON: less than 0.2 V With left one-touch access switch OFF and MICU is wakeup mode : about battery voltage With MICU is sleep mode: pulse |
| 20* 4 | L SEAT SW | Detects L SEAT SW signal | With left seat remote fold down switch ON: less than 0.2 V With left seat remote fold down switch OFF and MICU is wakeup mode : about battery voltage With MICU is sleep mode: pulse |
| 21* 3 | R SEAT SW | Detects R SEAT SW signal | With right one-touch access switch ON: less than 0.2 V With right one-touch access switch OFF and MICU is wakeup mode : about battery voltage With MICU is sleep mode: pulse |
| 21* 4 | R SEAT SW | Detects R SEAT SW signal | With right seat remote fold down switch ON: less than 0.2 V With right seat remote fold down switch OFF and MICU is wakeup mode : about battery voltage With MICU is sleep mode: pulse |
| 22 | KEY SW | Detects KEY SW signal | With vehicle in OFF (LOCK) mode and MICU in wakeup mode: about battery voltageWith vehicle in OFF (LOCK) mode and MICU in sleep mode: pulse |
| 23* 1 | SCTY(1) | Detects SCTY(1) signal | With audio unit installed: less than 0.2 VWith audio unit not installed and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: pulse |
| 24* 2 | L LED TELLTALE | Detects L LED TELLTALE signal | --- |
*1:'16-18*2: With LED headlight*3: With third row seat*4: Without third row seat
Under-Dash Fuse/Relay Box Connector Q (10P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | --- | --- |
| 2 | Not used | --- | --- |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 3 | FR DEF RLY CL- | Outputs FR DEF RLY CL- signal | With heated windshield wiper area ON: less than 0.2 VWith heated windshield wiper area OFF: about battery voltage |
| 4 | CDS | Detects CDS signal | --- |
| 5 | FR DEF SW | Detects FR DEF SW signal | With heated windshield wiper area switch ON: less than 0.2 VWith heated windshield wiper area switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V |
| 6 | Not used | --- | --- |
| 7 | Not used | --- | --- |
| 8 | Not used | --- | --- |
| 9 | EXT BUZ | Outputs EXT BUZ signal | --- |
| 10 | Not used | --- | --- |
Under-Dash Fuse/Relay Box Connector R (16P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | --- | --- |
| 2 | +B FR ACC SOCKET | Power source for front accessory power socket | About battery voltage at all times |
| 3 | Not used | --- | --- |
| 4 | Not used | --- | --- |
| 5 | +B H/SEAT | Power source for ventilated seat control unit* 1 or front seat heater control unit* 2 | About battery voltage at all times |
| 6 | Not used | --- | --- |
| 7 | Not used | --- | --- |
| 8 | Not used | --- | --- |
| 9 | K-LINE | Communication line | --- |
| 10 | B-CAN_H | Communication line | --- |
| 11 | B-CAN_L | Communication line | --- |
| 12 | ACC | ACC power source | With vehicle in ACCESSORY or ON mode: about battery voltage |
| 13 | IG1 VSA | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 14 | Not used | --- | --- |
| 15 | ILLUMI+ | Power source for interior lights | With interior lights are OFF: less than 0.2 VWith interior lights are ON: about battery voltage |
| 16 | Not used | --- | --- |
*1: With ventilated seat*2: With front seat heater control unit
Under-Dash Fuse/Relay Box Connector S (18P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | --- | --- |
| 2 | R SIDE DOOR LOCK | Drives front passenger's door and right rear door lock actuator | When front passenger's door and right rear door lock actuator in locking operation: about battery voltage |
| 3 | +B AS P/W | Power source for front passenger's power window switch | About battery voltage at all times |
| 4 | Not used | --- | --- |
| 5 | R SIDE DOOR UNLOCK | Drives front passenger's door and right rear door lock actuator | When front passenger's door and right rear door lock actuator in unlocking operation: about battery voltage |
| 6 | Not used | --- | --- |
| 7 | Not used | --- | --- |
| 8 | Not used | --- | --- |
| 9 | +B SMART | Power source for keyless access/TPMS control unit | About battery voltage at all times |
| 10 | Not used | --- | --- |
| 11 | Not used | --- | --- |
| 12 | Not used | --- | --- |
| 13 | Not used | --- | --- |
| 14 | Not used | --- | --- |
| 15 | Not used | --- | --- |
| 16 | Not used | --- | --- |
| 17 | DR CRTSY LT | Outputs DR CRTSY LT signal | With driver's door courtesy light ON: less than 0.2 V |
| 18 | AS CRTSY LT | Outputs AS CRTSY LT signal | With front passenger's door courtesy light ON: less than 0.2 V |
Under-Dash Fuse/Relay Box Connector T (10P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | --- | --- |
| 2 | IG2 A/C | IG2 power source | With vehicle in ON mode: about battery voltage |
| 3 | BACK LT | Power source for back-up lights | With vehicle in ON mode and R position/mode: about battery voltageIf none of above conditions are met: less than 0.2 V |
| 4 | Not used | --- | --- |
| 5 | DR DOOR UNLOCK | Drives driver's door lock actuator | When driver's door lock actuator in unlocking operation: about battery voltage |
| 6 | DR DOOR LOCK | Drives driver's door lock actuator | When driver's door lock actuator in locking operation: about battery voltage |
| 7 | IG1 OPTION | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 8 | Not used | --- | --- |
| 9 | +B SUNROOF | Power source for moonroof motor-control unit | About battery voltage at all times |
| 10 | +B DR P/W | Power source for Power window master switch | About battery voltage at all times |
