Entering the Self-Diagnostic Function (Manual Method)
Before doing the self-diagnostic function, make sure the No. A26 and No. D1 fuses are OK.

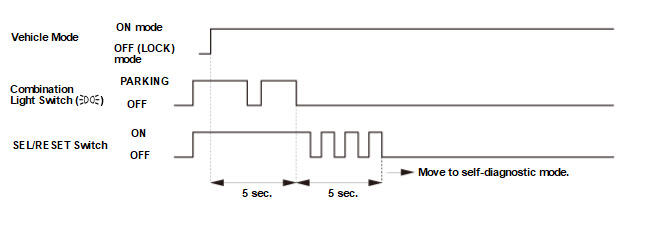

1. Push and hold the SEL/RESET button.
2. Turn the combination light switch to the PARKING position (
).
3. Turn the vehicle to the ON mode.
4. Within 5 seconds, turn the combination light switch to OFF, then to the PARKING position (
) and OFF again.Within 5 seconds, release the SEL/RESET button, and then repeatedly push and release the button three times.
NOTE:
- While in the self-diagnostic mode, the dashlights brightness controller operates normally.
- While in the self-diagnostic mode, the SEL/RESET switch is used to start the Beeper Drive Circuit Test and the Gauge Drive Circuit Check.
- If the vehicle speed exceeds 1.2 mph (2 km/h), or turn the vehicle to the OFF (LOCK) mode, the self-diagnostic mode ends.
