Parking and Back-Up Sensor System Component Location Index

For relationships between signals in a system, refer to System Diagram - Refer to: Parking and Back-Up Sensor System Description - Control/Function  or Parking and Back-Up Sensor System Description - System Diagram  or Parking and Back-Up Sensor System Description - Overview  or Parking and Back-Up Sensor System Description - Components .

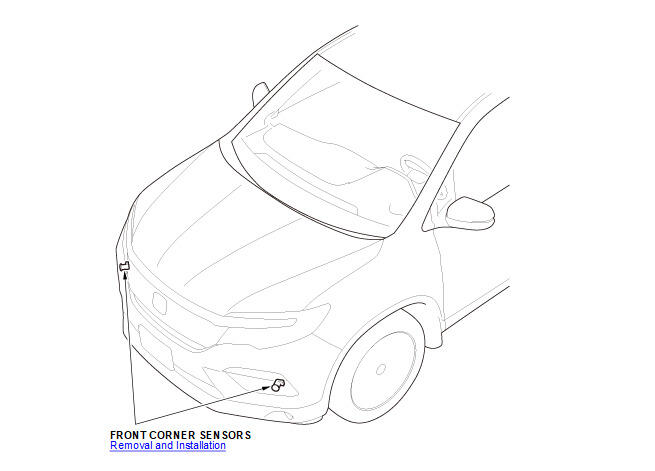

Courtesy of HONDA, U.S.A., INC.

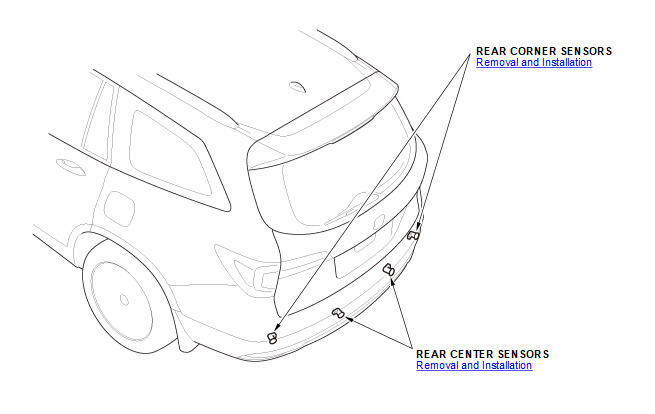

Courtesy of HONDA, U.S.A., INC.

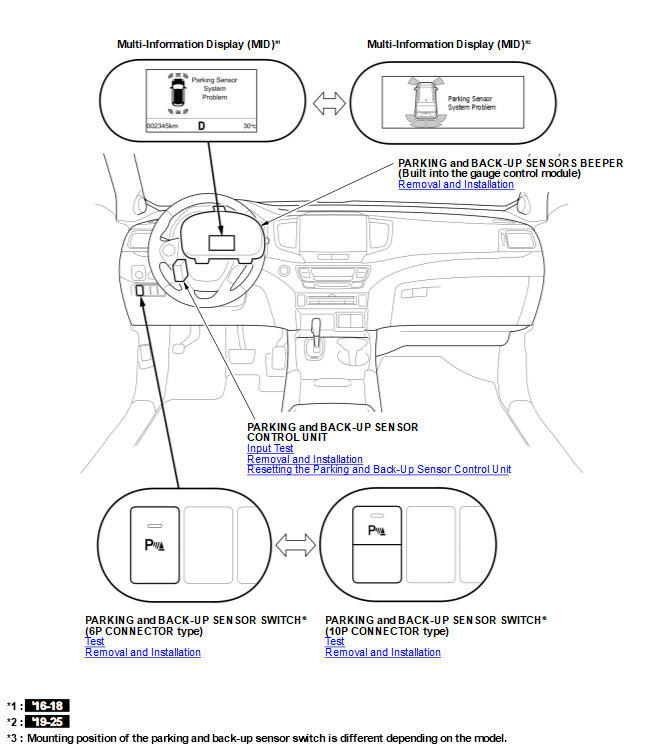

Courtesy of HONDA, U.S.A., INC.
