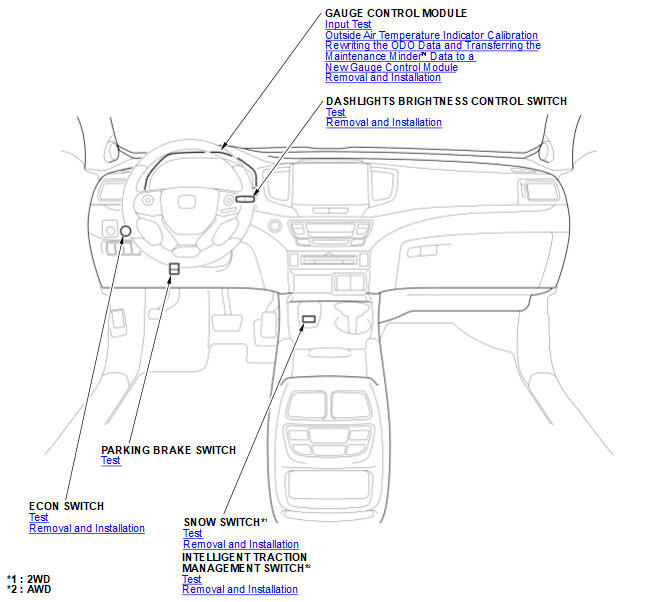

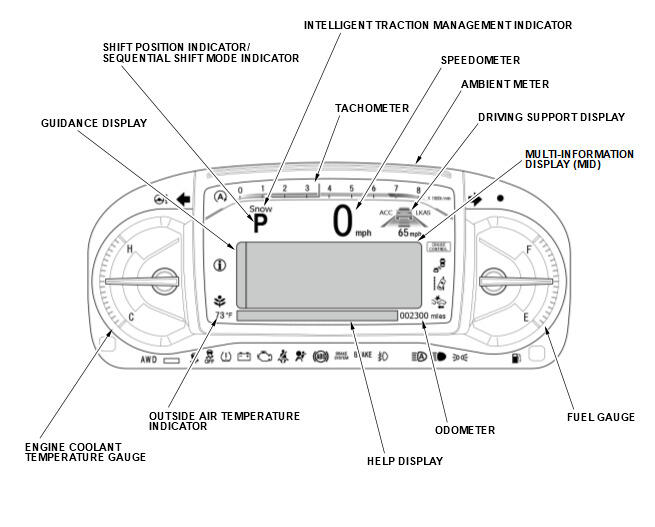

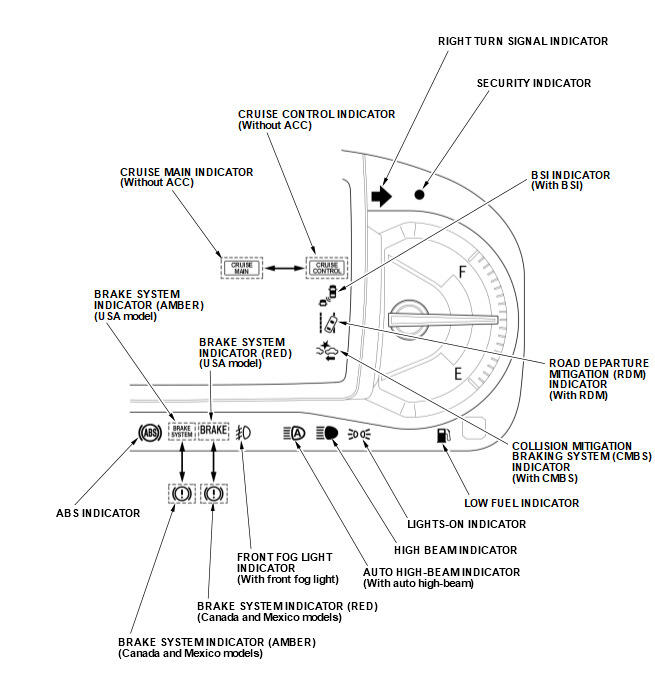

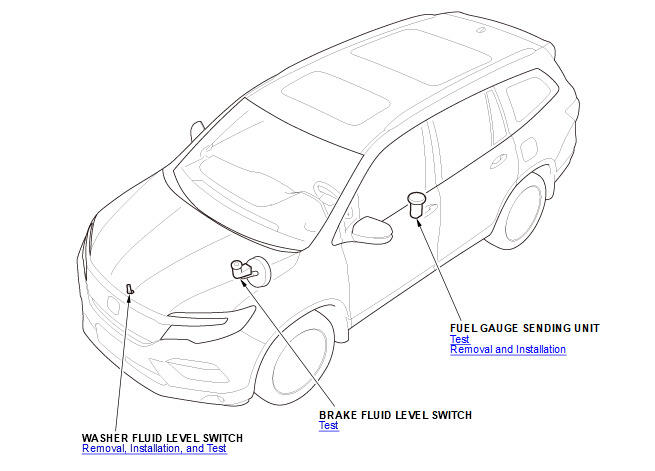

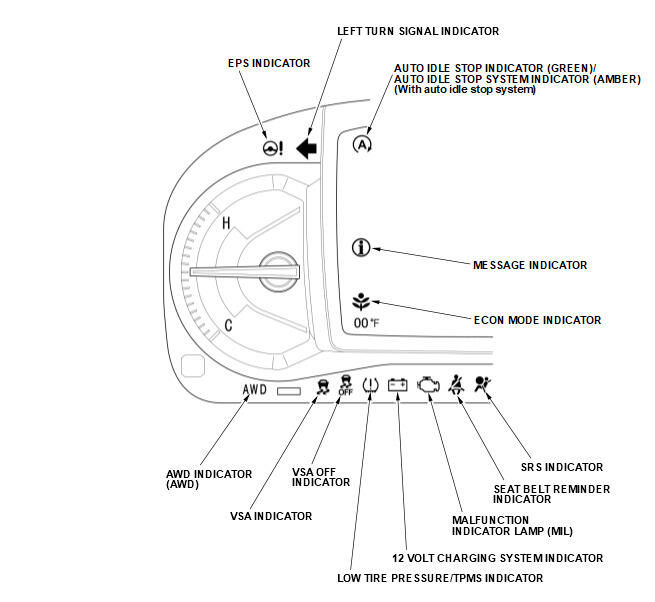

Gauges Component Location Index

For relationships between signals in a system, refer to System Diagram - Refer to: Gauges System Description - Overview  or Gauges System Description - System Diagram  or Gauges System Description - Control/Function .

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
