LEMON Manuals: Even more car manuals for everyone
Home >> Honda >> 2021 >> Passport Elite >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Gauges - Service, Testing And Troubleshooting >> Circuit Diagram >> Gauges Circuit Diagram

Gauges Circuit Diagram

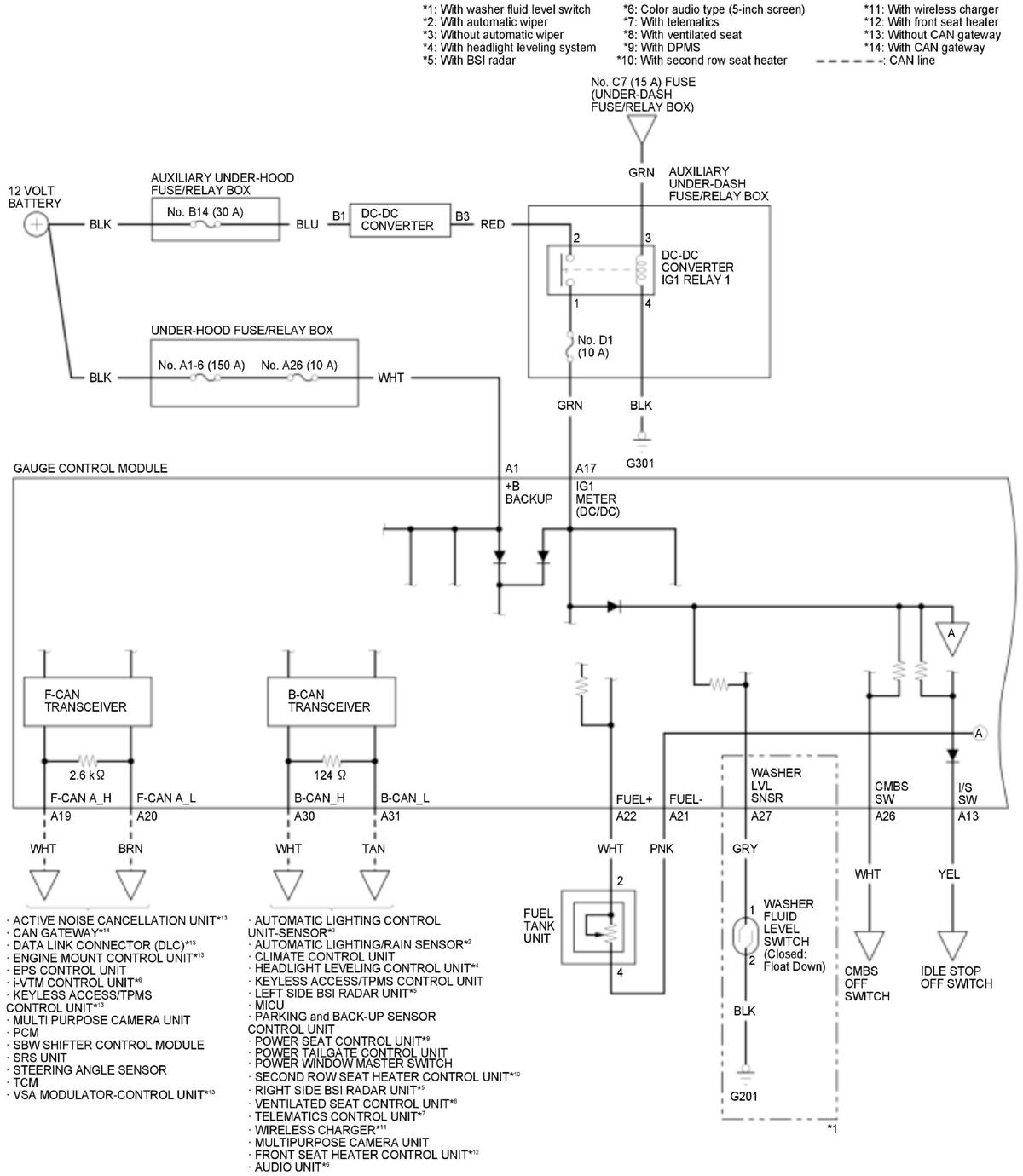

GHH371179Courtesy of HONDA, U.S.A., INC.

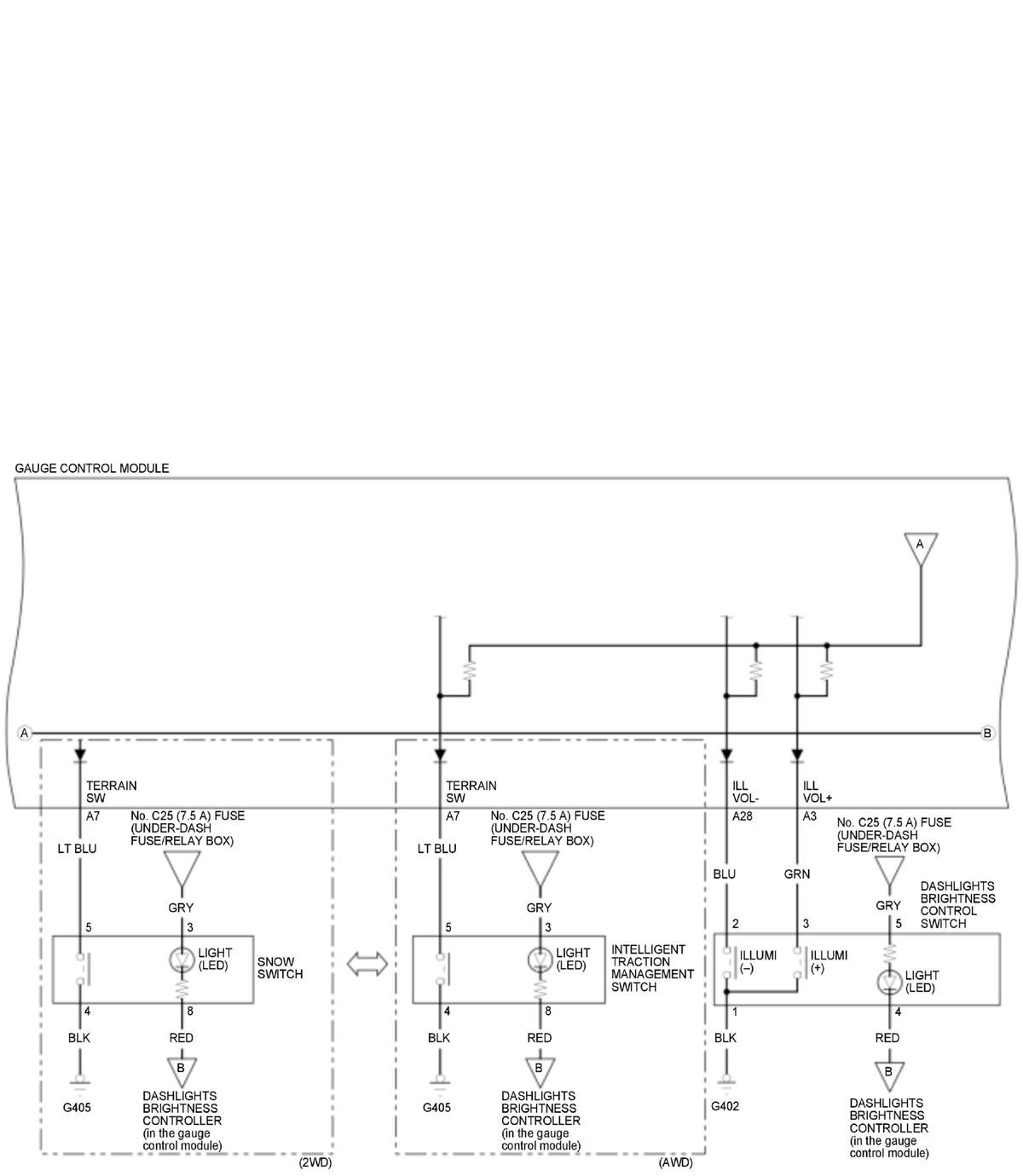

GHH371180Courtesy of HONDA, U.S.A., INC.

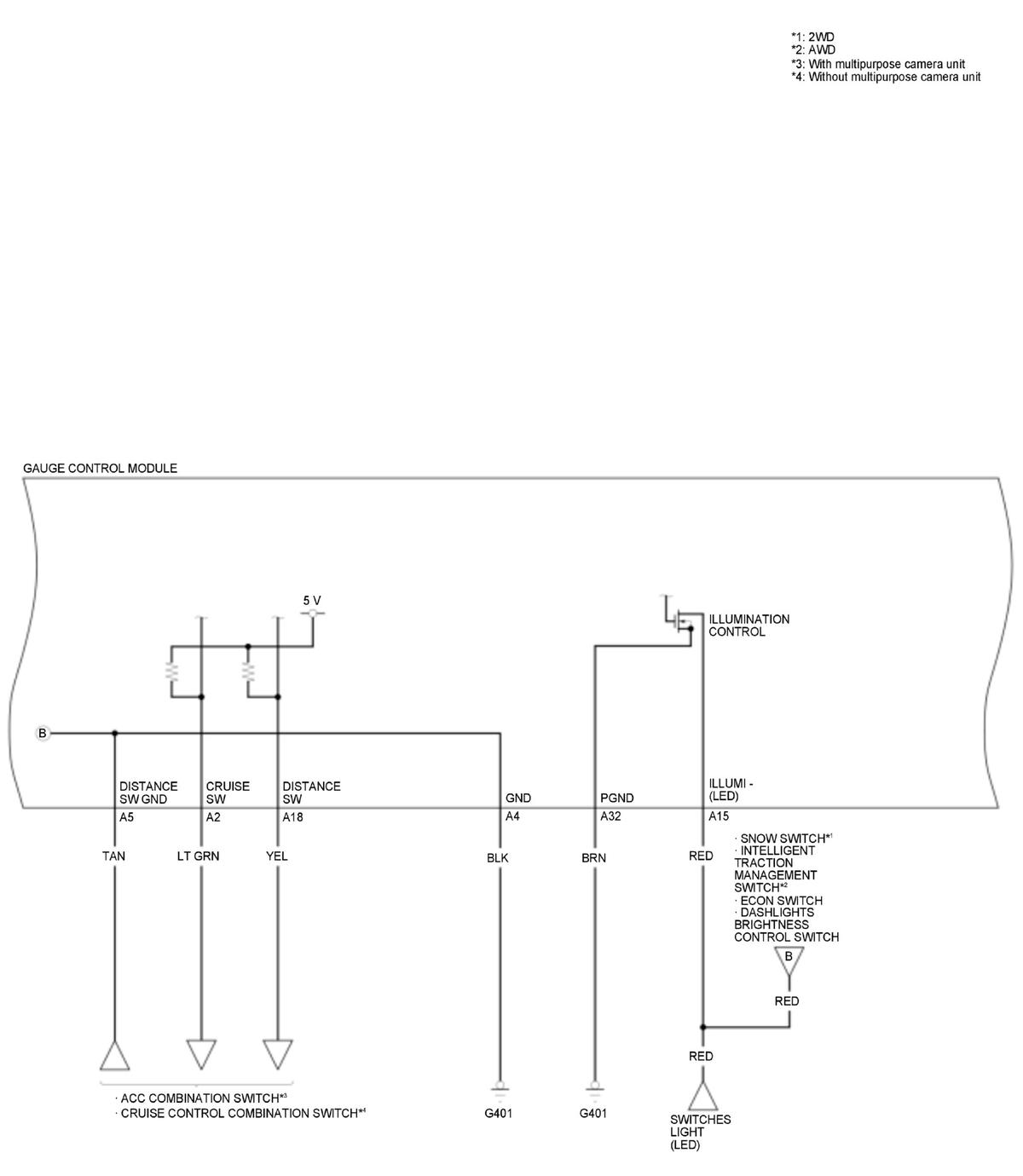

GHH371181Courtesy of HONDA, U.S.A., INC.

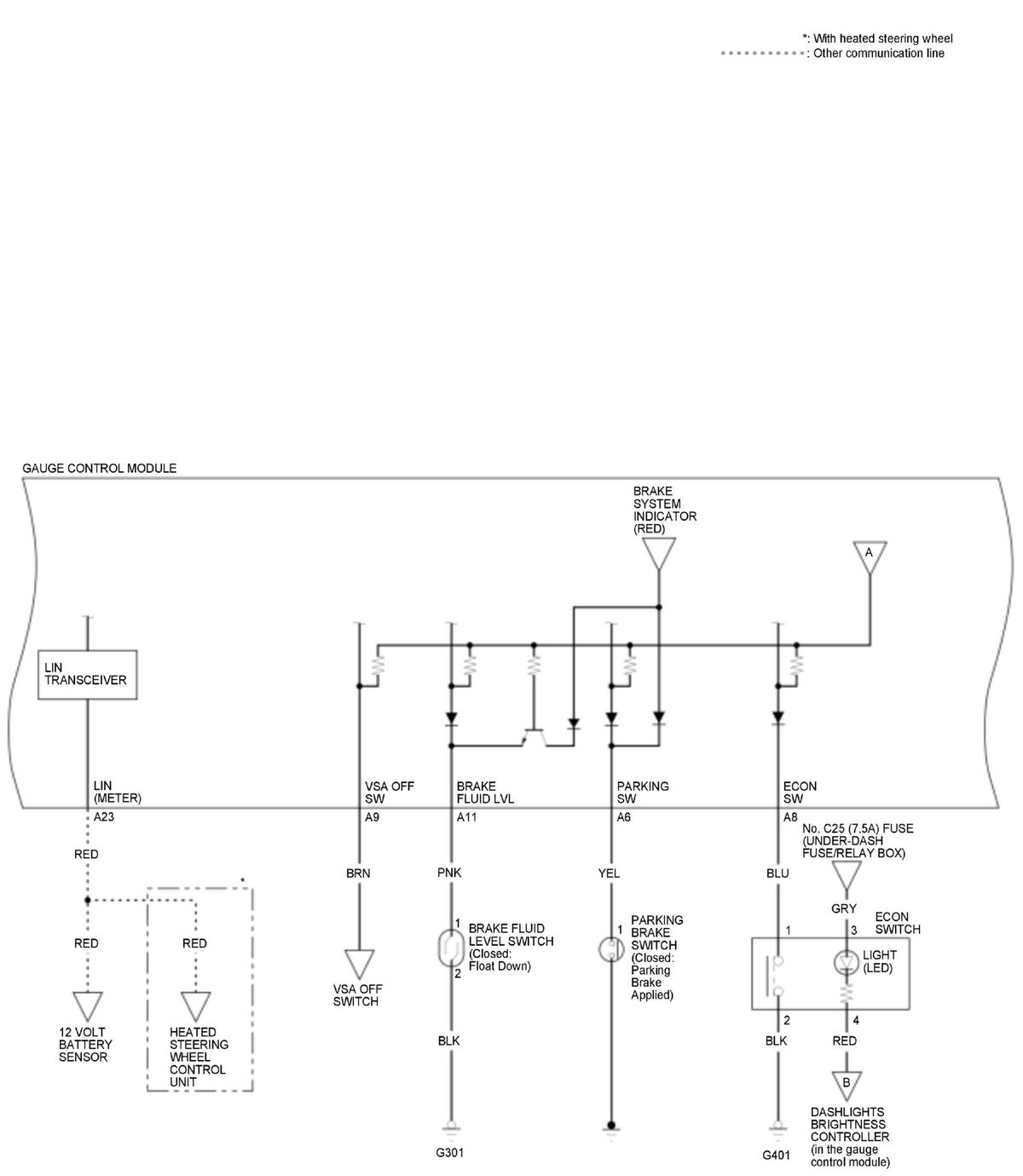

GHH371182Courtesy of HONDA, U.S.A., INC.

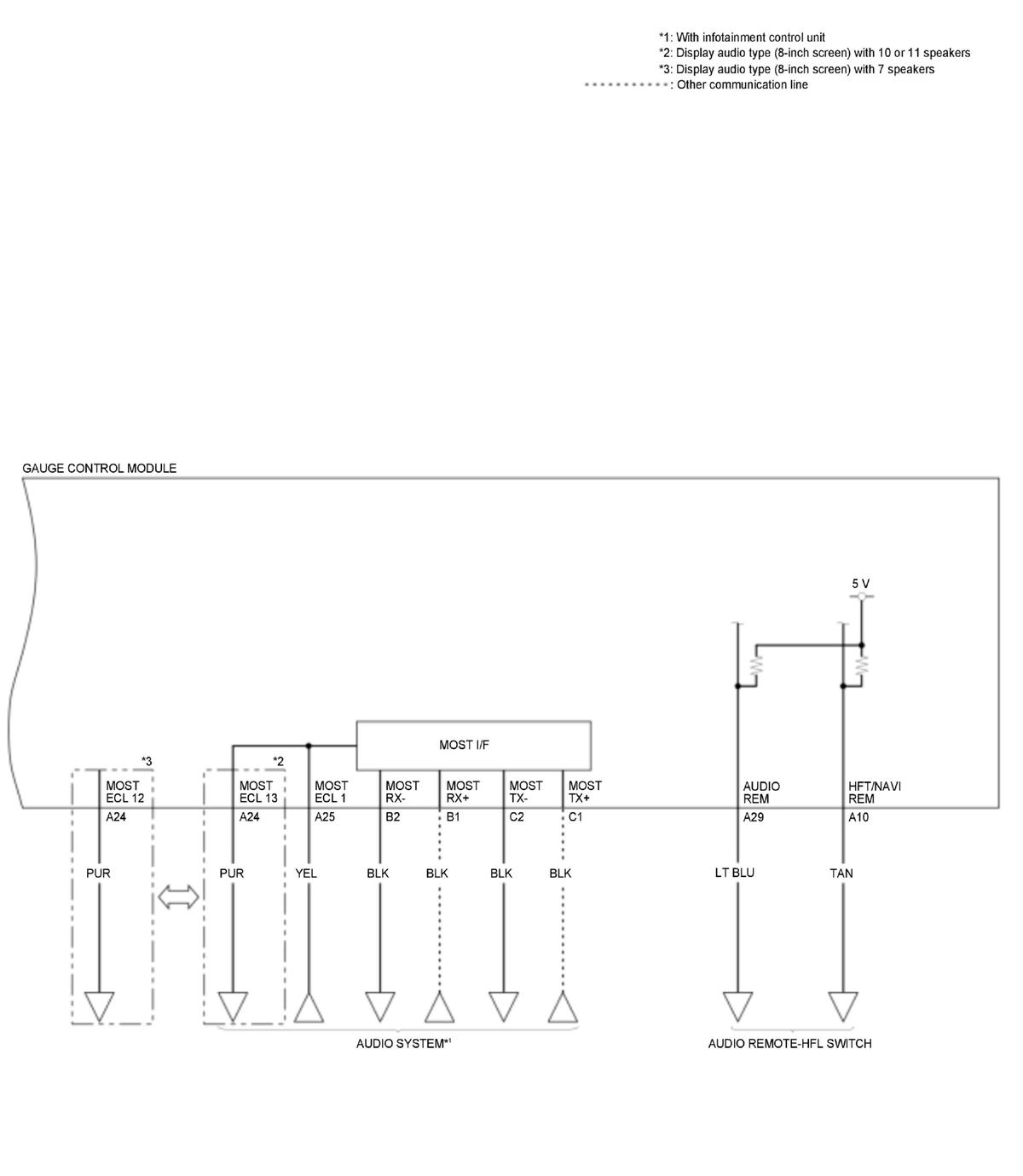

GHH371183Courtesy of HONDA, U.S.A., INC.
