BSI Radar Unit Connector for Inputs and Outputs

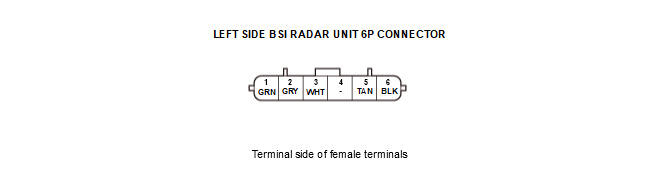

Left Side BSI Radar Unit 6P Connector Inputs and Outputs
| Terminalnumber | Terminal name | Description | Signal |
| 1 | IG1 METER (DC/DC) | Detects ignition signal | Vehicle in ON mode: Battery voltage Vehicle in OFF mode: About 0 V |
| 2 | DR BSI IND+ | Drives the left BSI alert indicator | --- |
| 3 | B-CAN_H | B-CAN communication (high) circuit | --- |
| 4 | Not used | --- | --- |
| 5 | B-CAN_L | B-CAN communication (low) circuit | --- |
| 6 | GND | Ground circuit for the BSI radar unit | Less than 0.2 V at all times |

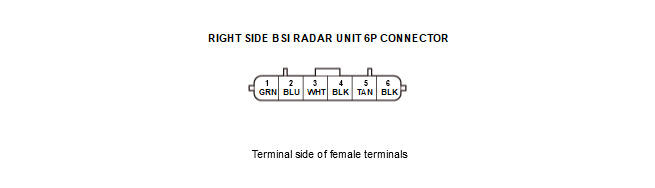

Right Side BSI Radar Unit 6P Connector Inputs and Outputs
| Terminalnumber | Terminal name | Description | Signal |
| 1 | IG1 METER (DC/DC) | Detects ignition signal | Vehicle in ON mode: Battery voltage Vehicle in OFF mode: About 0 V |
| 2 | AS BSI IND+ | Drives the right BSI alert indicator | --- |
| 3 | B-CAN_H | B-CAN communication (high) circuit | --- |
| 4 | GND | Ground circuit for the BSI radar unit | Less than 0.2 V at all times |
| 5 | B-CAN_L | B-CAN communication (low) circuit | --- |
| 6 | GND | Ground circuit for the BSI radar unit | Less than 0.2 V at all times |
